2006 Dodge and Ram Sprinter 2500 L5-2.7L DSL TurboFACTORY OEM SERVICE PROCEDURE
Cargo/Dome Lamp Unit
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Insert the tip of a small flat-bladed screwdriver into the notch on one edge of the cargo/dome lamp housing to depress the retainer clip and pull that edge of the lamp away from its mounting location.
3. Pull the cargo/dome lamp unit from its mounting location far enough to access and disconnect the vehicle wire harness from the lamp connector receptacle.
4. Remove the cargo/dome lamp unit from its mounting location.
INSTALLATION
1. Position the cargo/dome lamp unit to its mounting location.
2. Reconnect the vehicle wire harness connector to the cargo/dome lamp connector receptacle.
3. Position the edge of the cargo/dome lamp housing opposite from the retainer clip into the mounting hole.
4. Push firmly and evenly on the notched edge of the cargo/dome lamp housing until the retainer clip latches into place.
5. Reconnect the battery negative cable.
1. Disconnect and isolate the battery negative cable.

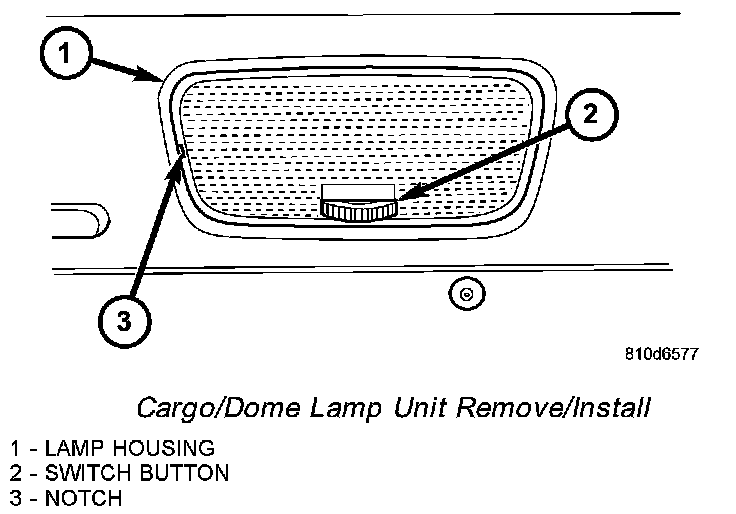

Cargo/Dome Lamp Unit Remove/Install:
2. Insert the tip of a small flat-bladed screwdriver into the notch on one edge of the cargo/dome lamp housing to depress the retainer clip and pull that edge of the lamp away from its mounting location.
3. Pull the cargo/dome lamp unit from its mounting location far enough to access and disconnect the vehicle wire harness from the lamp connector receptacle.
4. Remove the cargo/dome lamp unit from its mounting location.
INSTALLATION
1. Position the cargo/dome lamp unit to its mounting location.
2. Reconnect the vehicle wire harness connector to the cargo/dome lamp connector receptacle.
3. Position the edge of the cargo/dome lamp housing opposite from the retainer clip into the mounting hole.
4. Push firmly and evenly on the notched edge of the cargo/dome lamp housing until the retainer clip latches into place.
5. Reconnect the battery negative cable.
