2006 Dodge and Ram Sprinter 2500 L5-2.7L DSL TurboFACTORY OEM SERVICE PROCEDURE
Sentry Key Remote Entry Module Transponder Ring
SENTRY KEY REMOTE ENTRY MODULE TRANSPONDER RING
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove the steering column shrouds.
4. Unsnap the SKREEM transponder from the ignition cylinder.
5. Remove top cover - cluster.
6. Disconnect the transponder electrical connector from the SKREEM.
7. Maneuver wiring from instrument panel and remove transponder from vehicle.
INSTALLATION
1. Maneuver wiring through instrument panel.
2. Connect the transponder electrical connect or to the SKREEM .
3. Install the top cover - cluster
4. Snap the SKREEM transponder in place around the ignition cylinder.
5. Install the steering column shrouds.
6. Connect the battery negative cable.
7. Verify vehicle and system operation.
8. Close hood.
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove the steering column shrouds.

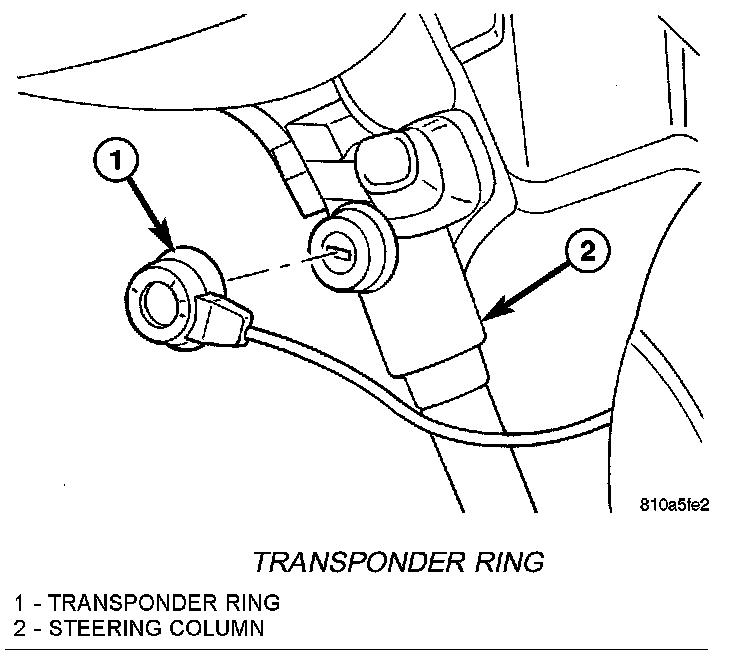

Transponder Ring:
4. Unsnap the SKREEM transponder from the ignition cylinder.
5. Remove top cover - cluster.
6. Disconnect the transponder electrical connector from the SKREEM.
7. Maneuver wiring from instrument panel and remove transponder from vehicle.
INSTALLATION
1. Maneuver wiring through instrument panel.
2. Connect the transponder electrical connect or to the SKREEM .
3. Install the top cover - cluster
4. Snap the SKREEM transponder in place around the ignition cylinder.
5. Install the steering column shrouds.
6. Connect the battery negative cable.
7. Verify vehicle and system operation.
8. Close hood.
