2006 Dodge and Ram Sprinter 2500 L5-2.7L DSL TurboFACTORY OEM SERVICE PROCEDURE
Sentry Key Remote Entry Module
SENTRY KEY REMOTE ENTRY MODULE
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove top cover - cluster.
4. Disconnect the one electrical connector to the SKREEM which is the transponder ring connector.
5. Pull SKREEM straight out of rear of instrument cluster and remove from vehicle.
INSTALLATION
1. Push SKREEM straight into the rear of instrument cluster.
2. Connect the one electrical connector to the SKREEM .
3. Install the top cover - cluster.
4. Connect the battery negative cable.
5. Verify vehicle and system operation.
6. Close hood.
REMOVAL
1. Open hood, disconnect and isolate the battery negative cable.
2. Wait two minutes for the system reserve capacitor to discharge before beginning any system or component service.
3. Remove top cover - cluster.

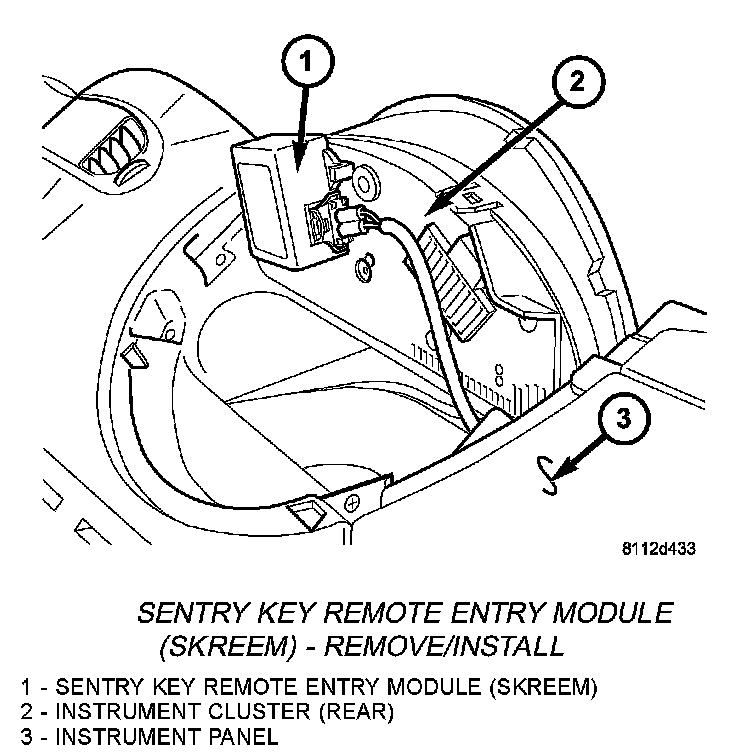

Sentry Key Remote Entry Module (SKreem) - Remove/Install:
4. Disconnect the one electrical connector to the SKREEM which is the transponder ring connector.
5. Pull SKREEM straight out of rear of instrument cluster and remove from vehicle.
INSTALLATION
1. Push SKREEM straight into the rear of instrument cluster.
2. Connect the one electrical connector to the SKREEM .
3. Install the top cover - cluster.
4. Connect the battery negative cable.
5. Verify vehicle and system operation.
6. Close hood.
