2006 Dodge and Ram Magnum SXT, AWDFACTORY OEM SERVICE PROCEDURE

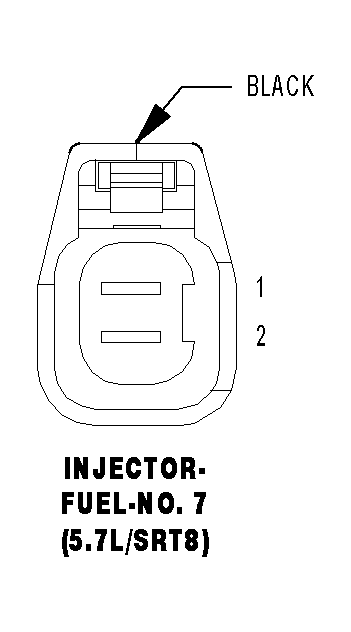

Fuel Injector 7 (5.7L/SRT8) Connector End View

INJECTOR-FUEL-NO. 7 (5.7L/SRT8) - BLACK 2 WAY

GCLX680161Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K26 20BR/YL INJECTOR CONTROL NO. 7
2 K343 16BR/YL FUSED ASD RELAY OUTPUT 2
