2006 Dodge and Ram Magnum SXT, AWDFACTORY OEM SERVICE PROCEDURE

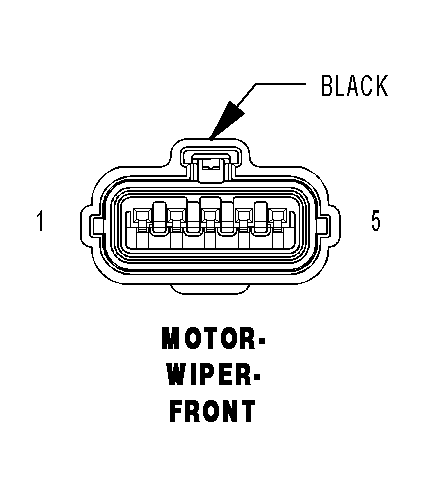

Front Wiper Motor Connector End View
MOTOR-WIPER-FRONT - BLACK 5 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | W4 14BR/OR (LHD) | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 1 | Z902 14BK/LB (RHD) | GROUND |
| 2 | W3 14BR/WT (LHD) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 2 | W7 20BR/GY (RHD) | FRONT WIPER PARK SWITCH SENSE |
| 3 | - | - |
| 4 | W7 20BR/GY (LHD) | FRONT WIPER PARK SWITCH SENSE |
| 4 | W4 14BR/OR (RHD) | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 5 | Z904 14BK/BR (DODGE SRT8) | GROUND |
| 5 | Z902 14BK/LB (EXCEPT DODGE SRT8) | GROUND |
| 5 | W3 14BR/WT (RHD) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
