2006 Dodge and Ram Magnum SXT, AWDFACTORY OEM SERVICE PROCEDURE

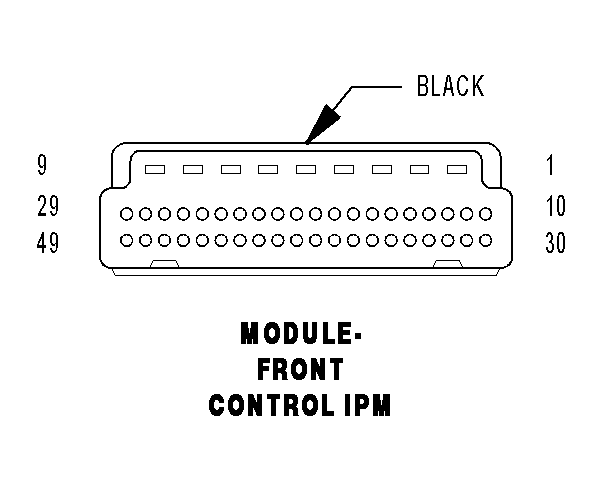

Front Control Ipm Module Connector End View

MODULE-FRONT CONTROL IPM - BLACK 49 WAY

GCLX680254Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 - -
2 A906 FUSED B(+)
3 A902 FUSED B(+)
4 A901 FUSED B(+)
5 A903 FUSED B(+)
6 - -
7 L1 BACKUP LAMP FEED
8 - -
9 - -
10 W24 (HID LAMPS) HEADLAMP WASHER RELAY CONTROL
11 W20 (LX49) REAR WASHER PUMP MOTOR CONTROL
12 W10 FRONT WASHER PUMP MOTOR CONTROL
13 F902 IGNITION UNLOCK-RUN-START
14 K361 (DIESEL) PTC NO. 2 RELAY CONTROL
15 X13 FUSED B(+) (I.O.D.)
16 K360 (DIESEL) PTC NO. 1 RELAY CONTROL
17 F202 FUSED IGNITION SWITCH OUTPUT (RUN-START)
18 Z901 GROUND
19 - -
20 - -
21 L239 (EXPORT) REAR FOG LAMP RELAY CONTROL
22 F923 RUN RELAY CONTROL
23 - -
24 - -
25 Z901 GROUND
26 L139 FRONT FOG LAMP RELAY CONTROL
27 W5 WIPER ON/OFF RELAY CONTROL
28 W12 (LX49) REAR WIPER RELAY CONTROL
29 W2 WIPER HIGH/LOW RELAY CONTROL
30 K542 ASD RELAY OUTPUT
31 W7 FRONT WIPER PARK SWITCH SENSE
32 - -
33 Z901 GROUND
34 L62 RIGHT REAR TURN SIGNAL CONTROL
35 C918 A/C PRESSURE SENSOR GROUND
36 - -
37 - -
38 P307 ACCESSORY DELAY RELAY CONTROL
39 N201 RADIATOR FAN CONTROL RELAY CONTROL
40 - -
41 Z901 GROUND
42 - -
43 L63 LEFT REAR TURN SIGNAL CONTROL
44 - -
45 N112 RADIATOR FAN HIGH RELAY CONTROL
46 P201 (EXCEPT MEMORY) ADJUSTABLE PEDALS RELAY CONTROL
47 X4 HORN RELAY CONTROL
48 L177 PARK LAMP RELAY CONTROL
49 K175 (AWD/SRT8/DIESEL) RADIATOR FAN RELAY COIL SIGNAL
