2006 Dodge and Ram Durango 3.7 K, 42RLEFACTORY OEM SERVICE PROCEDURE

Overhead Console Liftgate Switch: Installation

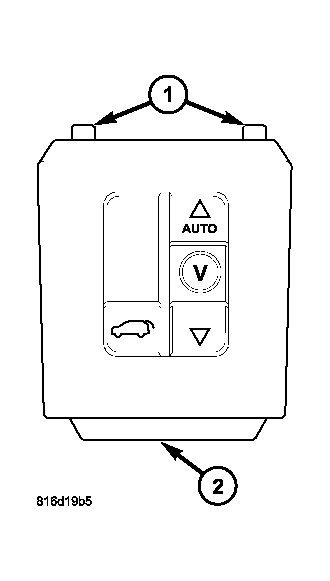

Fig 1: Identifying Power Liftgate Switch
GC0044289Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the power liftgate switch into the overhead console assembly so that the large retaining tab (2) is aligned with the large slot between the reading lamps.

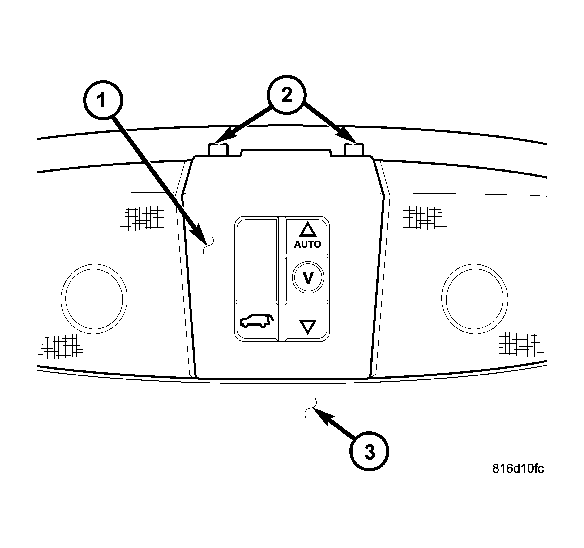

    Fig 2: Identifying Overhead Console Assembly Attachments
    GC0044288Courtesy of DAIMLERCHRYSLER CORP.
  2. Gently press the power liftgate switch (1) into the overhead console assembly (3) until the two small mounting tabs (2) have snapped securely into place.
  3. Install the overhead console assembly (3), (Refer to ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION) .
  4. Connect the battery negative cable.
  5. Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes.
  6. Verify power liftgate system operation. Cycle the power liftgate through one complete open and close cycle, this will allow the power liftgate control module to relearn its cycle with the new components.
