2006 Dodge and Ram Charger SEFACTORY OEM SERVICE PROCEDURE

Audio System (Service Information): Module-Antenna: Removal: Sedan

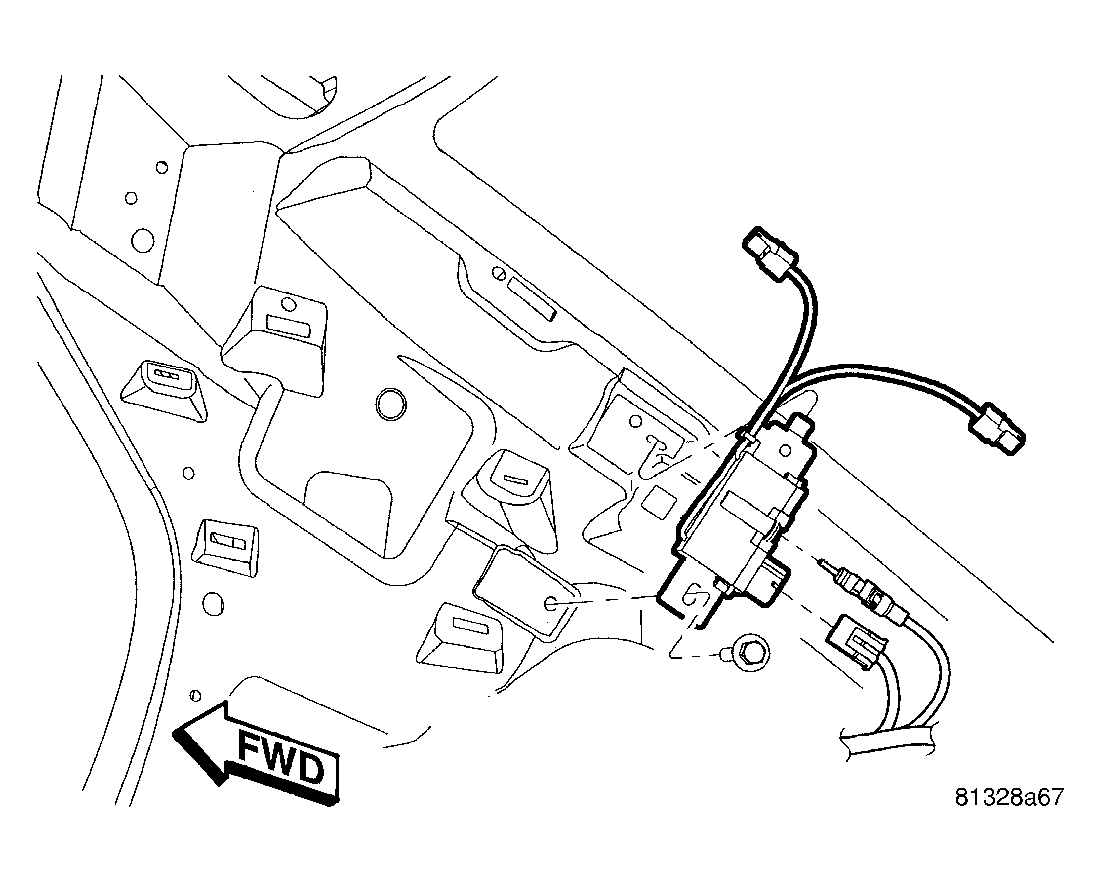

Fig 1: Wire Harness Connectors And Antenna Cable

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove C-pillar upper trim.
Disconnect wire harness connectors and antenna cable.
Remove mounting fasteners and antenna module.
