Side Impact Airbag Control Module: Description

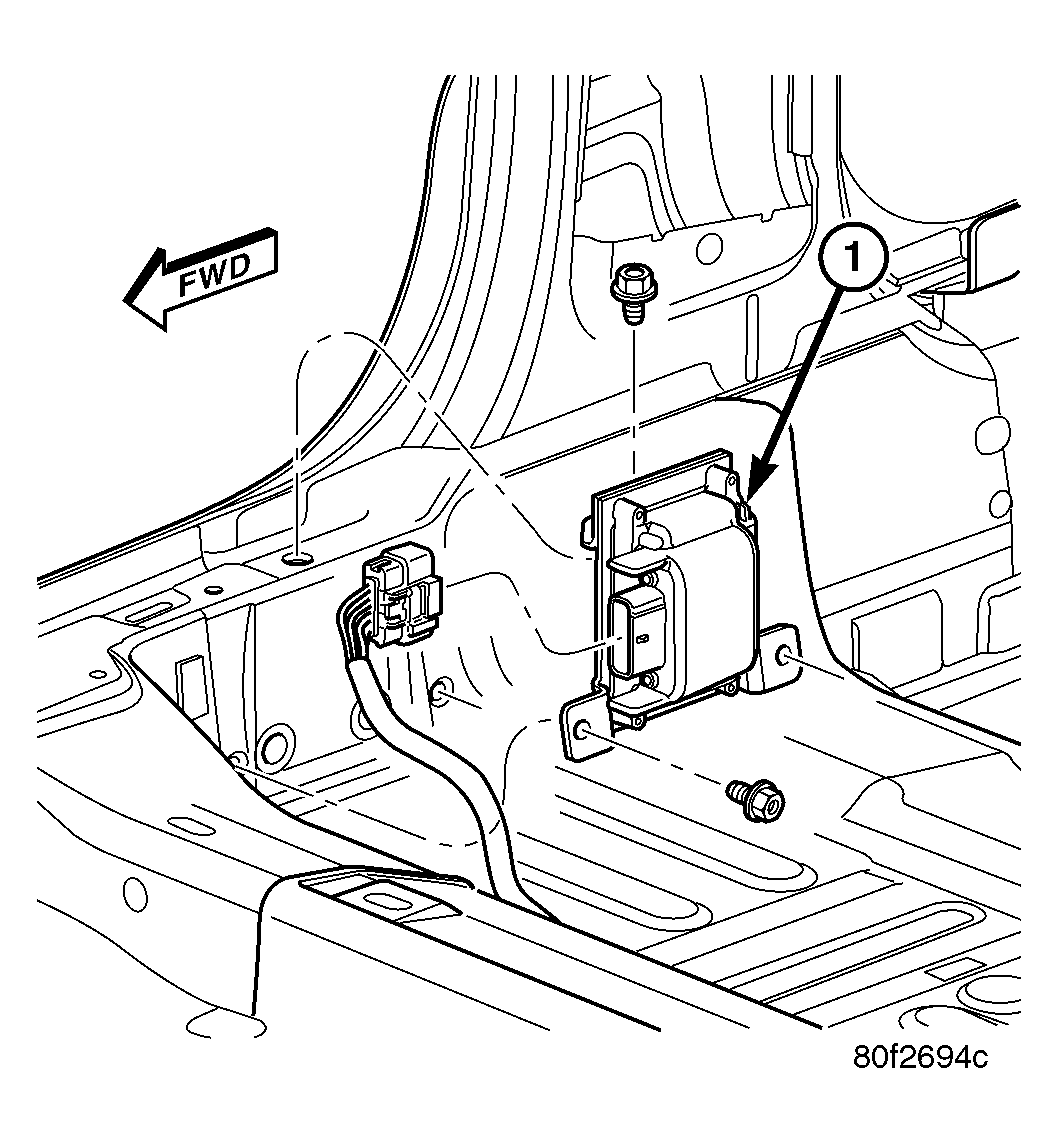

| 1 - SIDE IMPACT AIRBAG CONTROL MODULE (SIACM) |
Vehicles equipped with side airbags use two Side Impact Airbag Control Modules (SIACM's). One is located on each side of the vehicle just in front of the body B-pillar inboard of the door entry sill, covered by the door sill trim. See Fig 1.
