2005 Dodge and Ram Magnum R/T, AWDFACTORY OEM SERVICE PROCEDURE

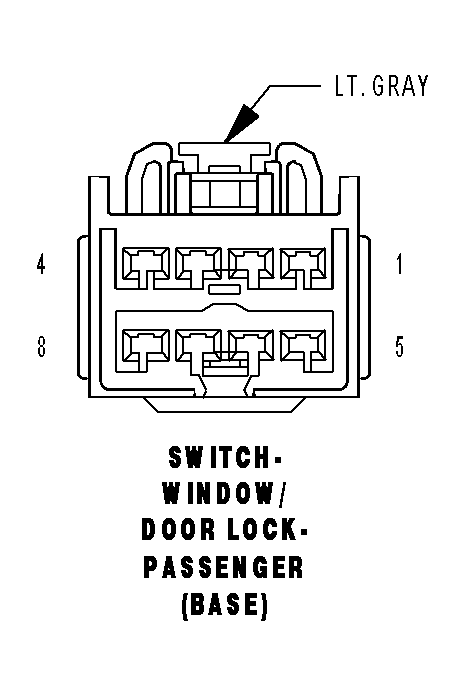

Passenger Window Switch/Door Lock Switch (Base) Connector End View
SWITCH-WINDOW/DOOR LOCK-PASSENGER (BASE) - LT. GRAY 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q26 14OR/GY | MASTER WINDOW SWITCH PASSENGER DOWN |
| 2 | Q22 16OR/VT | PASSENGER WINDOW DRIVER DOWN |
| 3 | Q12 16OR/BR | PASSENGER WINDOW DRIVER UP |
| 4 | Q15 14OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
| 5 | F881 14PK | FUSED ACCESSORY DELAY RELAY OUTPUT |
| 6 | G160 20VT/LG | PASSENGER DOOR LOCK SWITCH MUX |
| 7 | P37 20LG/TN | PASSENGER DOOR LOCK SWITCH RETURN |
| 8 | Q16 14OR/TN | MASTER WINDOW SWITCH PASSENGER UP |
