2005 Dodge and Ram Magnum R/T, AWDFACTORY OEM SERVICE PROCEDURE

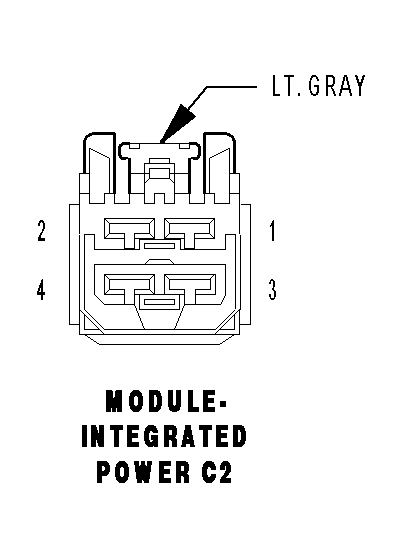

Integrated Power Module Connector End View (C2)

MODULE-INTEGRATED POWER C2 - LT. GRAY 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	N24 12DG/DB	RADIATOR FAN CONTROL RELAY OUTPUT
2	Z901 12BK/DG	GROUND
3	N210 12DB/DG	RADIATOR FAN HIGH/LOW CONTROL FEED
4	N23 10DB/DG	RADIATOR FAN HIGH RELAY OUTPUT
