2005 Dodge and Ram Magnum R/T, AWDFACTORY OEM SERVICE PROCEDURE

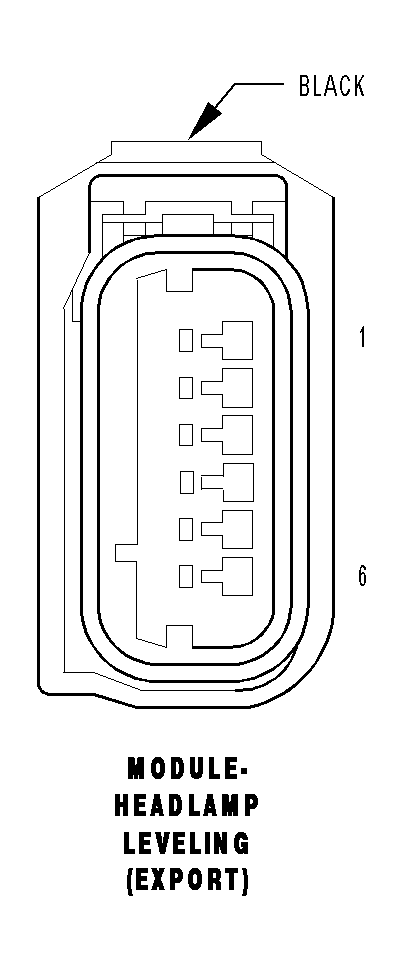

Headlamp Leveling Module (Export) Connector End View

MODULE-HEADLAMP LEVELING (EXPORT) - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F500 20DG/PK	FUSED RUN RELAY OUTPUT
2	D205 20WT/DB	SCI RECEIVE (LEFT HID LAMP)
3	Z901 20BK/DG	GROUND
4	D55 20WT/OR	CAN B BUS (+)
5	D211 20WT/RD	SCI RECEIVE (RIGHT HID LAMP)
6	D54 20WT	CAN B BUS (-)
