2005 Dodge and Ram Magnum R/T, AWDFACTORY OEM SERVICE PROCEDURE

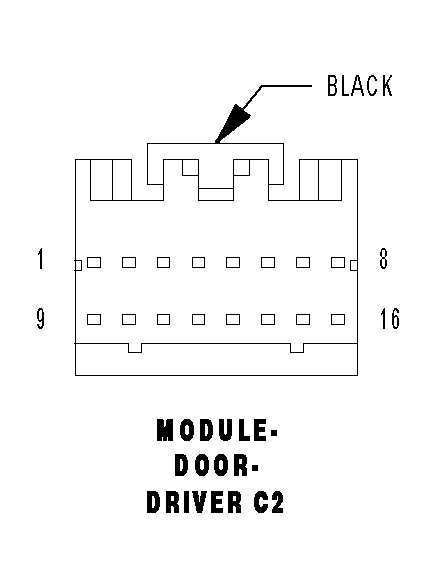

Driver Door Module Connector End View (C2)

MODULE-DOOR-DRIVER C2 - BLACK 16 WAY

GCLX580228Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 - -
2 A913 20RD/GY (EXCEPT MEMORY) FUSED B(+)
3 Z912 18BK/OR (EXCEPT MEMORY) GROUND
4 Q15 18OR/LB WINDOW LOCK OUT SWITCH OUTPUT
5 Q222 20OR/GY PASSENGER WINDOW DRIVER EXPRESS SWITCH MUX
6 - -
7 D54 20WT (EXCEPT MEMORY) CAN B BUS (-)
8 D55 20WT/OR (EXCEPT MEMORY) CAN B BUS (+)
9 - -
10 - -
11 Q221 20GY/OR DRIVER WINDOW DRIVER EXPRESS SWITCH MUX
12 Z421 20BK/BR DRIVER EXPRESS SWITCH RETURN
13 Z405 20BK DRIVER WINDOW HALL SENSOR RETURN
14 Q303 20WT/OR DRIVER WINDOW HALL SENSOR B SIGNAL
15 Q301 20OR/WT DRIVER WINDOW HALL SENSOR A SIGNAL
16 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
