Frame Dimensions

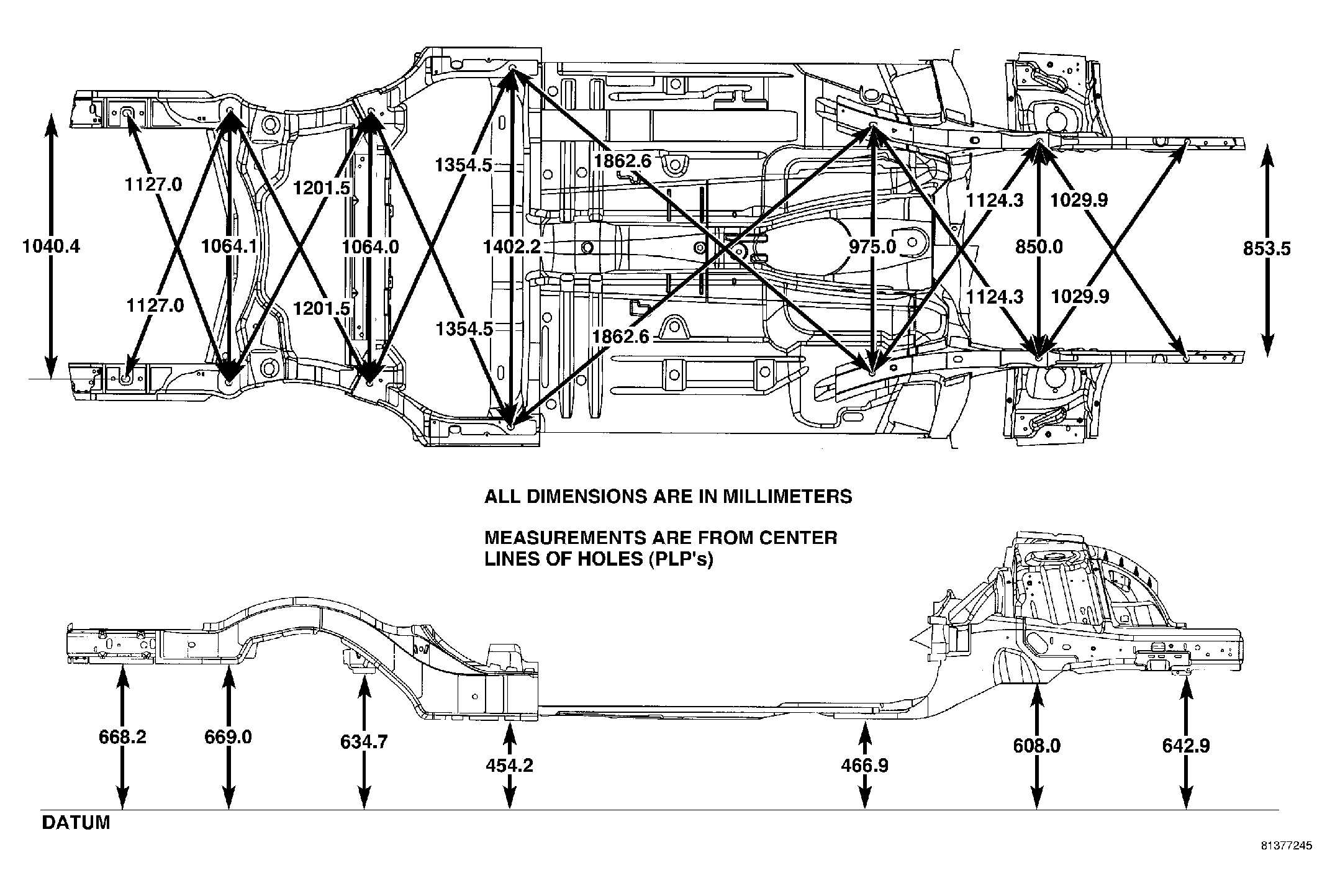

Frame dimensions are listed in metric scale then converted to inch scale listed in parenthesis. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location. Vertical dimensions can be taken from the work surface to the locations indicated.
| DESCRIPTION | FIGURE |
|---|---|
| FRAME DIMENSIONS | Fig 1. |
| ENGINE BOX DIMENSIONS | Fig 2. |
