2005 Dodge and Ram Magnum R/T, AWDFACTORY OEM SERVICE PROCEDURE

Bushing-Rear CROSSMEMBER Front Mount: Removal

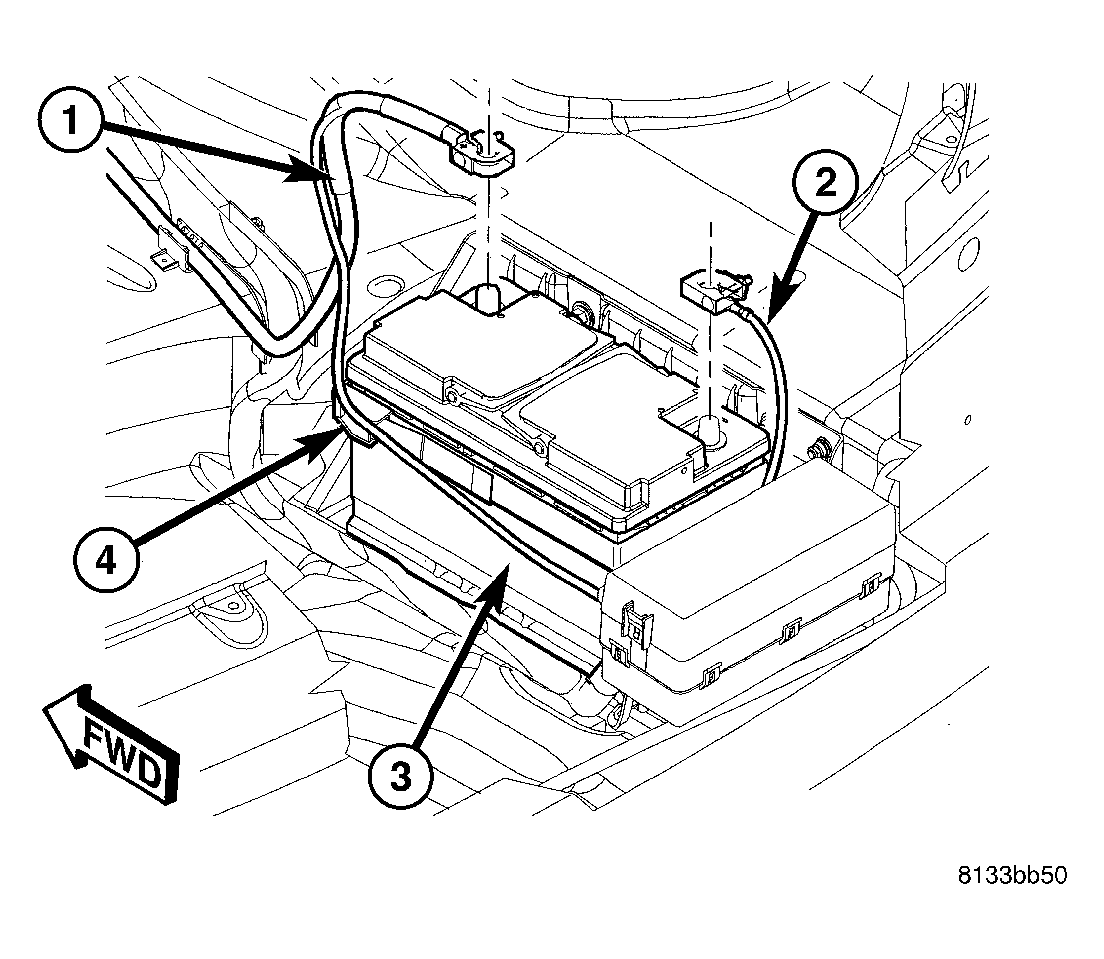

Fig 1: LX BATTERY AND CABLES
GC0012970Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate battery negative cable (2) from battery post.
  2. Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

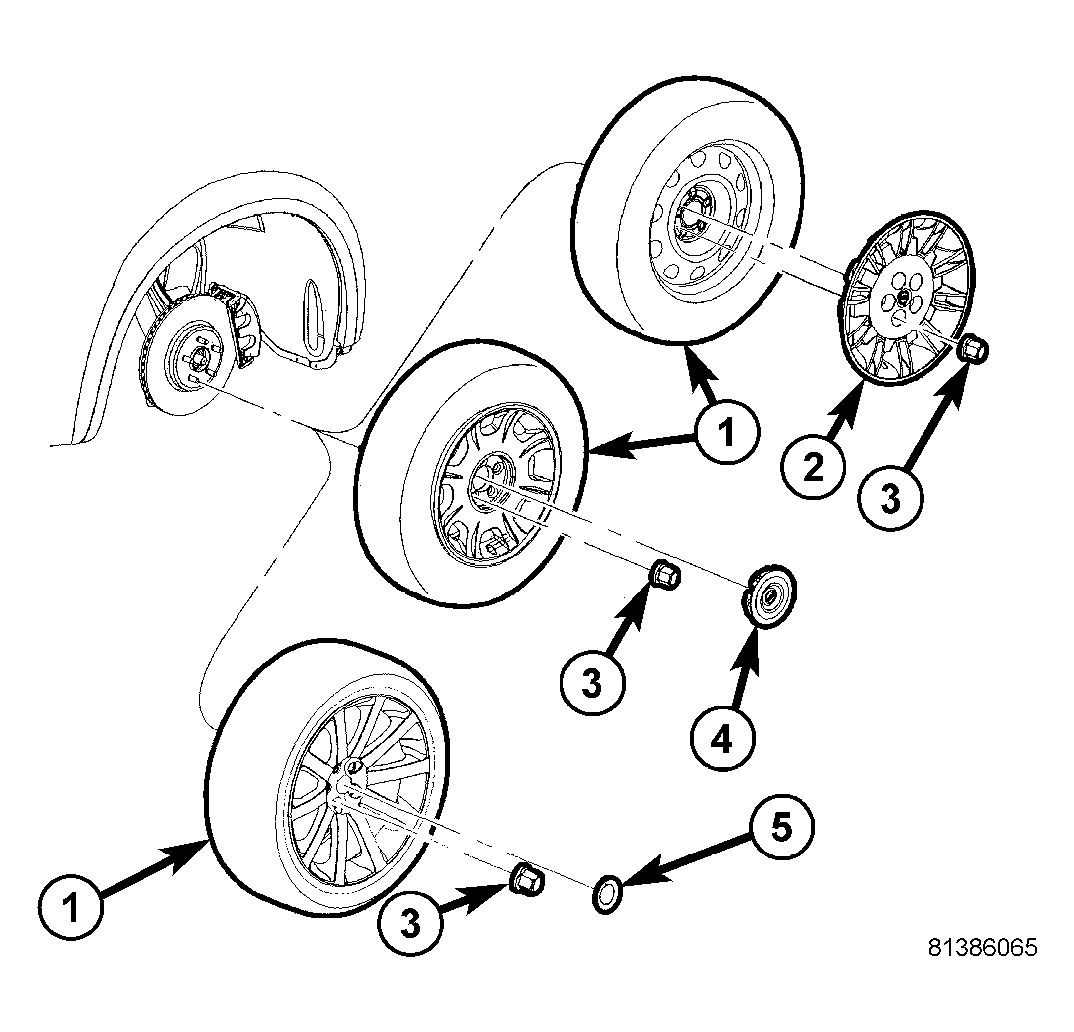

    Fig 2: TIRE AND WHEEL MOUNTING
    GC0012971Courtesy of DAIMLERCHRYSLER CORP.
  3. On each side of vehicle rear, remove wheel mounting nuts (3), then tire and wheel assembly (1).

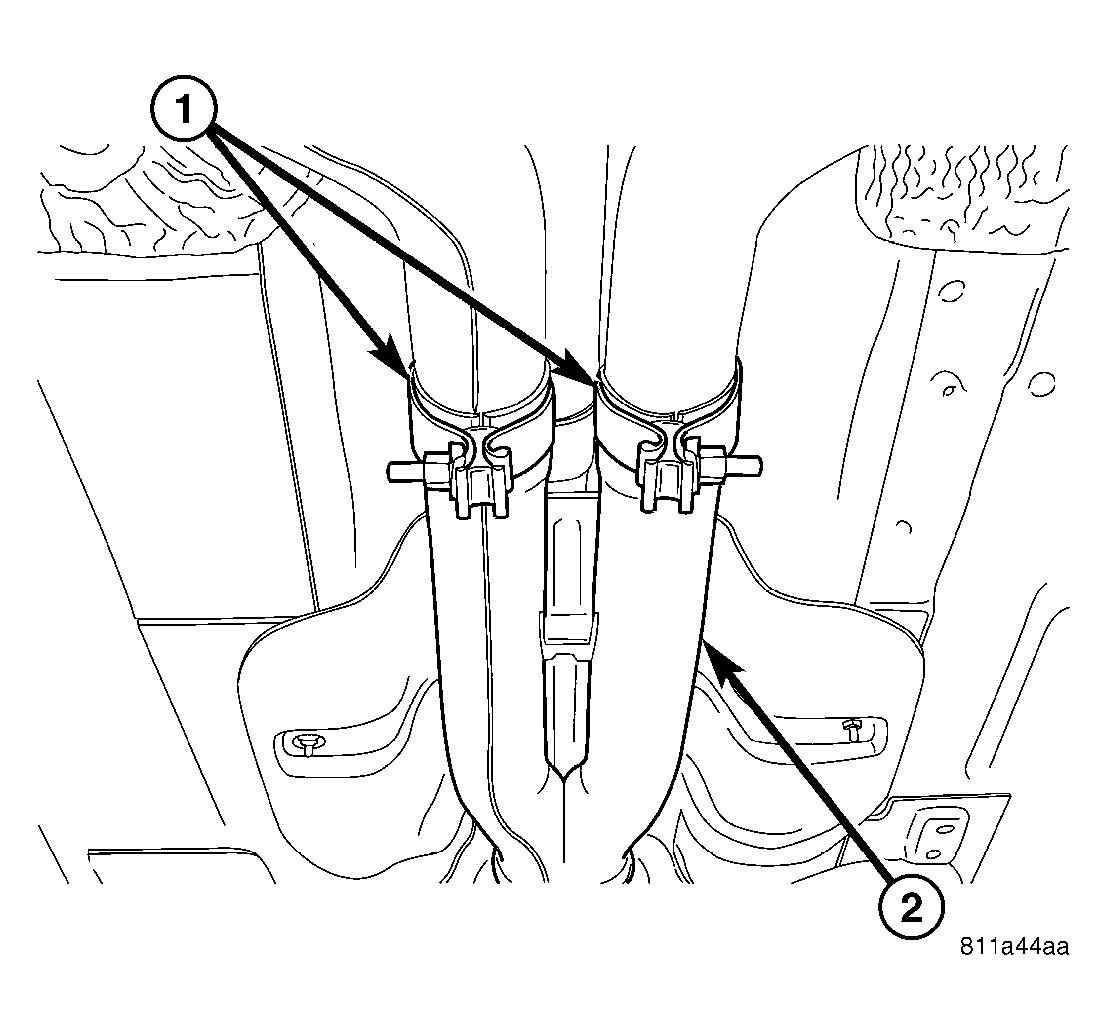

    Fig 3: Exhaust System
    GC0012972Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove rear exhaust system (2) (dual-outlet exhaust shown in Fig 3 ). (Refer to EXHAUST SYSTEM .

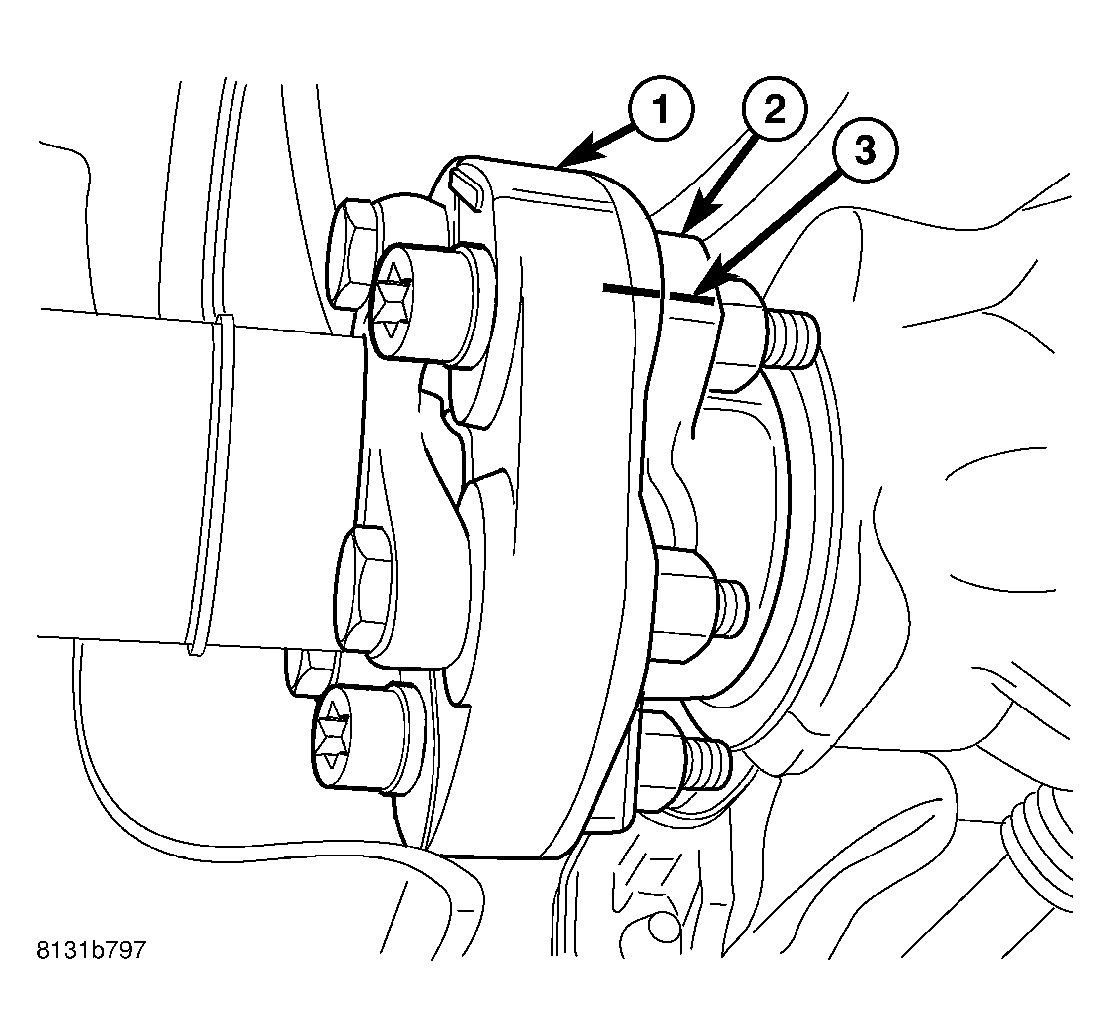

    Fig 4: Alignment Marks - Axle End Shown
    GC0012988Courtesy of DAIMLERCHRYSLER CORP.
  5. Apply alignment index marks (3) to the propeller shaft rubber coupler (1) and axle flange (2).

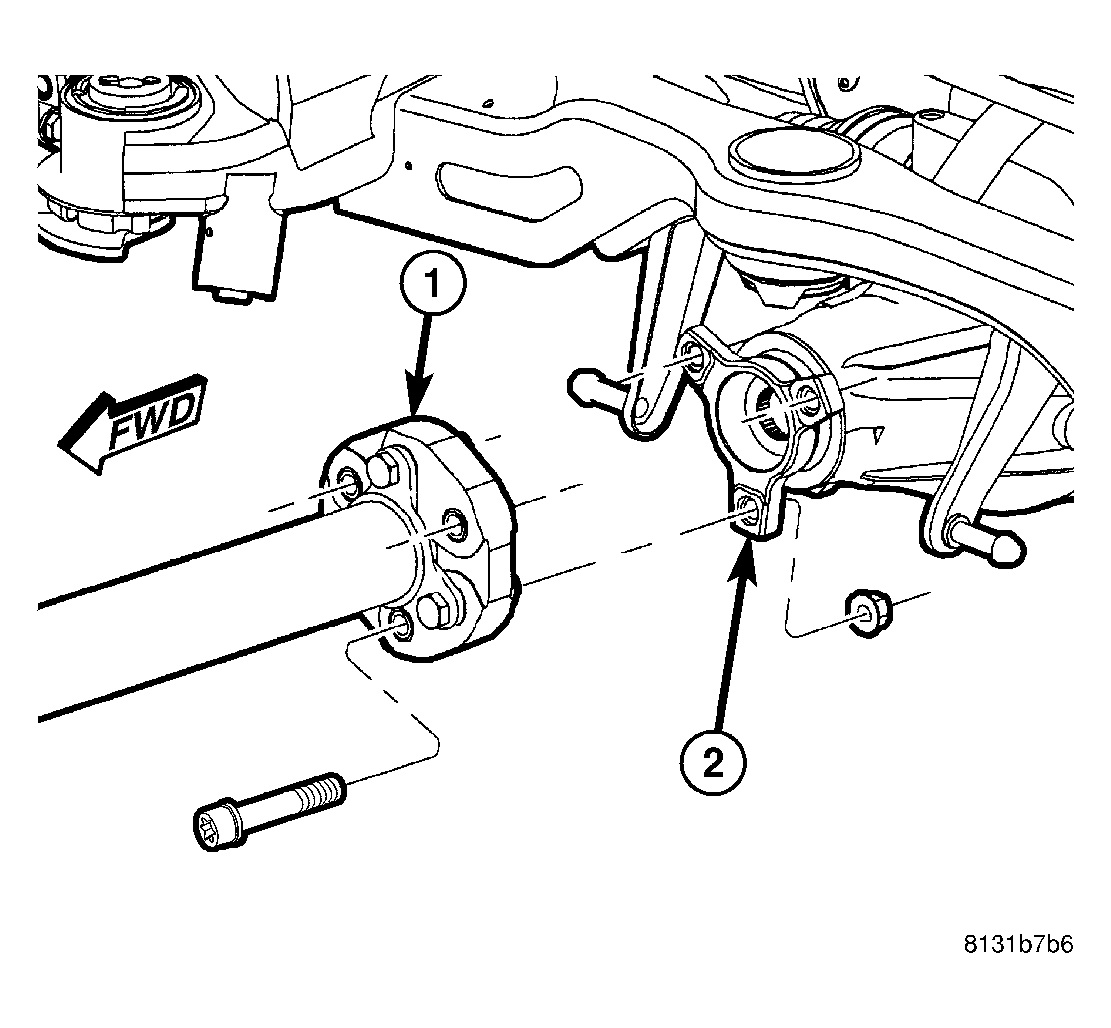

    Fig 5: Propeller Shaft at Rear Axle
    GC0012989Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove three propeller shaft coupler-to-axle flange bolts and nuts.

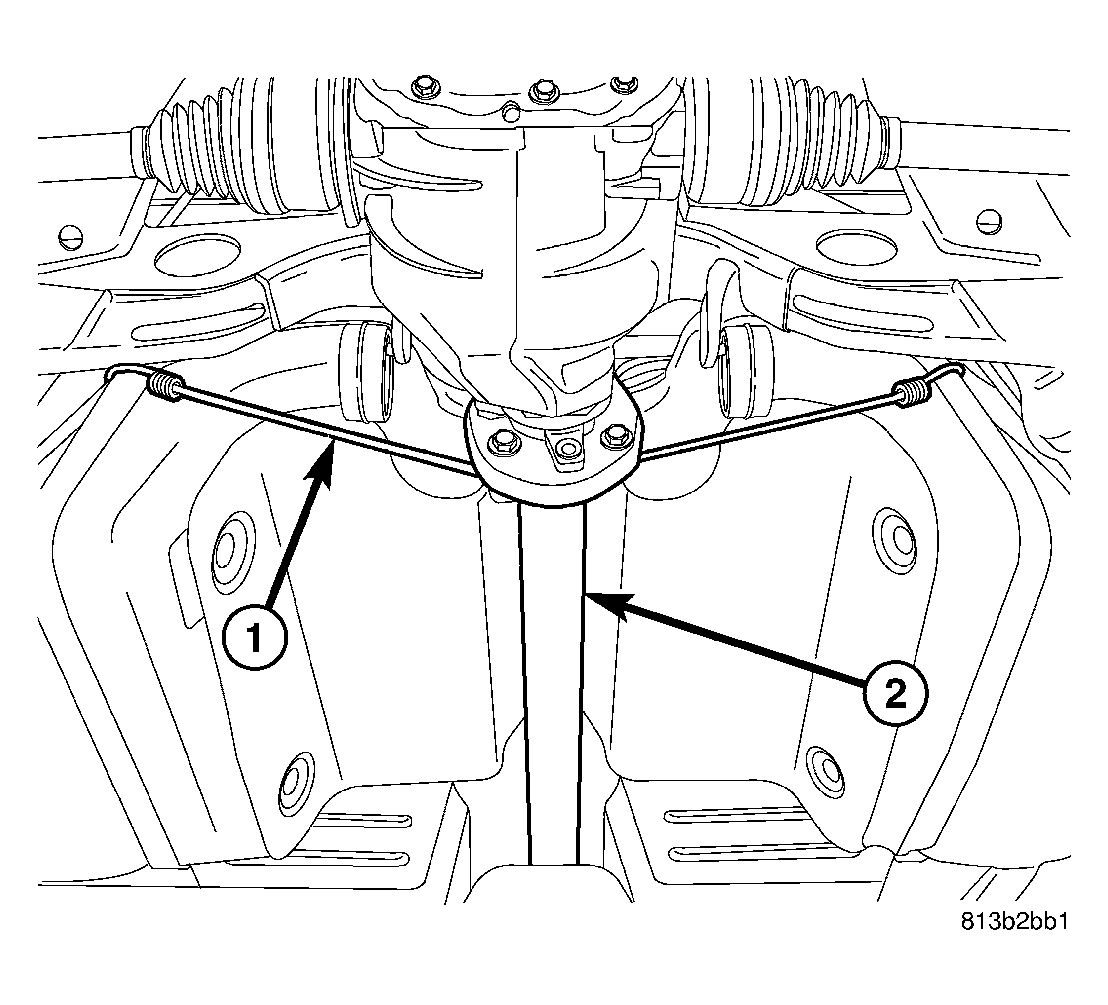

    Fig 6: PROP SHAFT SUPPORT BY BUNGEE CORD
    GC0012987Courtesy of DAIMLERCHRYSLER CORP.
  7. Support propeller shaft (2) using a bungee cord (1). Attach ends of cord to fuel tank straps as shown in Fig 6.

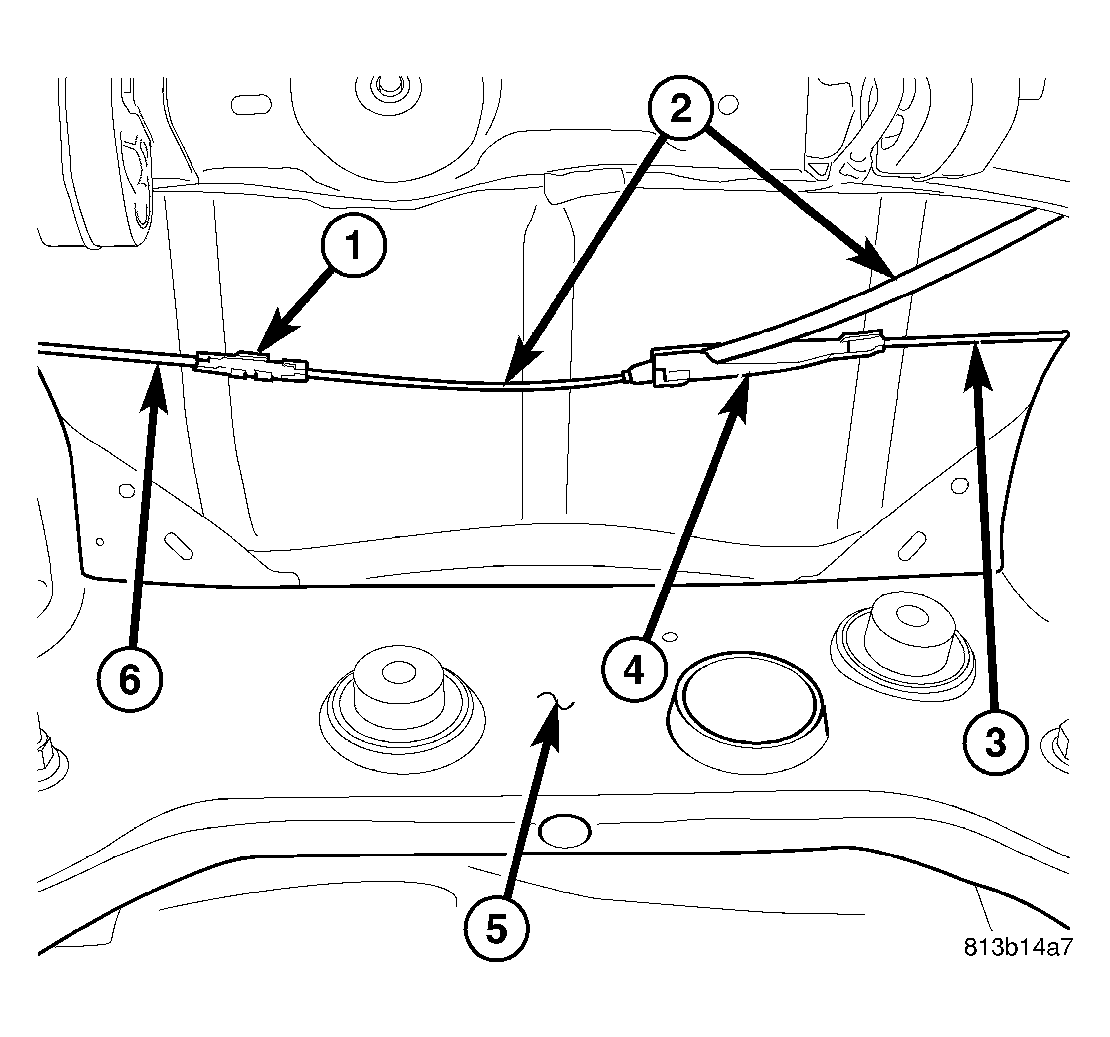

    Fig 7: CABLE CONNECTIONS AT REAR
    GC0012973Courtesy of DAIMLERCHRYSLER CORP.
