Overhead Console - Service Information: Description

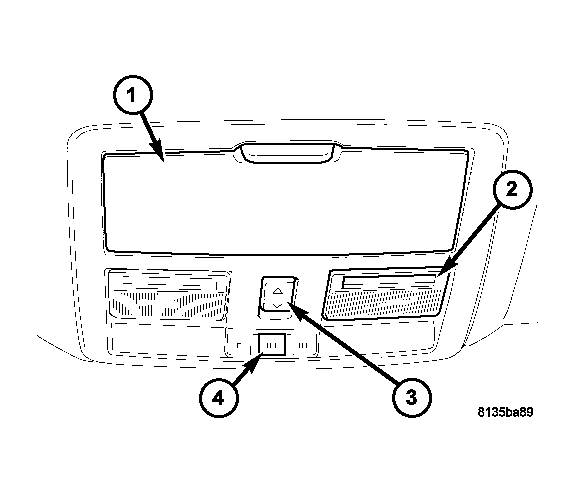

An overhead console is standard on this vehicle and includes the following components:
- Overhead storage compartment (1)
- Front map/reading lamps (2)
- Power sunroof switch (3) - if equipped
- Universal transmitter (4)
- Electronic Overhead Module

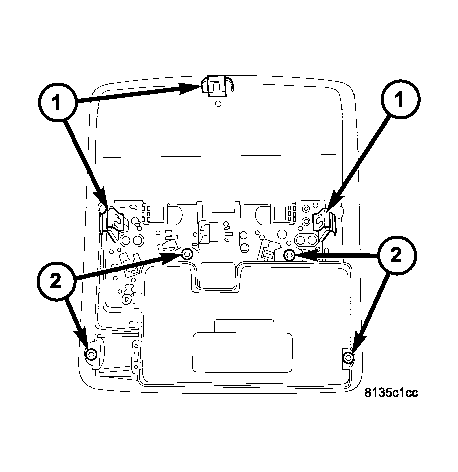

The overhead console assembly is mounted by three snap clips (1) securing it to a molded plastic retainer bracket located above the headliner. The Electronic Overhead Module is secured to the overhead console with screws (2).
