Ignition Coil: Installation

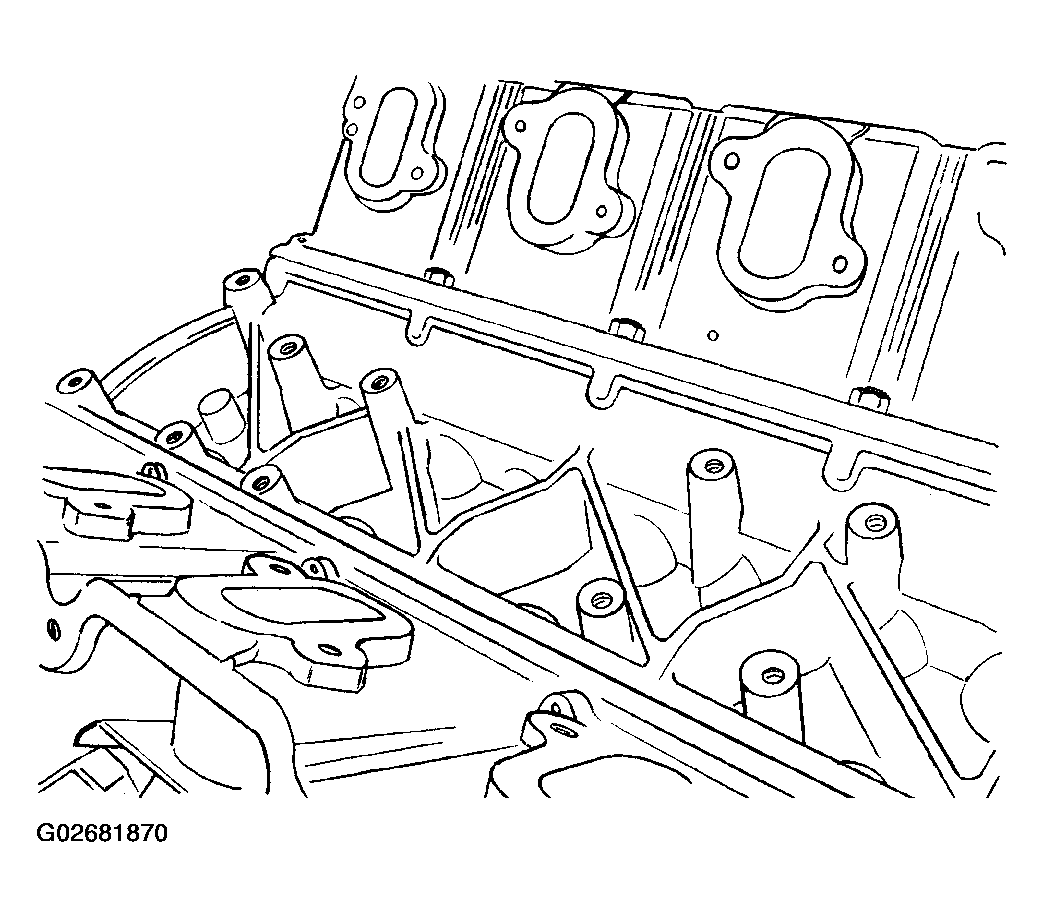

The system uses two epoxy filled coil packs mounted on engine block post (Fig 1 ) under the intake manifold. The rear coil pack, contains 3 separate coils and fires cylinders 1, 2, 3, 4, 6, and 7. The front coil pack, contains 2 individual coils and fires cylinders 5, 8, 9, and 10.
- Install coil packs. Tighten mounting screws to 11 N.m (95 in. lbs.) torque.
- Install ignition cables to ignition coil.
- Connect and lock the electrical connector at the ignition coils (Figure ) and (Figure ).
- Install Intake Manifold, refer to INTAKE MANIFOLD for more information.
- Install Air Cleaner Assembly, refer to AIR INTAKE for more information.
- Connect the negative battery cable.
- Use the DRBIII(R) Scan Tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.
