2000 Dodge and Ram RAM 2500 Van V8-5.2L CNG VIN TFACTORY OEM SERVICE PROCEDURE
Programming and Relearning
WITHOUT VEHICLE THEFT SECURITY SYSTEM
1. Locate the dark green program enable wire connected to the terminal in cavity 1 of the 16-way data link connector under the left side of the instrument panel.
2. Connect the program enable wire terminal to a good ground.
3. Insert the key into the ignition lock cylinder and turn the ignition switch to the ON position. The power locks will cycle (Lock, then Unlock) as feedback.
4. Depress either button on one Remote Keyless Entry (RKE) transmitter. The power locks will cycle as feedback.
5. Depress either button on the second transmitter, if used. The power locks will cycle as feedback.
6. Disconnect the program enable wire terminal from ground.
7. Turn the ignition switch to the OFF position and remove the key.
8. Test the operation of the RKE transmitter(s).
WITH VEHICLE THEFT SECURITY SYSTEM
To program the Remote Keyless Entry (RKE) transmitter access codes into the RKE receiver in the Central Timer Module (CTM) requires the use of a DRB scan tool. Refer to the proper Diagnostic Procedures for more information.

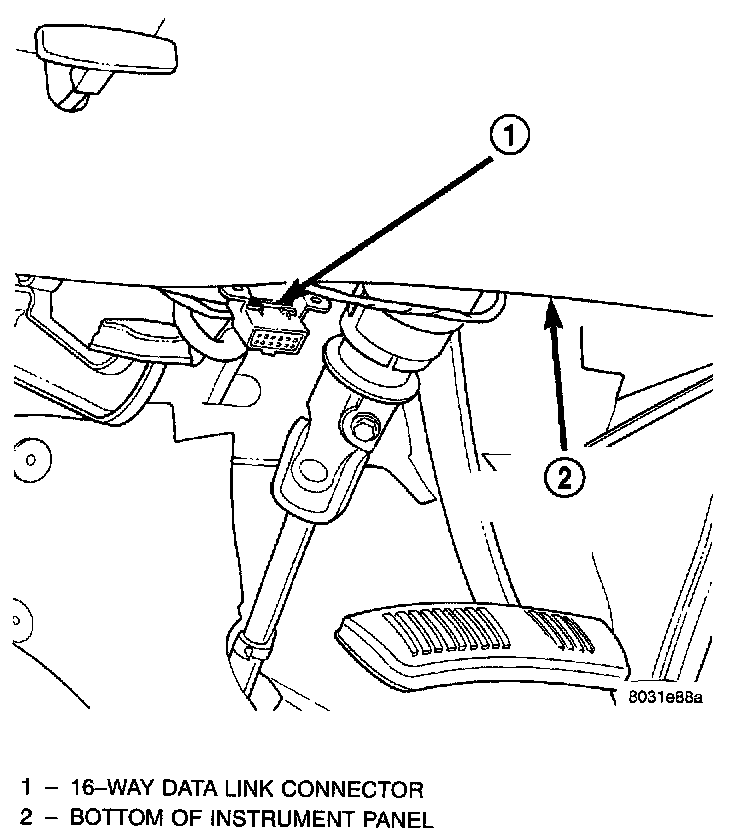

16-Way Data Link Connector - Typical:
1. Locate the dark green program enable wire connected to the terminal in cavity 1 of the 16-way data link connector under the left side of the instrument panel.
2. Connect the program enable wire terminal to a good ground.
3. Insert the key into the ignition lock cylinder and turn the ignition switch to the ON position. The power locks will cycle (Lock, then Unlock) as feedback.
4. Depress either button on one Remote Keyless Entry (RKE) transmitter. The power locks will cycle as feedback.
5. Depress either button on the second transmitter, if used. The power locks will cycle as feedback.
6. Disconnect the program enable wire terminal from ground.
7. Turn the ignition switch to the OFF position and remove the key.
8. Test the operation of the RKE transmitter(s).
WITH VEHICLE THEFT SECURITY SYSTEM
To program the Remote Keyless Entry (RKE) transmitter access codes into the RKE receiver in the Central Timer Module (CTM) requires the use of a DRB scan tool. Refer to the proper Diagnostic Procedures for more information.
