2000 Dodge and Ram Intrepid R/TFACTORY OEM SERVICE PROCEDURE

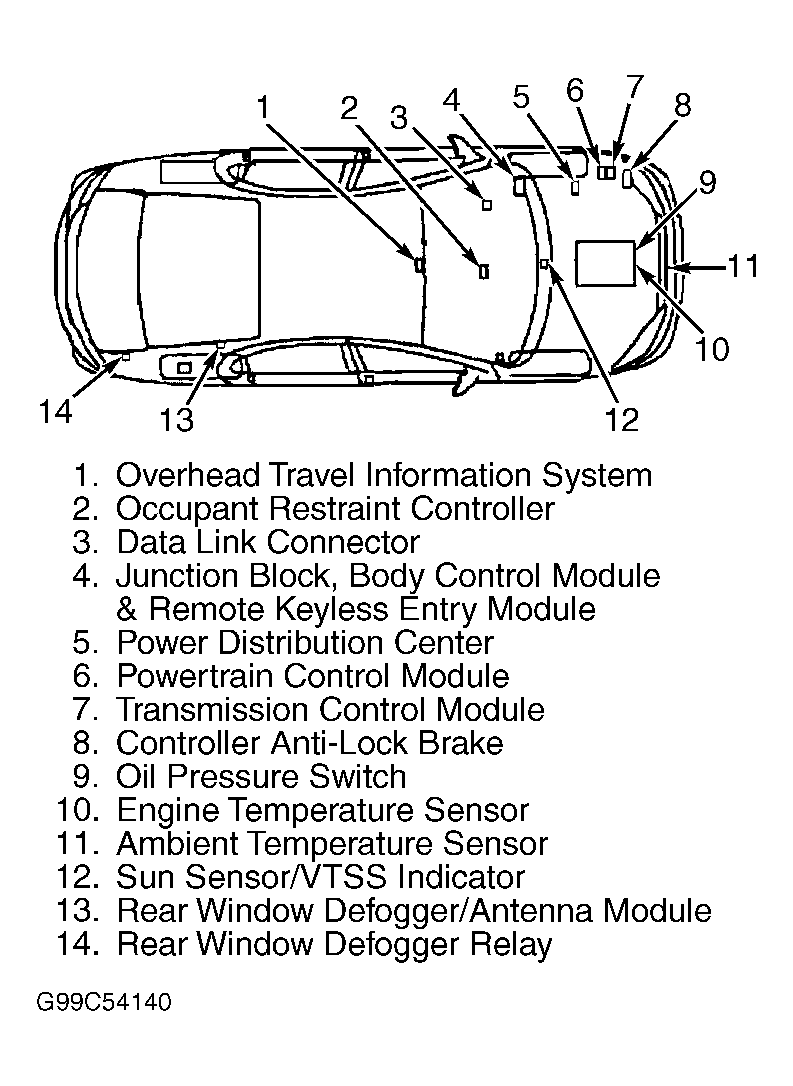

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Ambient Temperature Sensor | In Front Of Radiator |
| Body Control Module (BCM) | On Back Of Junction Block |
| Controller Anti-Lock Brake (CAB) | Next To Washer Reservoir |
| Data Link Connector (DLC) | Under Left Side Of Instrument Panel |
| Decklid Release Switch | Left Side Of Instrument Panel |
| Door Lock Switch | On Appropriate Door Panel |
| Headlight Switch | Left Side Of Instrument Panel |
| Heated Seat Back Heater | Under Seat Cover |
| Heated Seat Cushion Heater | Under Seat Cover |
| Heated Seat Switch | Side Of Seat |
| Ignition Switch | On Steering Column |
| Junction Block | Behind Left Side Of Instrument Panel |
| Left Body Harness Connector C308 | Under Right Side Of Rear Seat |
| Memory Heated Seat/Mirror Module (MHSMM) | Under Driver's Seat |
| Memory Set Switch | On Side Of Drive's Seat |
| Occupant Restraint Controller (ORC) | Behind Center Of Instrument Panel |
| Overhead Travel Information System (OTIS) Module | Front Center Of Headliner |
| Power Distribution Center | Left Side Of Engine Compartment |
| Power Seat Switch | Side Of Seat |
| Powertrain Control Module (PCM) | Left Side Of Engine Compartment |
| Rear Window Defogger Relay | Right Side Of Trunk |
| Remote Keyless Entry Module | On Back Of Junction Block |
| Seat Motor Sensors | On Seat Motors, Under Seat |
| Sentry Key Immobilizer Module (SKIM) | On Steering Column |
| Speed Proportional Steering Solenoid | Under Brake Master Cylinder |
| Sun Sensor/VTSS Indicator | Top Center Of Instrument Panel |
| Transmission Control Module (TCM) | Left Side Of Engine Compartment |
| Traction Control Switch | Left Center Of Instrument Panel |
| Turn Signal/Hazard Switch | On Steering Column |
| Washer Fluid Level Switch | Left Front Corner Of Engine Compartment |
| Washer Pump | Left Front Corner Of Engine Compartment |
| Washer Reservoir | Left Front Corner Of Engine Compartment |
| Wiper/Washer Switch | Part Of Multifunction Switch |
