Spark Plug: Description
Cleaning platinum plugs may damage the platinum center electrode or the thin platinum pad.

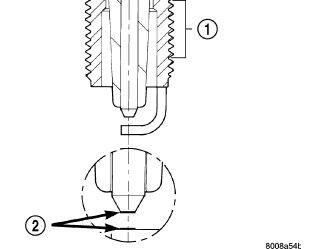

| 1 - APPLY ANTI-SEIZE COMPOUND HERE ONLY |
| 2 - PLATINUM SPARK SURFACE |
The spark plugs are platinum resistor design. They have resistance values of 3, 500 to 20, 000 ohms when checked with at least a 1000 volt tester. For spark plug identification and specifications. Refer to TECHNICAL SPECIFICATIONSÂ .
Do not use an ohm meter to check the resistance of the spark plugs. This will give an inaccurate reading.Â
A thin platinum pad (2) is welded to both or just the center electrode end(s). Extreme care must be used to prevent spark plug cross threading, incorrect gapping and ceramic insulator damage during plug removal and installation.
Mopar® Nickel-Graphite Anti-Seize compound is applied to the thread area (1) to prevent damage to the spark plug during removal and installation.
