Solenoid, Variable Valve Timing: Installation: Left
- Install the Variable Valve Timing Solenoid (VVTS) seals (1). The seals can be reused if not damaged.
- Refer to the markings made at disassembly and install the intake VVTS (4) and the exhaust VVTS (2) in their original locations.
- Install the VVTS. Tighten bolts (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the VVTS wire harness connector (1).
- Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION
.

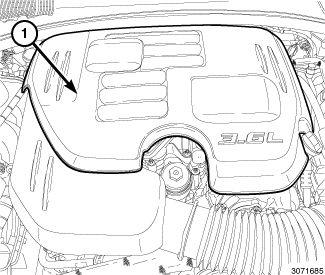

- Install the engine cover (1).
- Connect the negative battery cable.
The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
