2007 Chrysler PT Cruiser Base, 2D Convertible, StandardFACTORY OEM SERVICE PROCEDURE

Ignition Coils

Engines	Coil Manufacturer	Primary Resistance at 21°C-27°C (70°F-80°F)	Secondary Resistance at 21°C-27°C (70°F-80°F)
1.6L	Weastec	0.45 to 0.65 Ohms	11,500 to 14,700 Ohms
2.0/2.4L	Toyodenso/Diamond	0.45 to 0.65 Ohms	11,500 to 14,700 Ohms

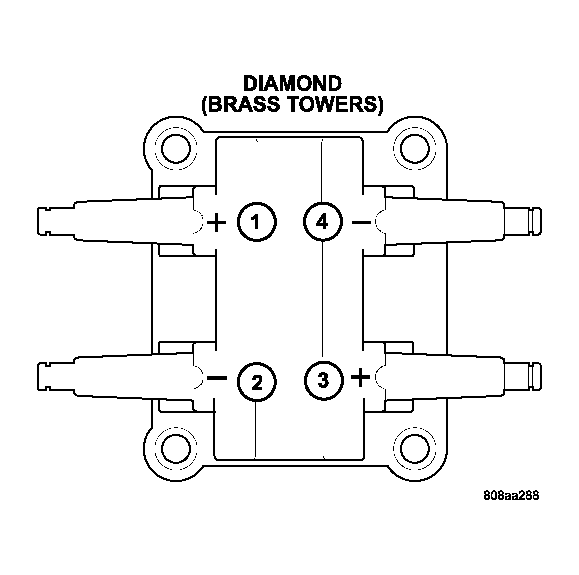

Fig 1: Coil Polarity - 1.6L

Courtesy of CHRYSLER LLC
