2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

Coil Spring

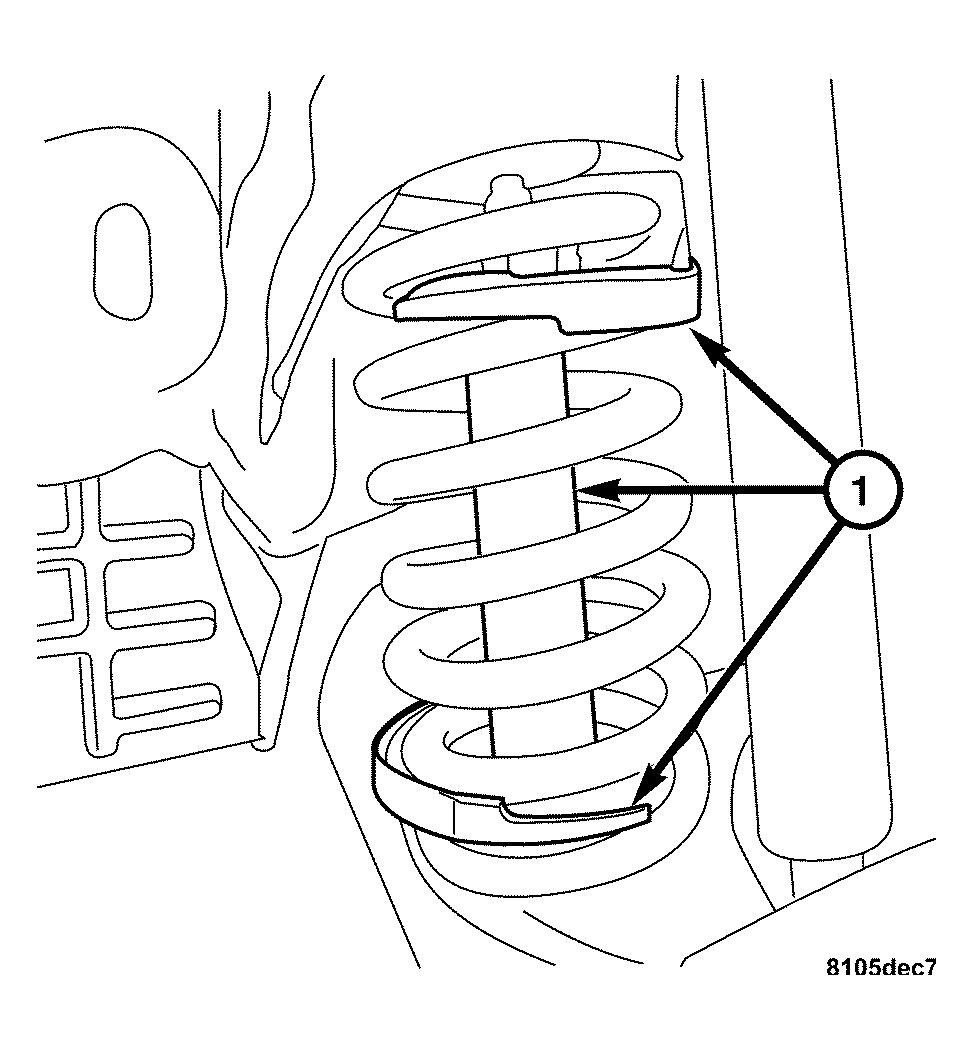

Fig 1: Compressing Front Spring
GC0033649Courtesy of CHRYSLER LLC
  1. Install the compressed front spring (1) with the rubber mount to the vehicle.

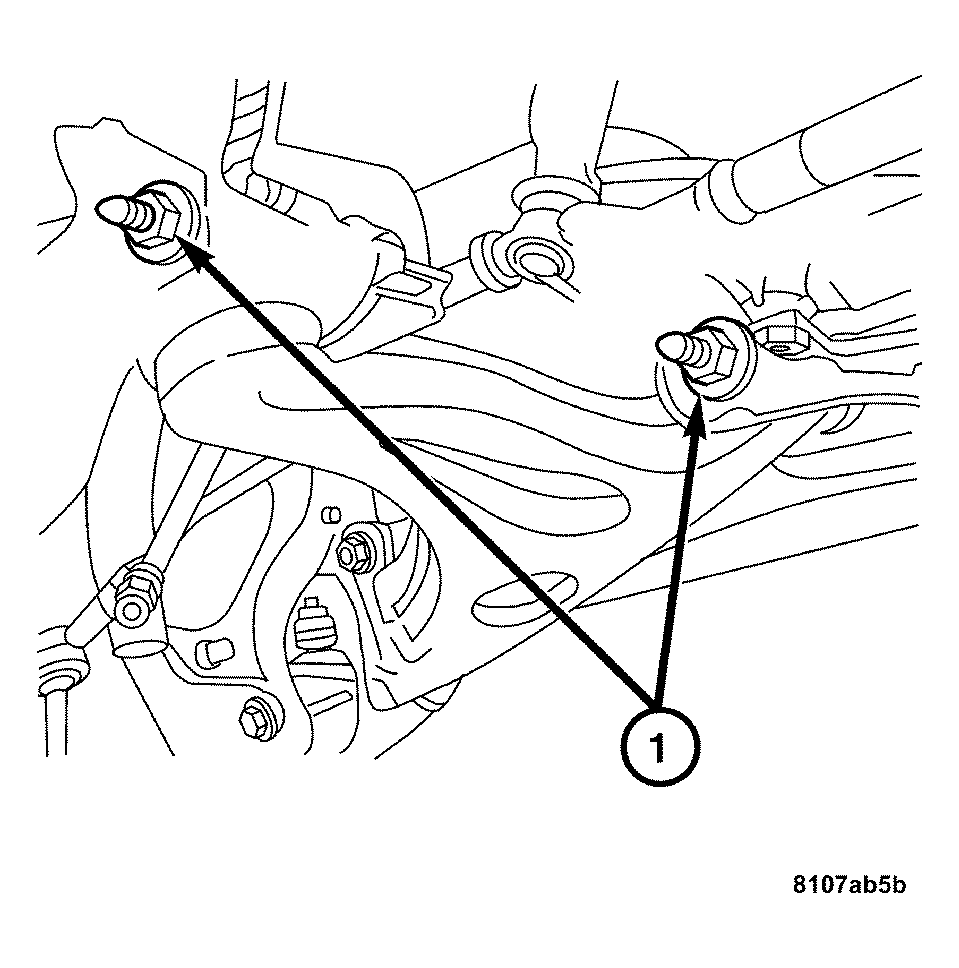

    Fig 2: Locating Bolts Attaching Lower Control Arm To Frame
    GC0033651Courtesy of CHRYSLER LLC
  2. Swing the lower control arm up to its mounting position and install the bolts and nuts (1).
    NOTE: To avoid suspension preload, the vehicle must be at normal ride height before tightening lower control arm bolts to final specifications.
  3. Install the supporting device to the lower control arm. Position the lower control arm so the distance between the spring and the upper and lower perches is snug making sure the spring is in its correct mounting position.
  4. Slowly release the front spring making sure it is in its correct mounting position.
  5. Lower and remove the supporting device so the lower control arm is in its down position.

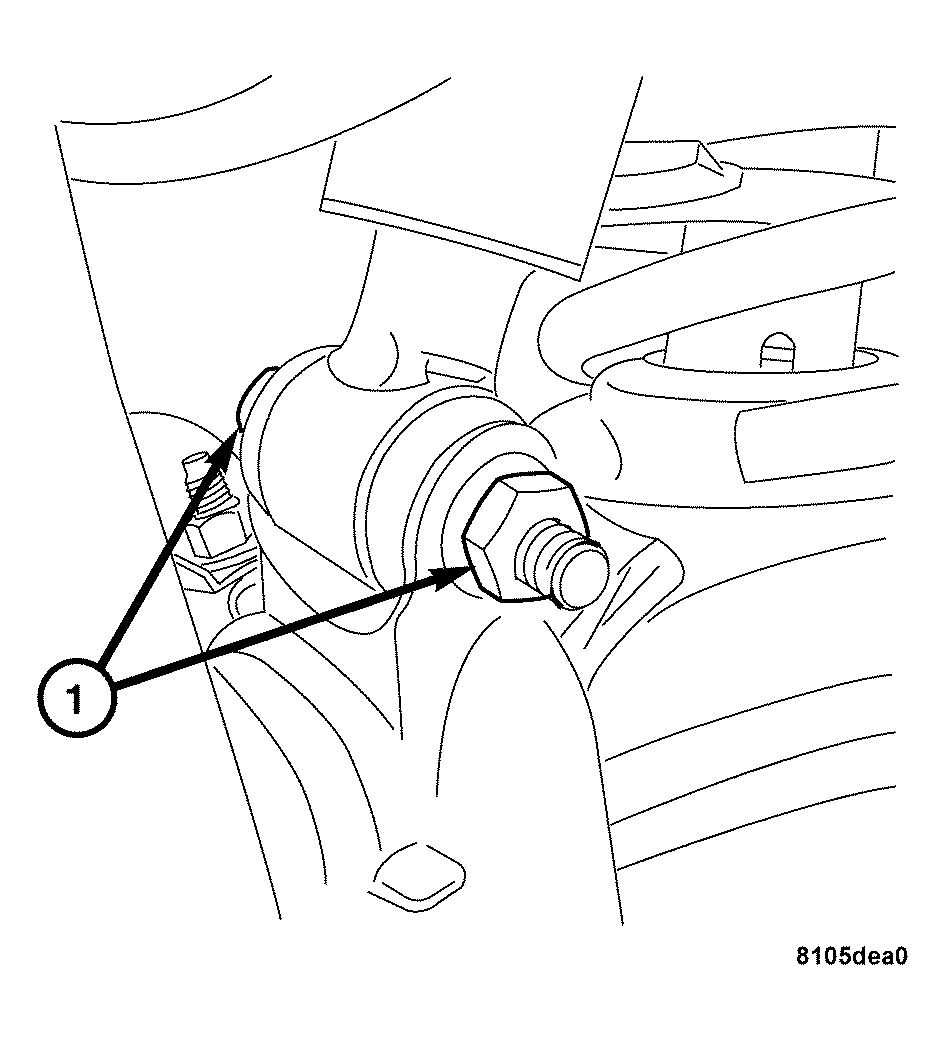

    Fig 3: Locating Shock Absorber Bolt & Nut
    GC0033648Courtesy of CHRYSLER LLC
  6. Install the shock absorber lower bolt and nut (1) to the lower control arm. Tighten to 55 N.m (41 ft. lbs.).

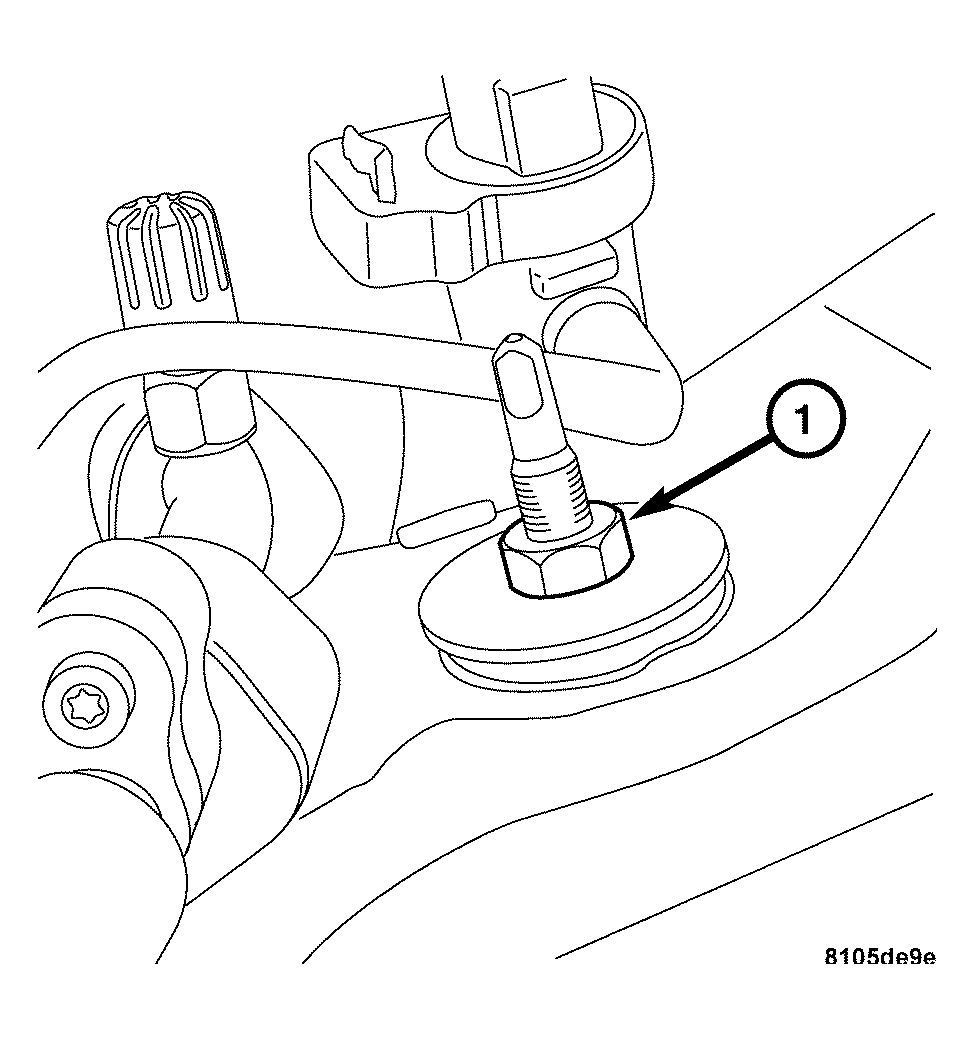

    Fig 4: Locating Shock Absorber Upper Mounting Nut
    GC0033653Courtesy of CHRYSLER LLC
  7. Lower the vehicle while guiding the shock into the upper mounting surface.
  8. Install the rubber mount and washer over the shock absorber stud.
  9. Install the shock absorber upper mounting nut (1). Tighten to 18 N.m (13 ft. lbs.).
  10. Tighten the lower control arm to 120 N.m (88 ft. lbs.).
  11. Lower the vehicle and check vehicle alignment. See STANDARD PROCEDURE .
