2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

P1386-Knock Sensor System Failure: Notes

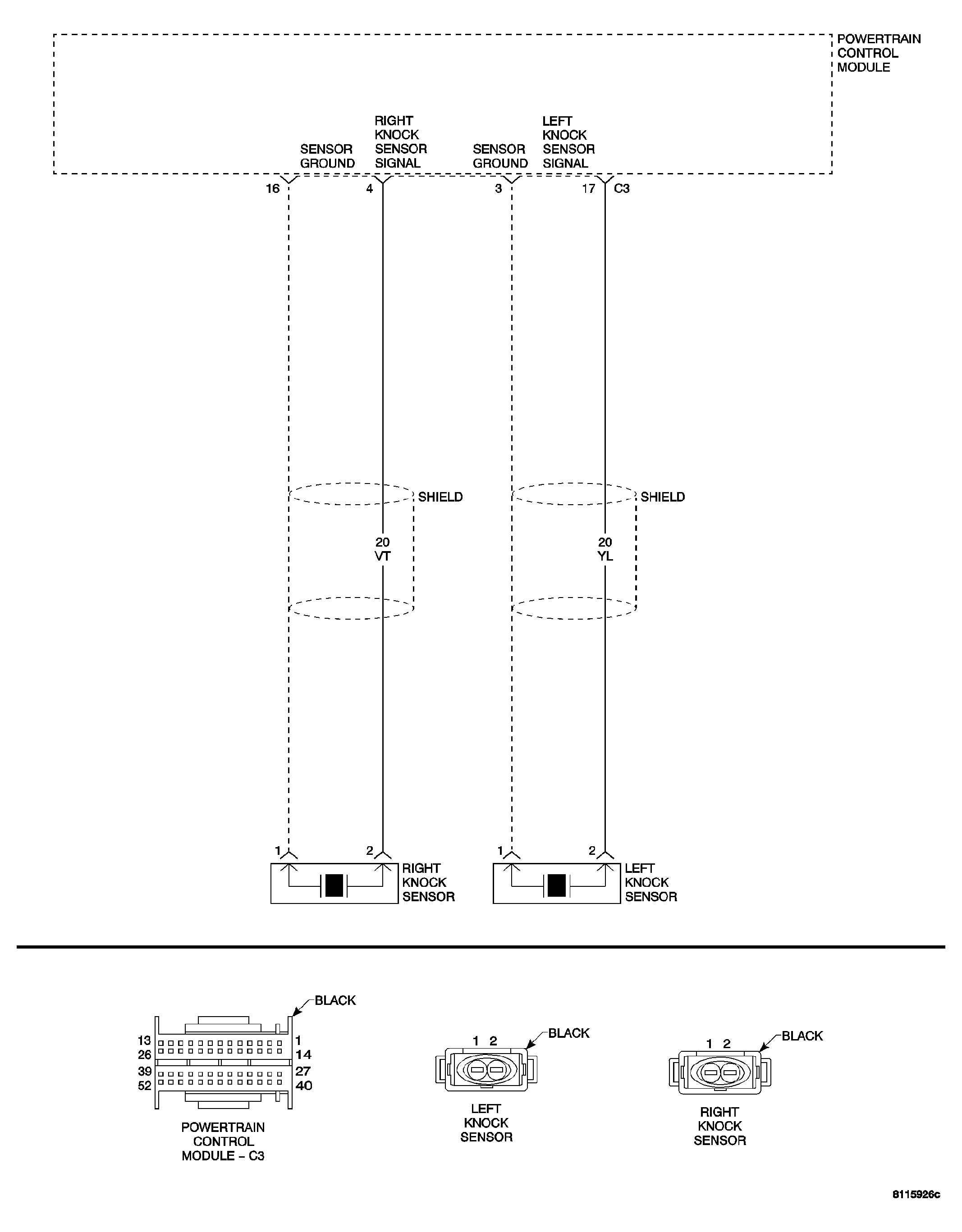

Fig 1: Knock Sensor System Circuit Schematic

Courtesy of CHRYSLER LLC

When Monitored : After the anti-knock control is shut off and the engine is at operating temperature.
Set Condition : The anti-knock control test has failed Ten consecutive times in a row.

Possible Causes
POWERTRAIN CONTROL MODULE

For a complete Powertrain Control Module Circuit Diagram,
