P0602-Pcm Programmed Incorrect Trans/No Comm From TCM: Notes
- When Monitored : With the ignition on.
- Set Condition : This DTC is set when a CAN ID is not received in the required time from the Transmission Control Module (TCM).
| Possible Causes |
|---|
| CAN C BUS (+)/(-) CIRCUIT OPEN |
| CAN C BUS (+)/(-) CIRCUIT SHORT TO GROUND |
| CAN C BUS (+)/(-) CIRCUIT SHORT TO VOLTAGE |
| TRANSMISSION CONTROL MODULE |
| SENTRY KEY REMOTE ENTRY MODULE |
| POWERTRAIN CONTROL MODULE |

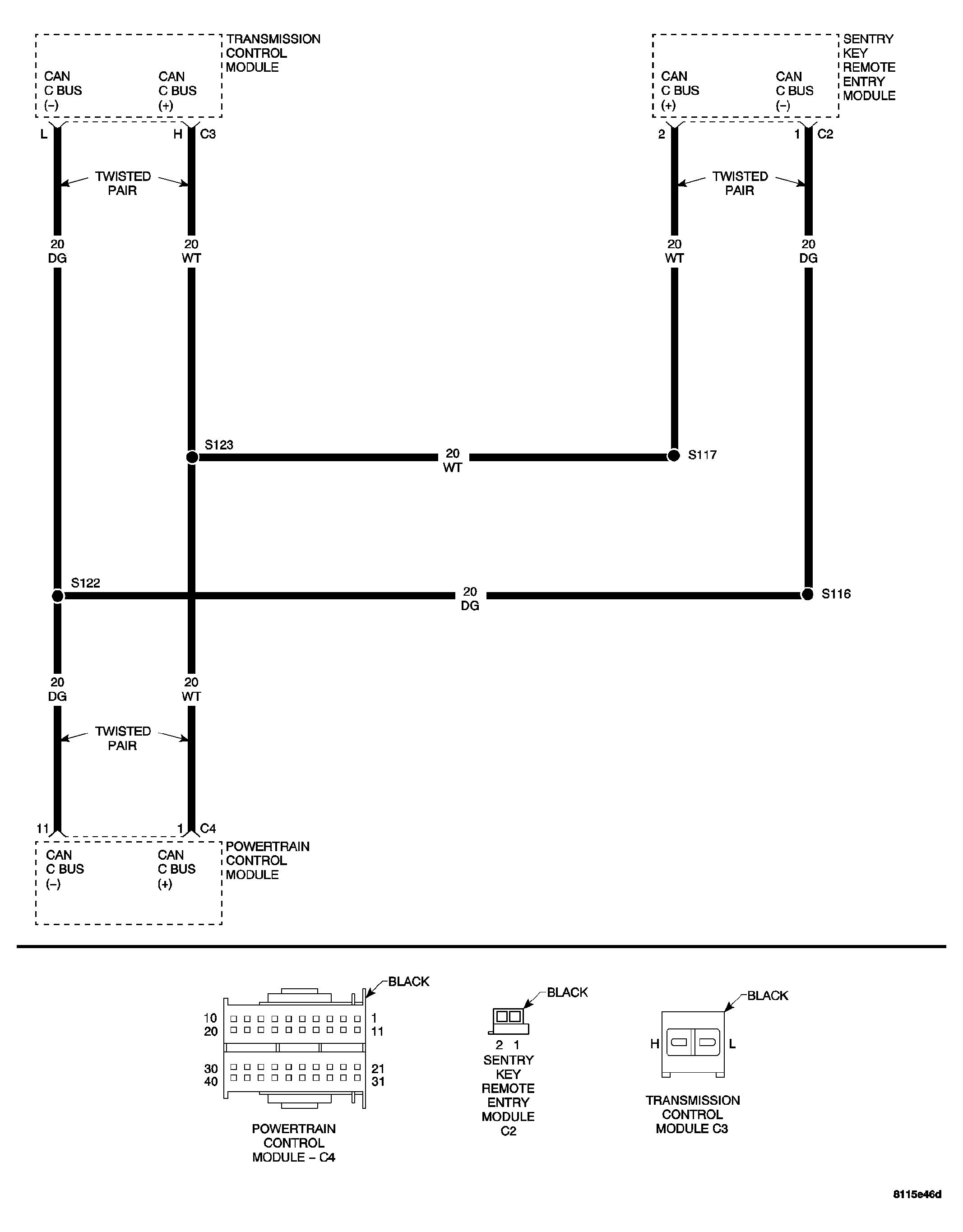

For a complete Electronic Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
