P0575-Speed Control Switch Input Circuit: Notes
- When Monitored : With the ignition on.
- Set Condition : Anytime the Powertrain Control Module (PCM) doesn't sense the proper voltage on the Speed Control Switch Off Signal circuit.
| Possible Causes |
|---|
| FUSE 10 OPEN |
| FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN |
| SPEED CONTROL SWITCH SIGNAL CIRCUIT SHORT TO GROUND |
| SPEED CONTROL SWITCH OFF SIGNAL CIRCUIT OPEN |
| SPEED CONTROL SWITCH |
| POWERTRAIN CONTROL MODULE |

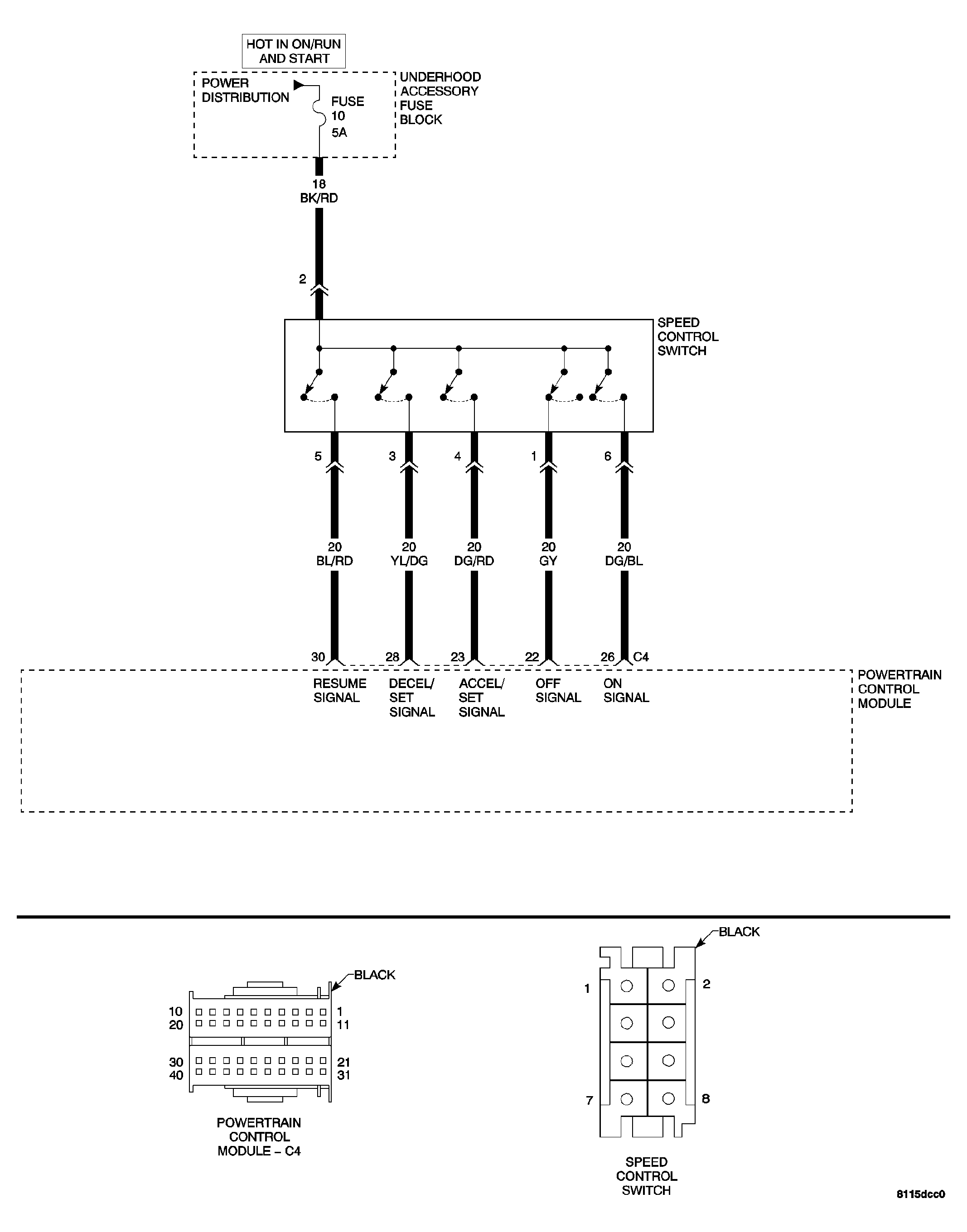

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
