P0440-General EVAP System Failure: Notes
- When Monitored : Engine Running. Cold start test. Fuel Level greater than 12%. Ambient Temperature between 4°C and 32°C (39°F and 89°F) Close Loop fuel system. Test runs when small leak test is maturing.
- Set Condition : The PCM activates the EVAP Purge Solenoid to pull the EVAP system into a vacuum. The PCM turns the EVAP Purge solenoid off to seal the EVAP system. If the Fuel Tank Pressure Sensor reads between -1.5 to +1.0 hPa before the calibrated amount of time for a Medium leak/Small leak an error is detected. Two Trip Fault.
| Possible Causes |
|---|
| EVAPORATIVE EMISSION SYSTEM LEAK |
| FUEL TANK PRESSURE SENSOR |

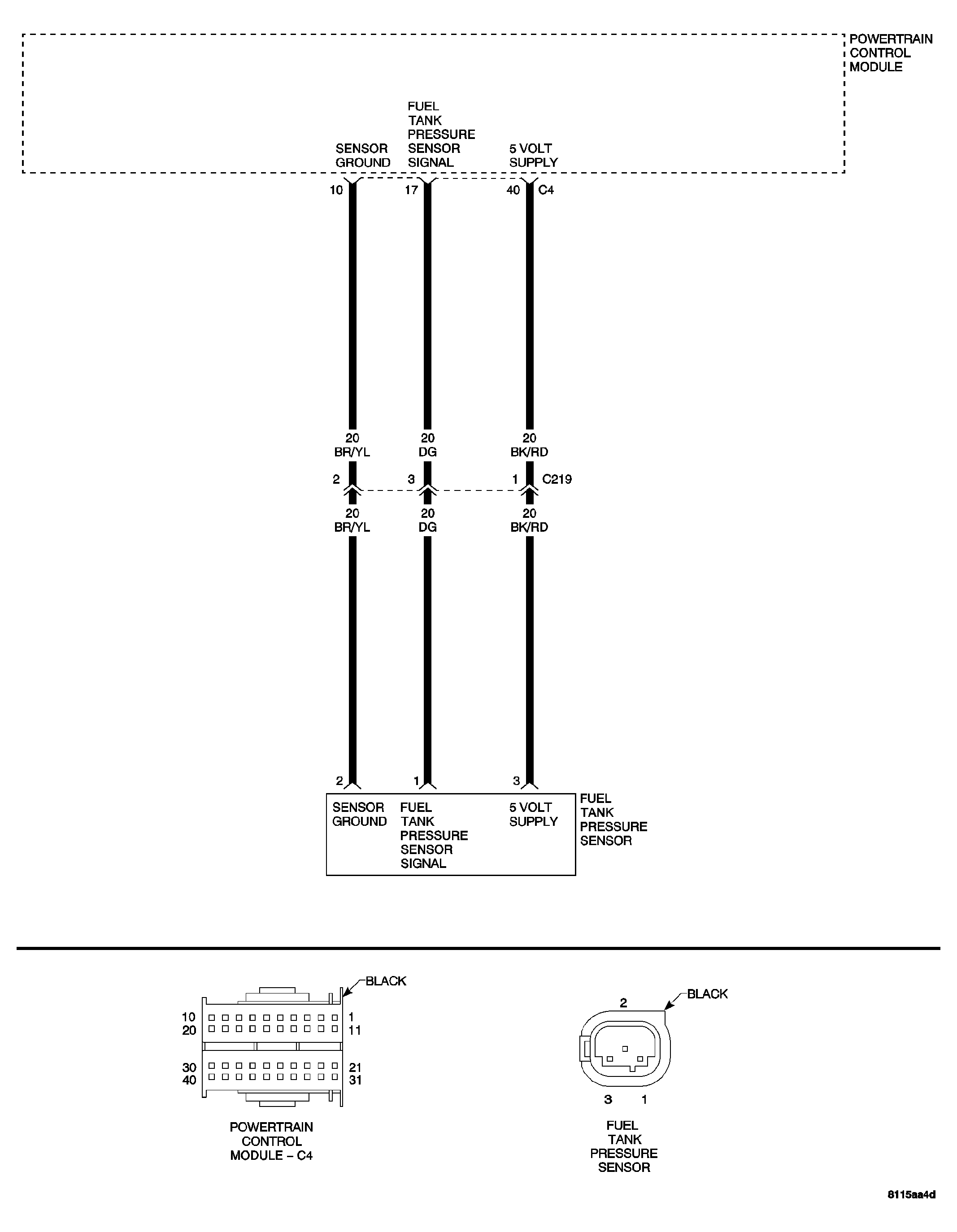

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
