2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
P0418-Secondary Air Injection System Control Circuit: Notes
- When Monitored : Once per driving cycle when the Engine is at idle, Air Pump was activated at start-up, Barometric Pressure greater than 78 kPa (11 psi), Engine Coolant Temperature is greater than 50°C (122°F), and no other DTCs.
- Set Condition : When the test is enabled, the O2 Sensor must increase by at least 23% (rich).
| Possible Causes |
| AIR PUMP RELAY CONTROL CIRCUIT OPEN |
| AIR PUMP RELAY CONTROL CIRCUIT SHORT TO GROUND |
| AIR PUMP RELAY CONTROL CIRCUIT SHORT TO VOLTAGE |
| AIR PUMP RELAY CONTROL CIRCUIT SHORT TO AIR PUMP RELAY OUTPUT CIRCUIT |
| RELAY CONTROL MODULE |
| POWERTRAIN CONTROL MODULE |

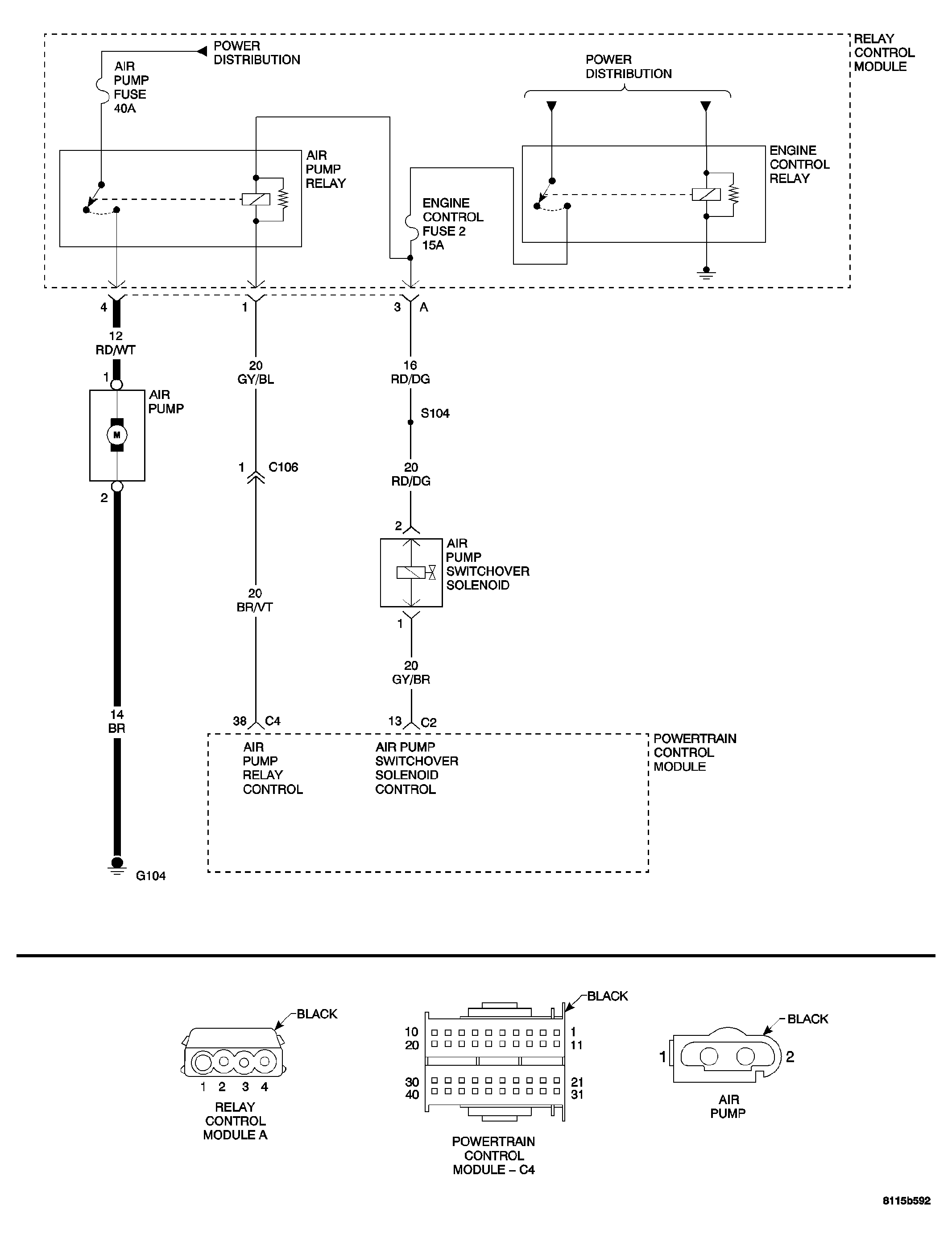

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
