P0400-EGR System Performance: Notes
- When Monitored : A constant engine speed between 900 and 1700 RPM and no other EGR or MAP sensor faults.
- Set Condition : The PCM commands the EGR valve to open. The MAP sensor value must drop by a minimum of 54 mbar (1.6 in. Hg) when EGR is commanded open or a fault is set.
| Possible Causes |
| EGR SOLENOID CONTROL CIRCUIT OPEN |
| EGR SOLENOID CONTROL CIRCUIT SHORT TO GROUND |
| EGR SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE |
| FUSED ENGINE CONTROL RELAY OUTPUT CIRCUIT OPEN |
| EGR SOLENOID |
| EGR VALVE |
| POWERTRAIN CONTROL MODULE |

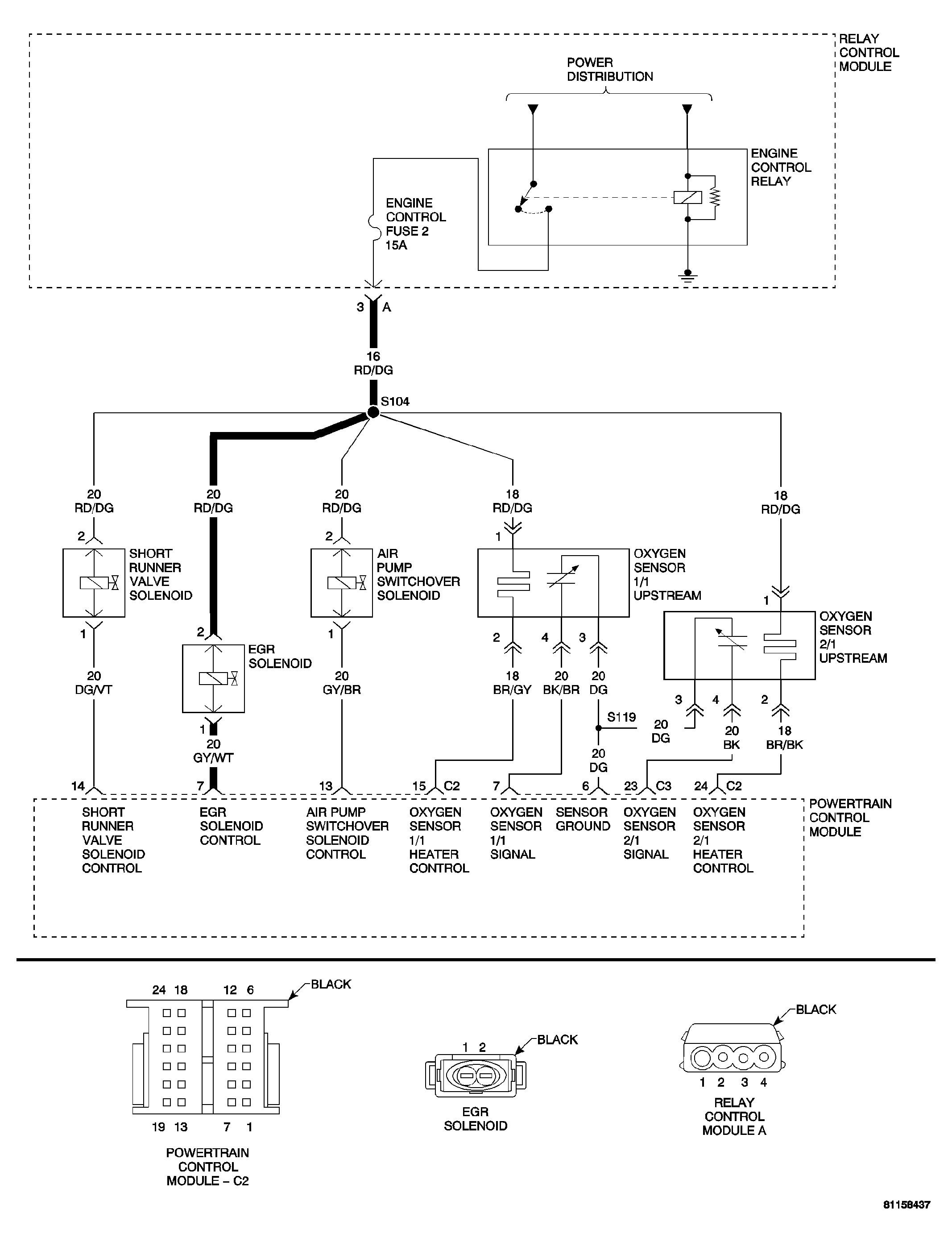

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
