Oxygen Sensor

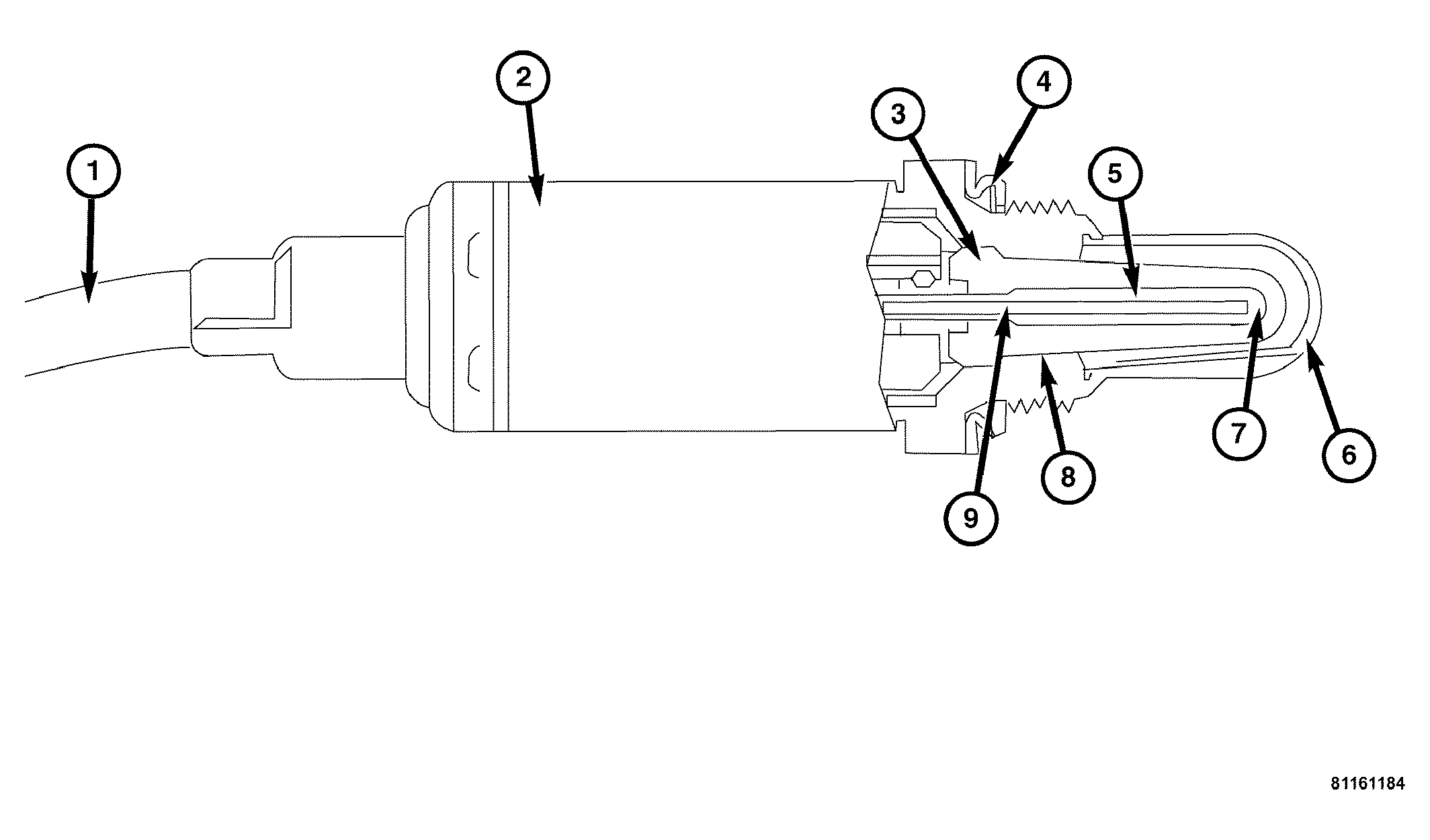

| 1 - ELECTRICAL CONNECTION |
| 2 - SENSOR HOUSING |
| 3 - ACTIVE CERAMIC PROBE BODY |
| 4 - MATING SURFACE |
| 5 - HEATING ELEMENT |
| 6 - PROTECTIVE TUBE |
| 7 - INNER, OPEN COMBUSTION CHAMBER |
| 8 - ELECTRODE (OUTER) |
| 9 - ELECTRODE (INNER) |
The Oxygen Sensors (O2S) are attached to, and protrude into the vehicle exhaust system. The vehicle uses a total of 4 sensors; 2 upstream (referred to as 1/1 and 2/1) and 2 downstream (referred to as 1/2 and 2/2). The right upstream sensor (1/1) is located in the right exhaust pipe just before the mini-catalytic converter. The left upstream sensor (2/1) is located in the left exhaust pipe just before the mini-catalytic converter. The right downstream sensor (1/2) is located in the right exhaust downpipe just after the mini-catalytic converter, and before the main catalytic converter. The left downstream sensor (2/2) is located in the left exhaust downpipe just after the mini-catalytic converter, and before the main catalytic converter.
