Fuel Level Sending Unit/Sensor

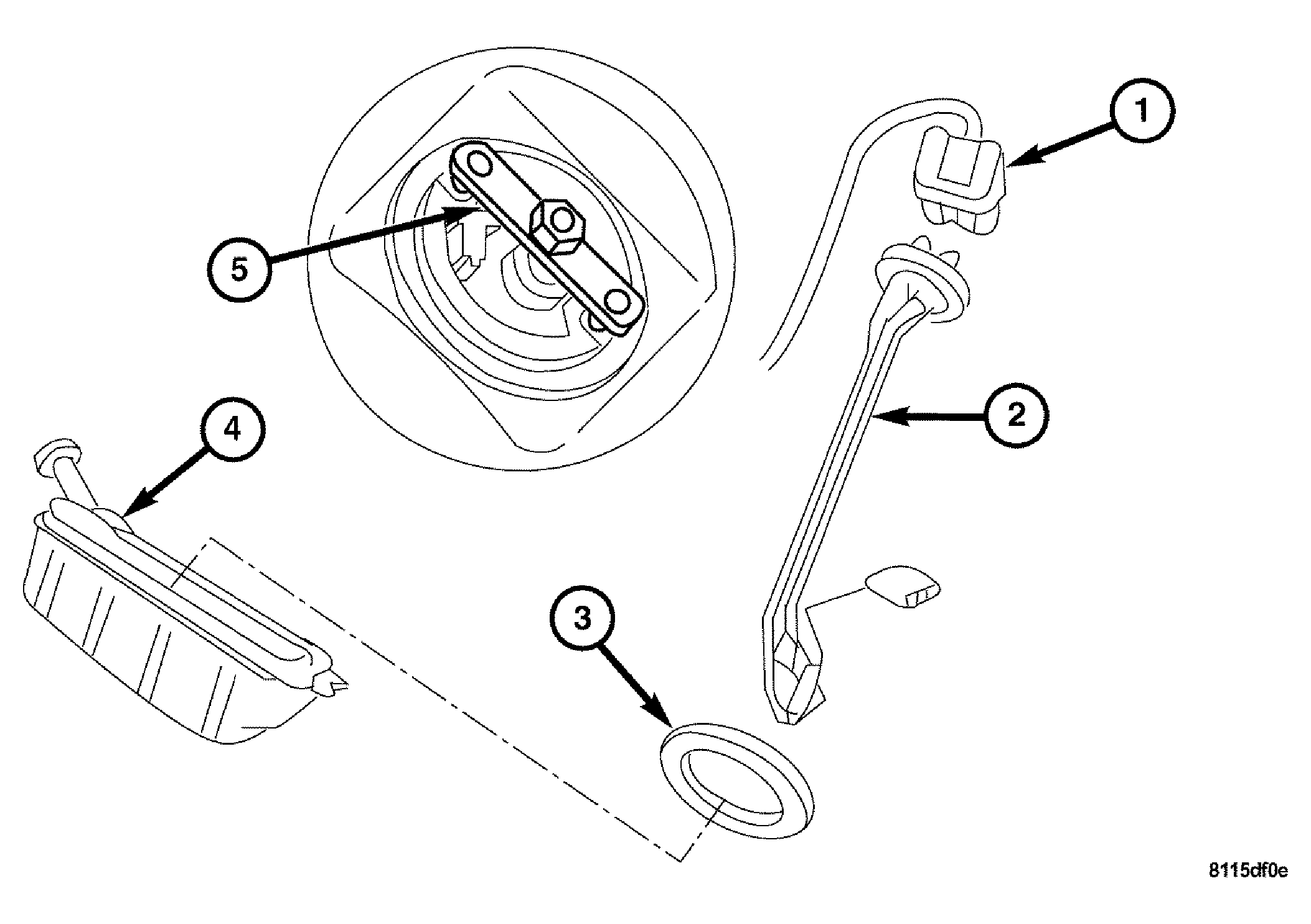

| 1 - ELECTRICAL HARNESS CONNECTOR |
| 2 - FUEL LEVEL SENDING UNIT |
| 3 - SEAL |
| 4 - FUEL TANK |
| 5 - SPECIAL TOOL 9240 |
The Fuel Level Sending Unit (2) is combined with a Fuel Tank Pressure Sensor and is mounted at the top of the Fuel Tank (4) extending downward inside. The sending unit is a lever-type sensor with sliding contacts (potentiometer).
