2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

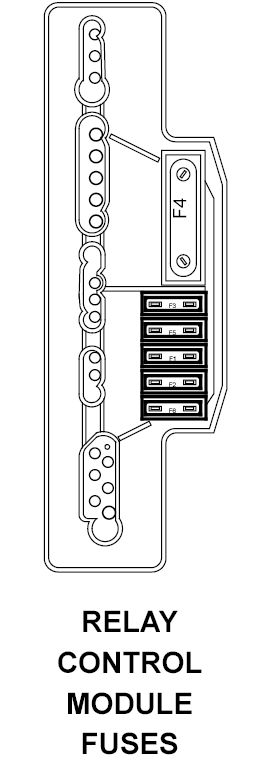

Relay Control Module Fuses Connector End View

RELAY CONTROL MODULE FUSES

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	INTERNAL	FUSED B(+)
2	INTERNAL	FUSED ENGINE CONTROL RELAY OUTPUT
3	INTERNAL	FUSED ENGINE CONTROL RELAY OUTPUT
4	INTERNAL	FUSED B(+)
5	INTERNAL	FUSED B(+)
6	INTERNAL	FUSED B(+)
