2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

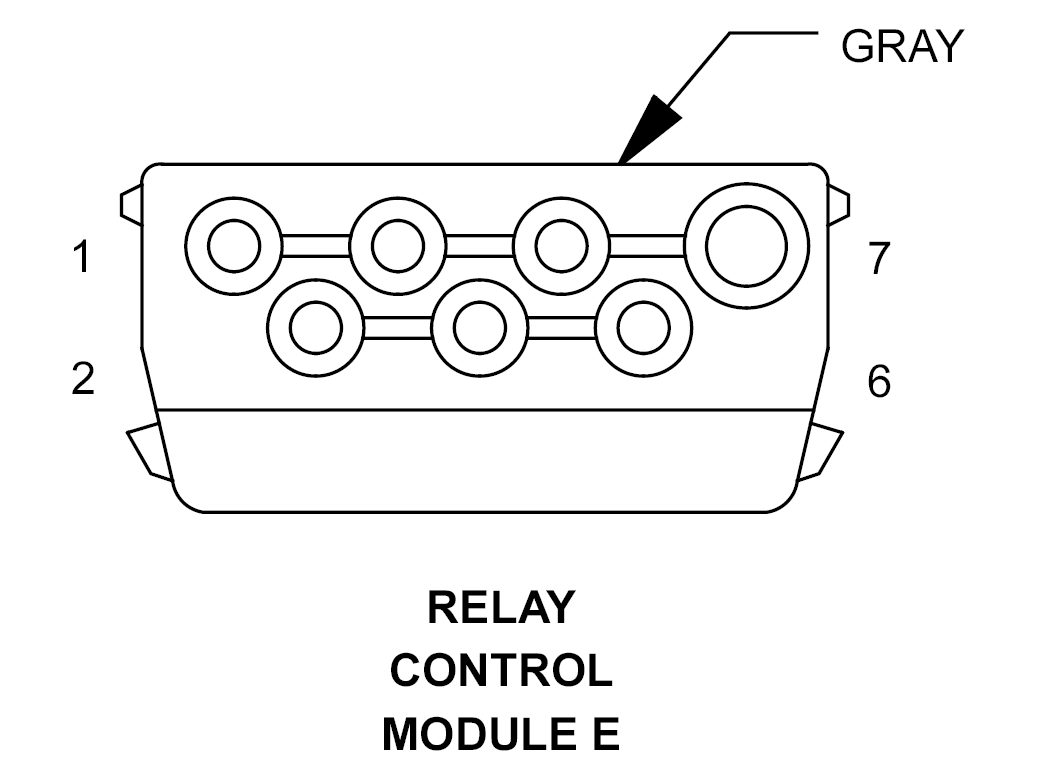

Relay Control Module E Connector End View

RELAY CONTROL MODULE E - GRAY 7-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	16BK/PK	FUSED HORN RELAY OUTPUT
2	20RD/WT	FUSED IGNITION SWITCH OUTPUT
3	18BL/RD	FUEL PUMP RELAY CONTROL
4	18BK/DG	FUSED B(+)
5	16RD/DG	FUSED ENGINE CONTROL RELAY OUTPUT
6	18RD/DG	FUSED ENGINE CONTROL RELAY OUTPUT
7	-	-
