2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

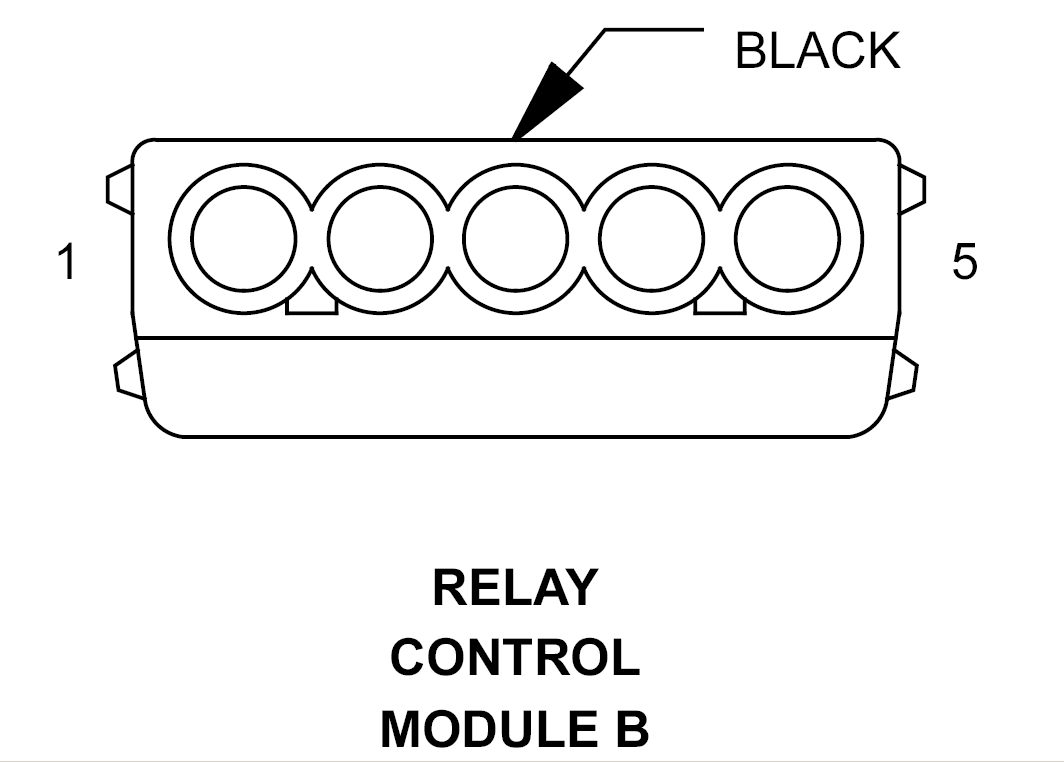

Relay Control Module B Connector End View

RELAY CONTROL MODULE B - BLACK 5-WAY

GZH780209Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 12RD FUSED B(+)
2 12RD FUSED B(+)
3 14RD/DG FUEL PUMP RELAY OUTPUT
4 14RD FUSED B(+)
5 18BR GROUND
