2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

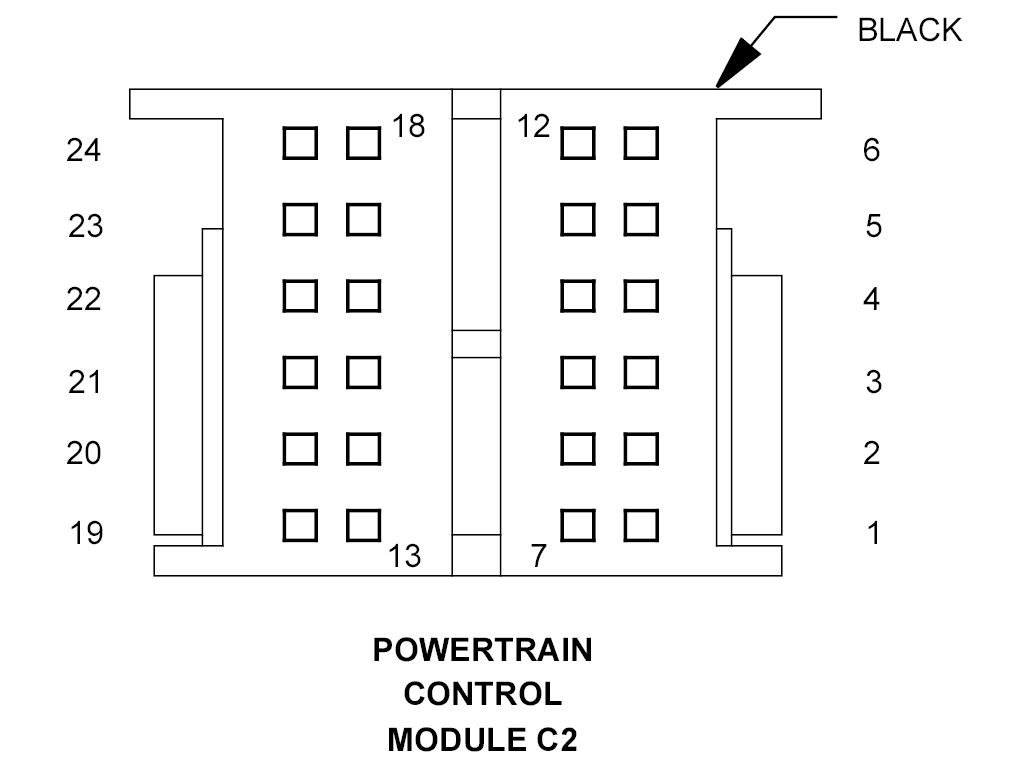

Powertrain Control Module Connector End View (C2)
POWERTRAIN CONTROL MODULE C2 - BLACK 24-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | 20GY/WT | EGR SOLENOID CONTROL |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | 18VT/WT | COIL ON PLUG DRIVER NO. 5 |
| 13 | 20GY/BR | AIR PUMP SWITCHOVER SOLENOID CONTROL |
| 14 | 20DG/VT | SHORT RUNNER VALVE SOLENOID CONTROL |
| 15 | 18BR/GY | OXYGEN SENSOR 1/1 HEATER CONTROL |
| 16 | - | - |
| 17 | - | - |
| 18 | 18GY/VT | FUEL INJECTOR NO. 6 CONTROL |
| 19 | 18GY/DG | FUEL INJECTOR NO. 3 CONTROL |
| 20 | - | - |
| 21 | 18GY/YL | FUEL INJECTOR NO. 5 CONTROL |
| 22 | 18GY/RD | FUEL INJECTOR NO. 2 CONTROL |
| 23 | - | - |
| 24 | 18BR/BK | OXYGEN SENSOR 2/1 HEATER CONTROL |
