2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

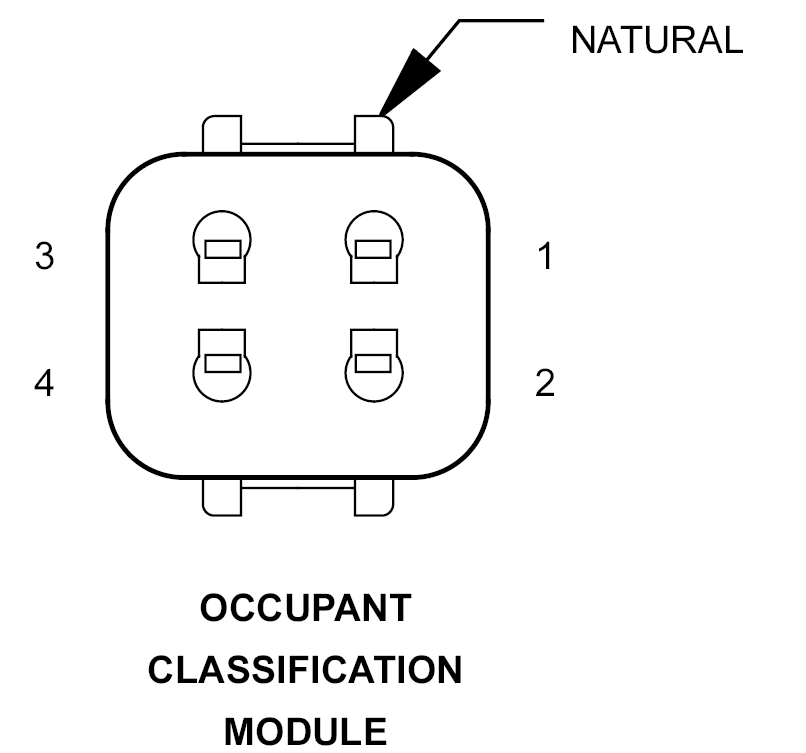

Occupant Classification Module Connector End View

OCCUPANT CLASSIFICATION MODULE - NATURAL 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20RD/YL	FUSED B(+)
2	20BR	GROUND
3	20WT/DG	CAN INTERIOR BUS (125K) (+)
4	20BK/DG	CAN INTERIOR BUS (125K) (-)
