2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

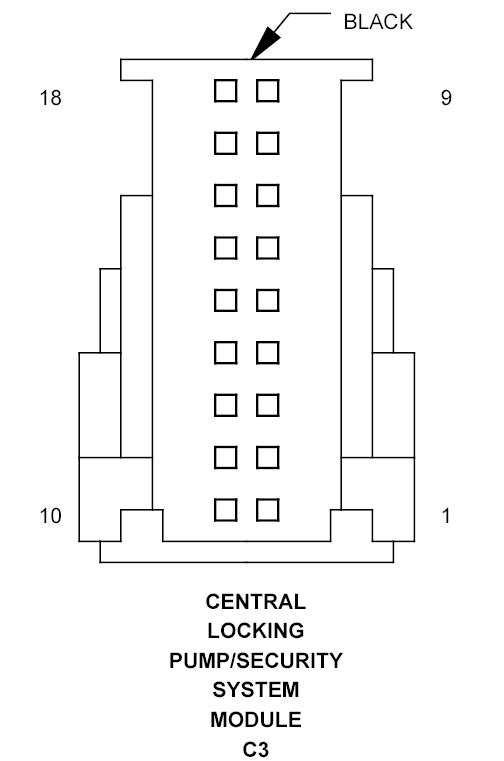

Central Locking Pump Module/Security System Module Connector End View (C3)
CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C3 - BLACK 18-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | 22DG/GY | SENSOR GROUND |
| 5 | 18BR/RD | HOOD AJAR SWITCH SENSE |
| 6 | 20WT/DG | TOW-AWAY ALARM SWITCH SENSE |
| 7 | 20YL/RD | SIREN SIGNAL OUTPUT |
| 8 | 20YL | INTRUSION SENSOR SIGNAL (EXPORT) |
| 9 | 20BR/DG | TONNEAU COVER SWITCH SENSE (ZH27) |
| 10 | - | - |
| 11 | 22RD/DG | TOW-AWAY ALARM SWITCH LED CONTROL |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 18BR/DG | ANTI-THEFT TOW SENSOR SIGNAL |
| 16 | 20BR/GY | GLOVE BOX SWITCH SENSE |
| 17 | - | - |
| 18 | - | - |
