2007 Chrysler Crossfire Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

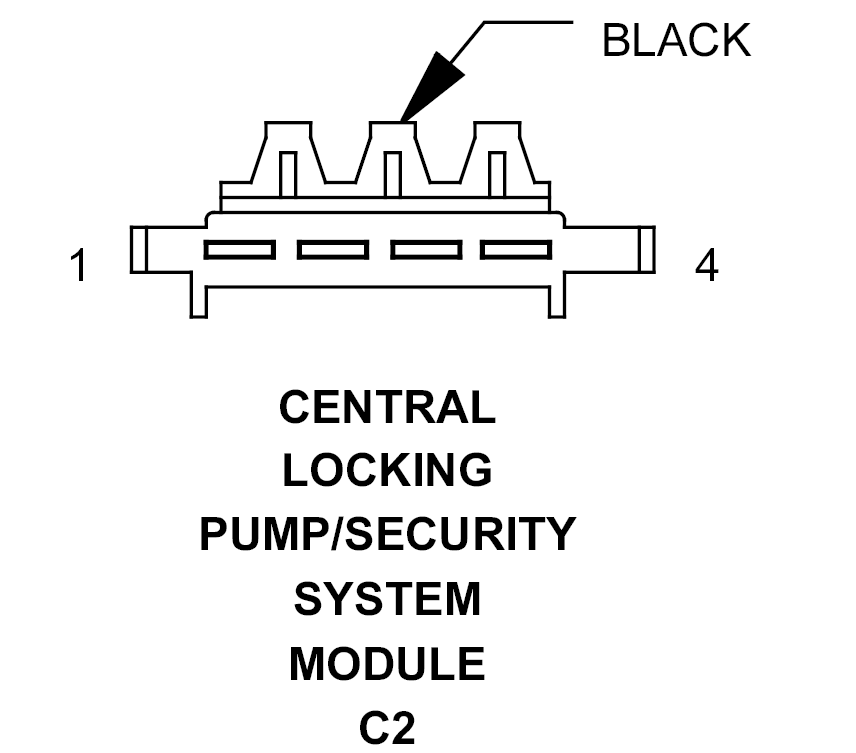

Central Locking Pump Module/Security System Module Connector End View (C2)

CENTRAL LOCKING PUMP/SECURITY SYSTEM MODULE C2 - BLACK 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	14BK	REAR WINDOW DEFOGGER GRID SUPPLY
2	12RD/DG	FUSED B(+)
3	14BR	GROUND
4	16BK/YL/WT	FUSED B(+)
