2007 Chrysler 300 BaseFACTORY OEM SERVICE PROCEDURE
Sensor - Seat Track Position: Installation

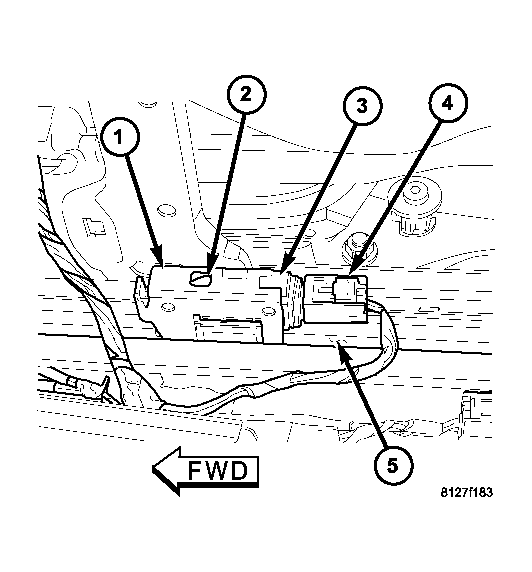

- Position the seat track position sensor (3) on the end of the bracket (1) located on the lower outboard seat track (5).
- Push the sensor firmly into the bracket until the snap feature (2) locks into place.
- Connect the electrical connector (4) to the sensor.
WARNING:
Do not connect the battery negative cable. Refer to DIAGNOSIS AND TESTING
.
Personal injury or death may result if the system test is not performed first.
