2007 Chrysler 300 BaseFACTORY OEM SERVICE PROCEDURE

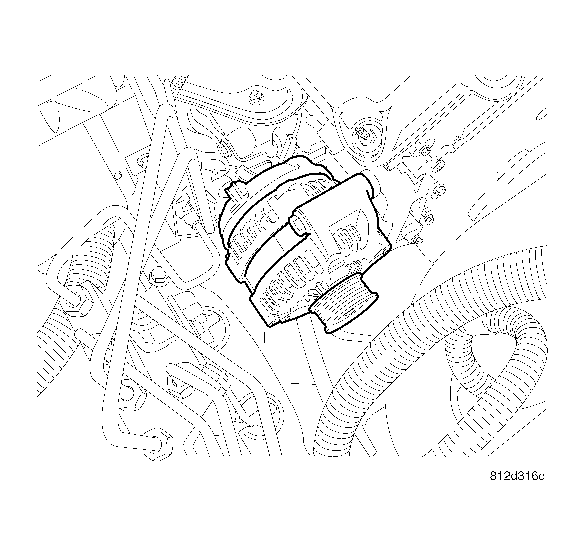

Generator - 2.7L
- Disconnect negative battery cable.
- Remove generator drive belt.

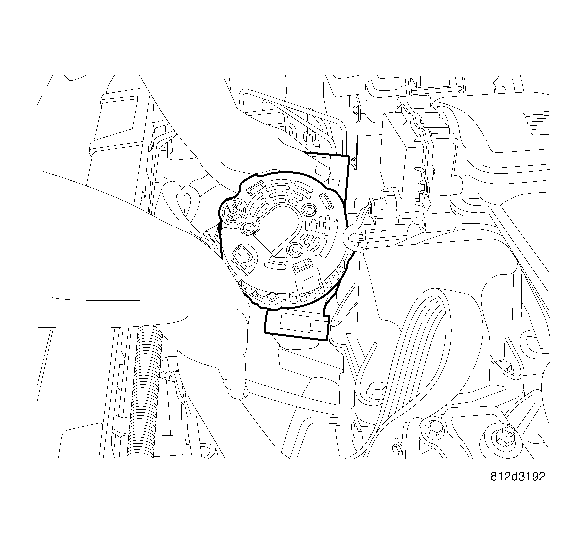

- Disconnect generator field circuit plug.
- Remove B+ terminal nut and wire.

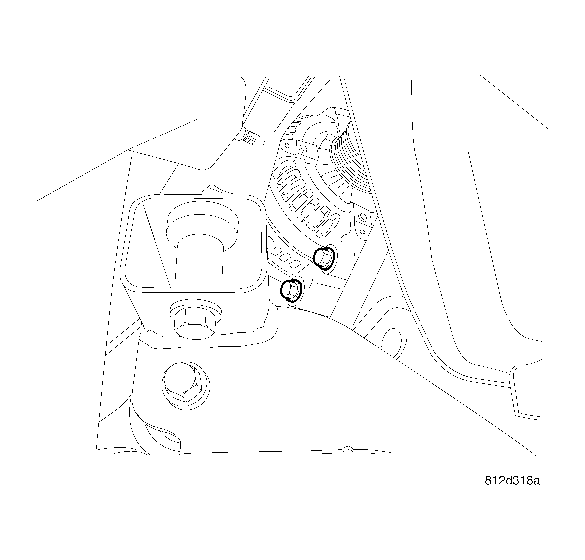

- Remove 2 lower mounting bolts.

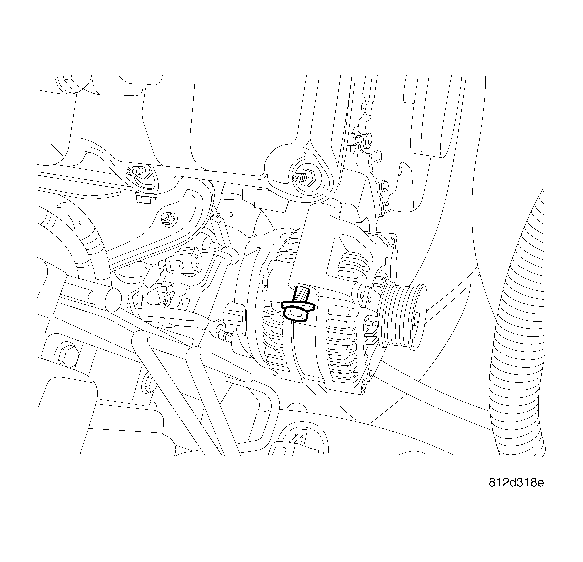

- Remove upper bolt.
- Remove generator.
