Integrated Power Module

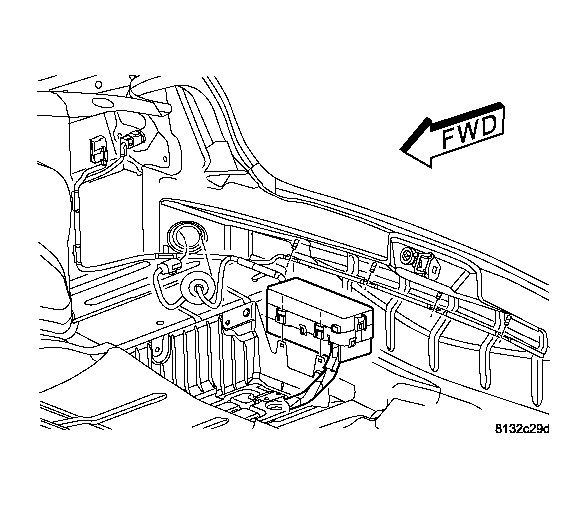

The majority of electrical system fuses and relays are housed in the two Power Distribution Centers (PDC). One is located in the engine compartment, combined with the Front Control Module (FCM) to form the Integrated Power Module (IPM). See DESCRIPTION . The other is next to the battery at the rear of the vehicle. The PDC located next to the battery is replaced only as part of the body wiring harness.
For fuse description and layout, refer to SPECIFICATIONS .
