2005 Chrysler Crossfire Limited, 2D Convertible, AutomaticFACTORY OEM SERVICE PROCEDURE

On/Off Switch Indicator Module: Installation

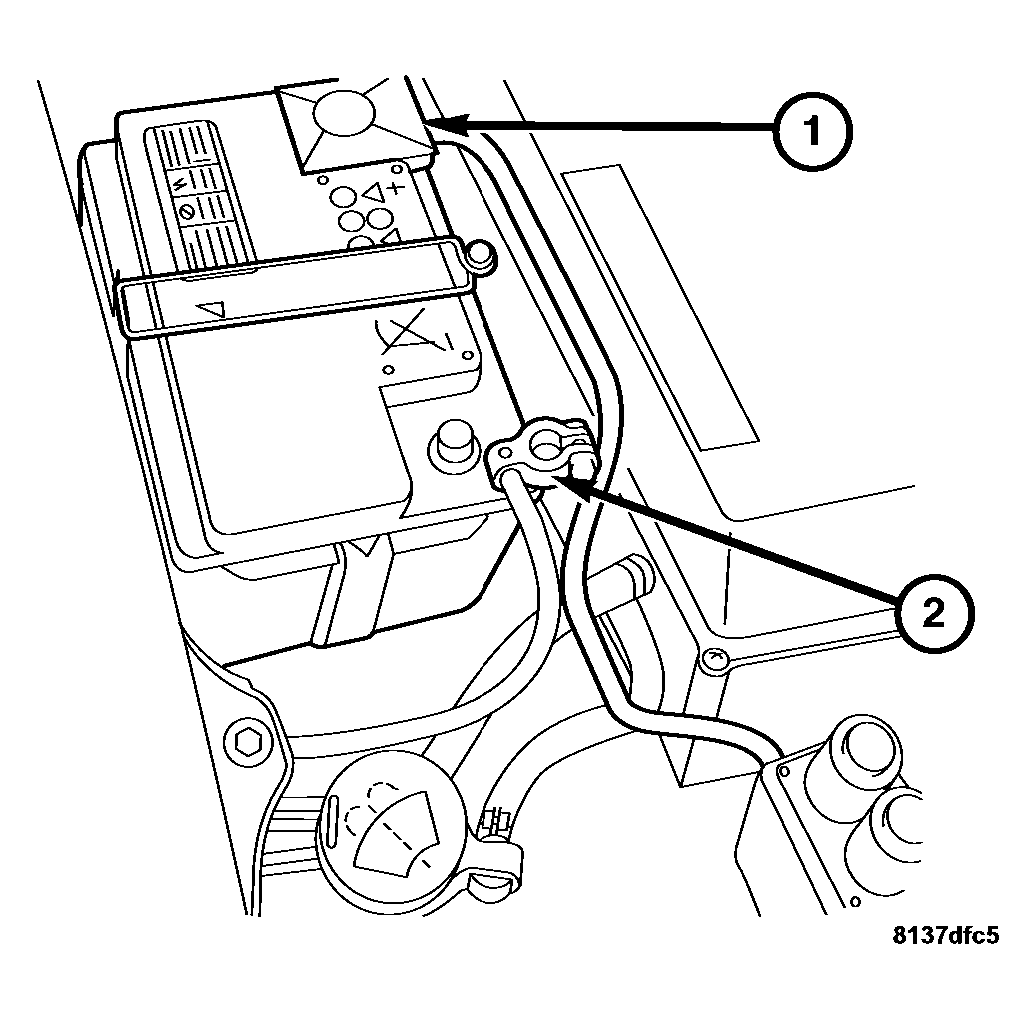

Fig 1: Locating Negative Battery Cable
GC0035079Courtesy of DAIMLERCHRYSLER CORP.
  1. Verify the negative battery cable (2) is disconnected before proceeding. Wait two minutes for the system capacitor to discharge before further service.

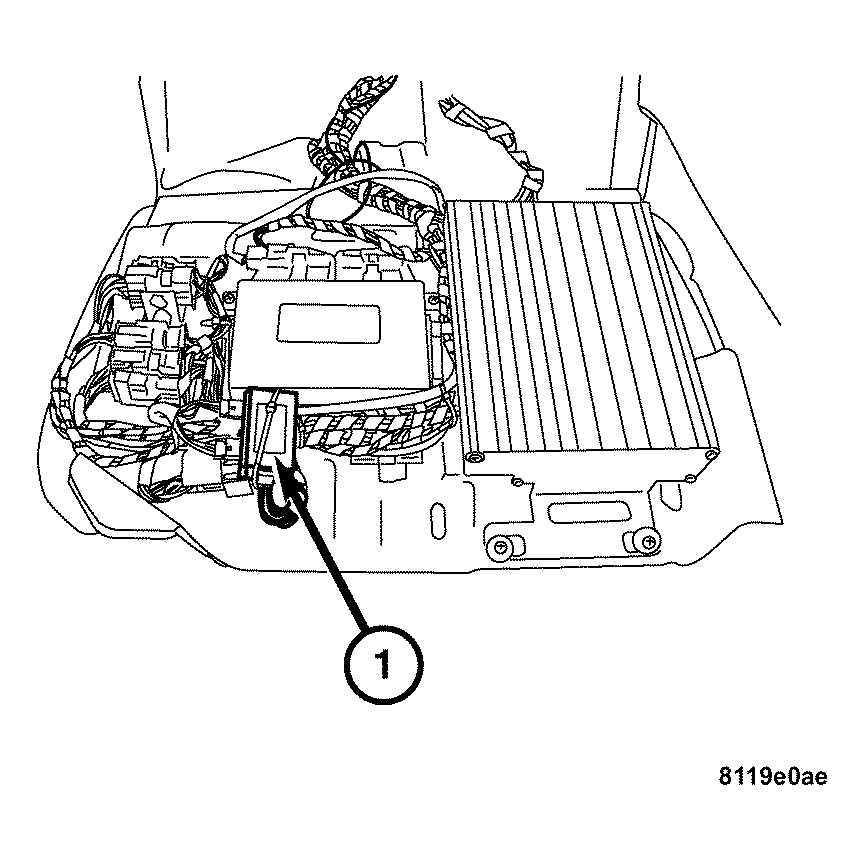

    Fig 2: Locating Passenger Seat Occupant Simulator
    GC0035692Courtesy of DAIMLERCHRYSLER CORP.
  2. Connect the passenger seat occupant simulator harness connector and attach the passenger seat occupant simulator (1) to the base plate with a plastic wire tie.

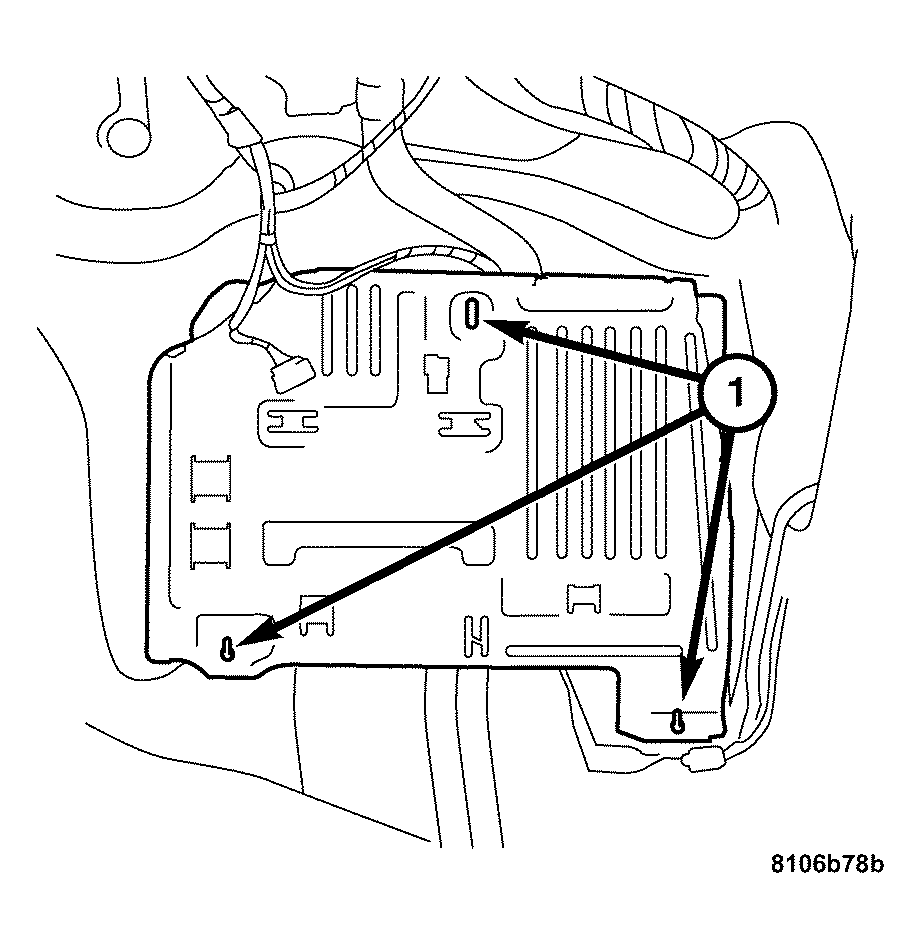

    Fig 3: Locating Plastic Retaining Nuts
    GC0034836Courtesy of DAIMLERCHRYSLER CORP.
  3. Rotate the base plate and install it over the mounting studs on the floor panel.
    NOTE: Be sure not to pinch or cause interference with the wiring harnesses while locating the base plate to the floor mounting studs.
  4. Install the plastic retaining nuts (1) and secure the base plate to the vehicle floor.

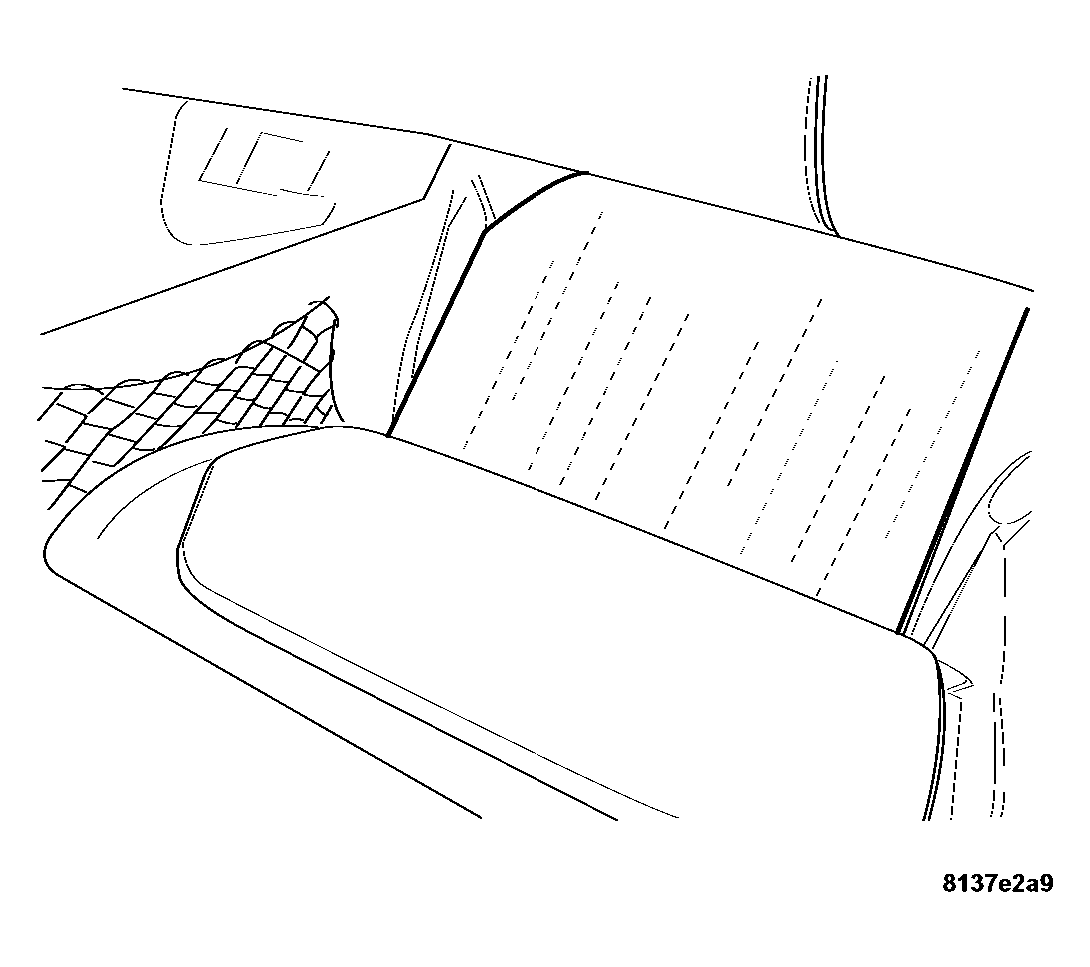

    Fig 4: Locating Foam Insulation Panel
    GC0034838Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the foam insulating panel.
  6. Install the carpeting in the passenger footwell.
  7. Install the floor mat to the carpet.
  8. Do not reconnect the negative battery cable at this time. Perform the Supplemental Restraint System verification test procedure after servicing any Supplemental Restraint System component. (Refer to ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE) .
