Restraints System (Service Information): CLOCKSPRING: Description

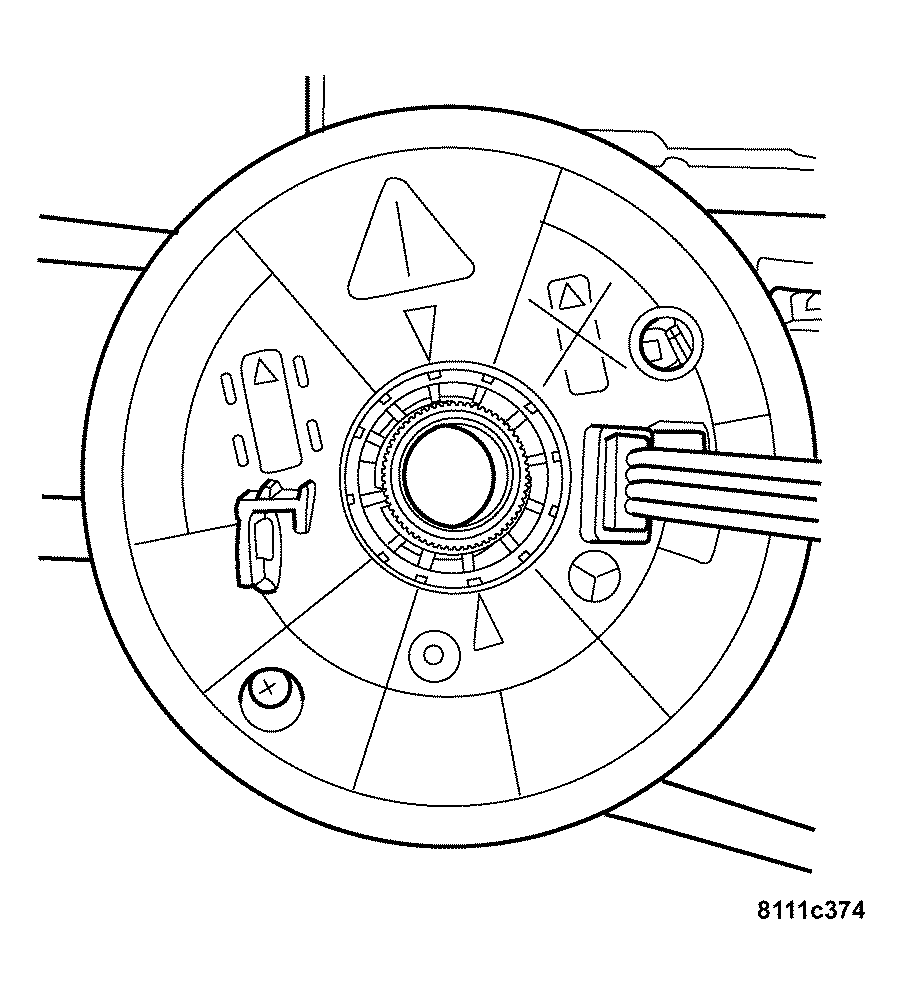

The clockspring assembly is secured to the multifunction switch mounting housing near the top of the steering column behind the steering wheel.
Within the plastic case and wound around the rotor spool is a long ribbon-like tape. The outer end of the tape terminates at the connector receptacles that face the instrument panel, while the inner end of the tape terminates at the pigtail wires and connector receptacles on the hub of the clockspring rotor that face the steering wheel.
Service replacement clocksprings are shipped pre-centered and with a molded plastic locking pin installed. The locking pin secures the centered clockspring rotor to the clockspring case during shipment and handling, but must be removed from the clockspring after it and the multifunction switch mounting housing are installed on the steering column.
The clockspring cannot be repaired. If the clockspring is faulty, damaged, or if the driver airbag has been deployed, the clockspring must be replaced.
