2005 Chrysler Crossfire Limited, 2D Convertible, AutomaticFACTORY OEM SERVICE PROCEDURE

Spark Plug: Installation

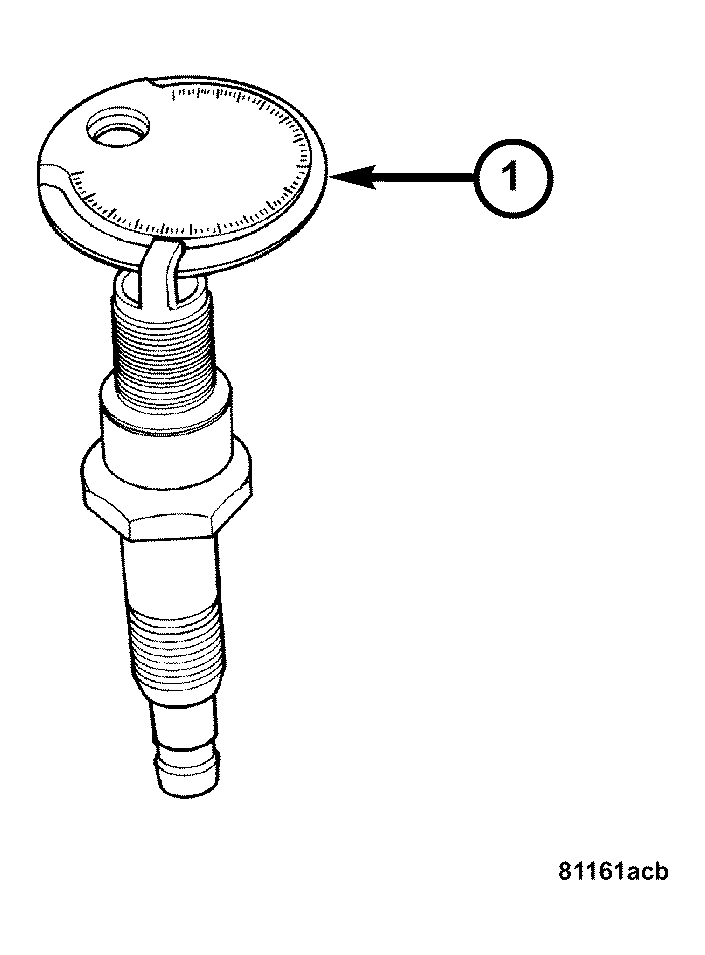

Fig 1: Using Spark Plug Gap Gauge To Gap Spark Plugs

Courtesy of DAIMLERCHRYSLER CORP.

Using a spark plug gap gauge (1), gap the spark plugs to 1.02 mm (.040 in.) before installation.
Start the spark plugs into the cylinder head by hand to avoid cross threading.
Tighten the spark plugs to 28 N.m (21 ft. lbs.).

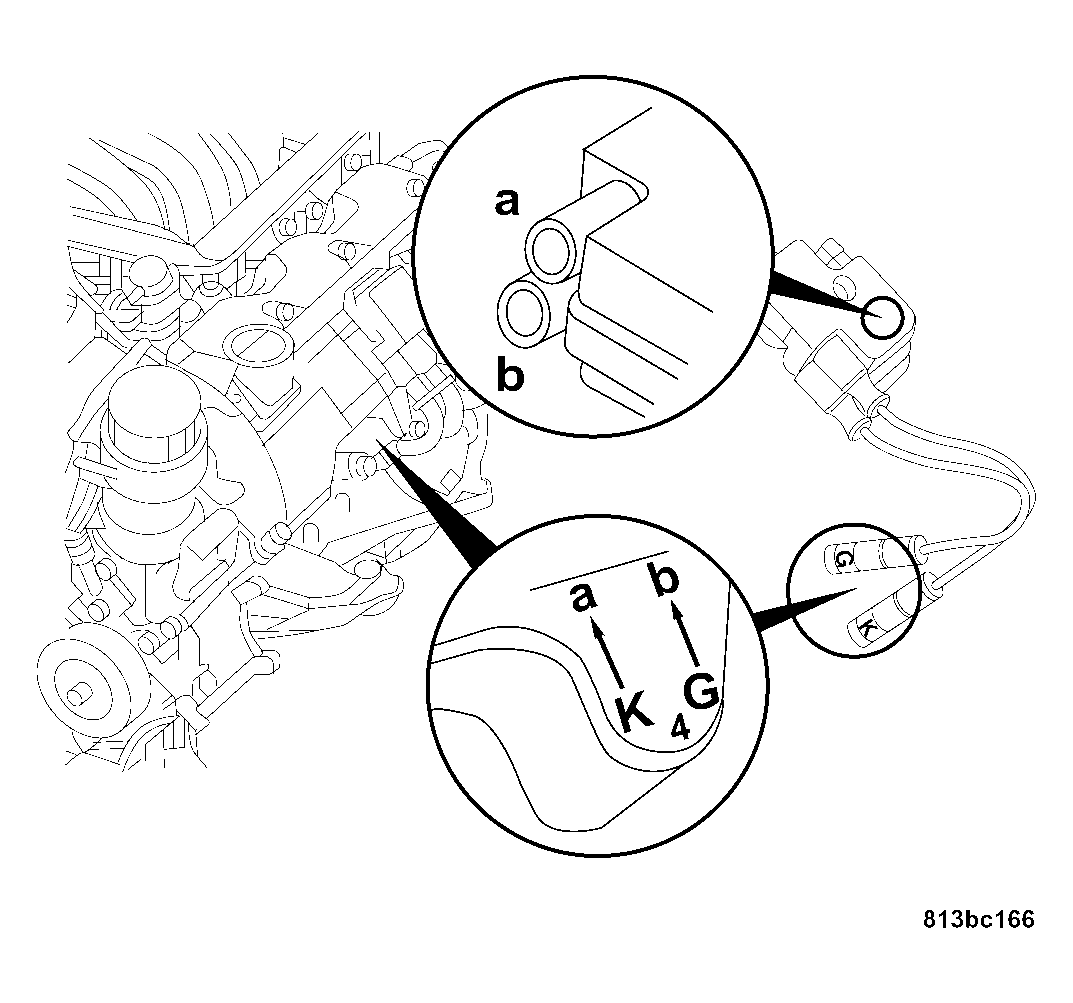

Fig 2: Firing Plugs Operation
Courtesy of DAIMLERCHRYSLER CORP.
