2005 Chrysler 300 SRT-8FACTORY OEM SERVICE PROCEDURE

Ignition System (Service Information): Switch-Ignition: Removal

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to appropriate Wiring Diagrams Information in ELECTRICAL.

Disconnect negative cable from battery.

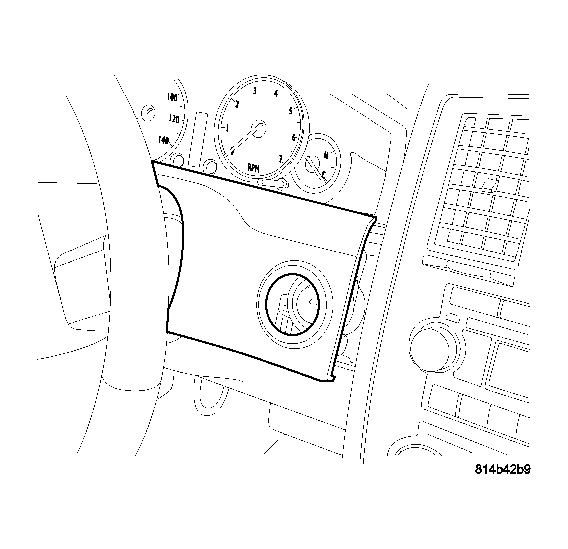

Fig 1: INSTRUMENT PANEL CENTER BEZEL
Courtesy of DAIMLERCHRYSLER CORP.
Remove the Instrument Panel Center Bezel, (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) Chrysler and (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - REMOVAL) Dodge.

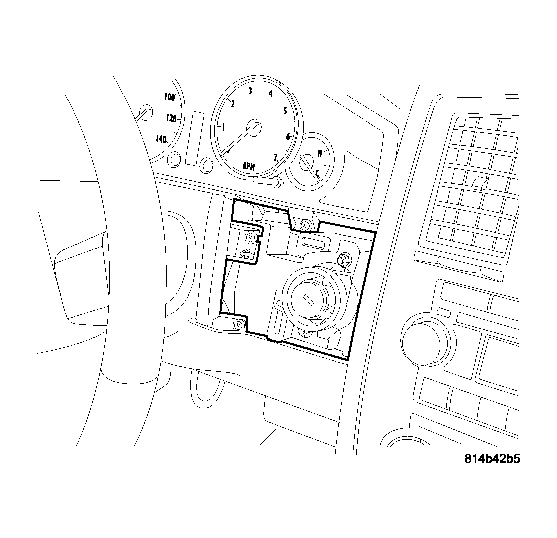

Fig 2: BEZEL CLUSTER REMOVED
Courtesy of DAIMLERCHRYSLER CORP.
Bezel cluster removed.

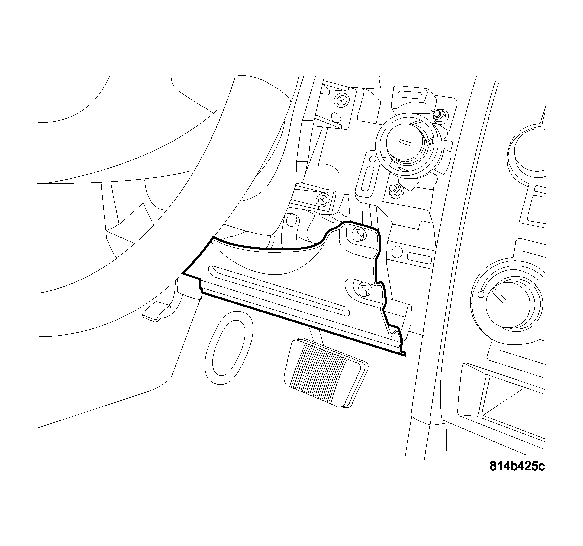

Fig 3: SIDE TRIM PANEL
Courtesy of DAIMLERCHRYSLER CORP.
Remove side trim panel to steering column cover.

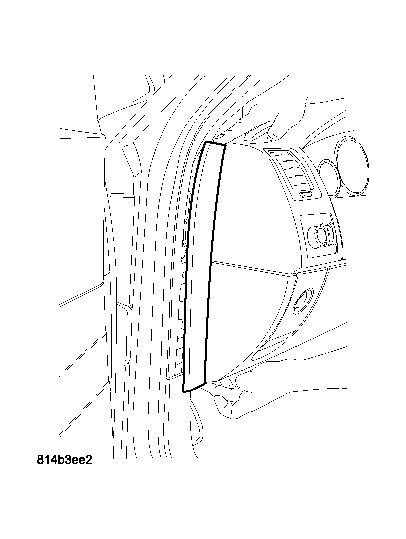

Fig 4: STEERING COLUMN COVER
Courtesy of DAIMLERCHRYSLER CORP.
