2004 Chrysler Pacifica FWDFACTORY OEM SERVICE PROCEDURE

Rear Driveline Module: Installation

WARNING: This page is about a different variant/trim than selected.

Install driveline module to transmission jack. Secure module to jack.
Using Tool 9099, load halfshafts to differential, one side at a time (Fig 1 ).

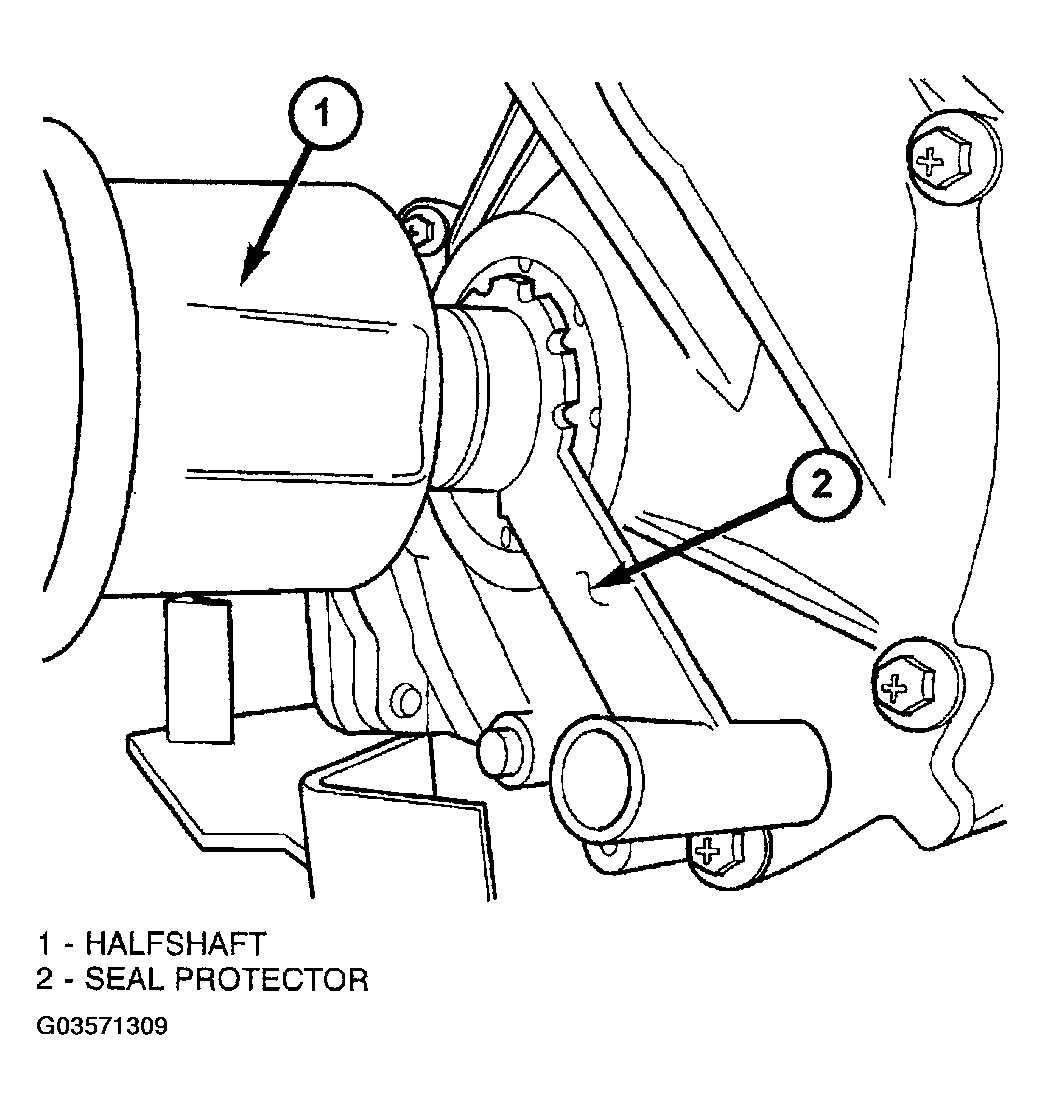

Fig 1: Installing Seal Protector
Courtesy of DAIMLERCHRYSLER CORP.
Index and install propeller shaft to driveline module flange. Install, but do not tighten, three (3) propeller shaft-to-driveline module bolts.
Raise driveline module into position (Fig 2 ).

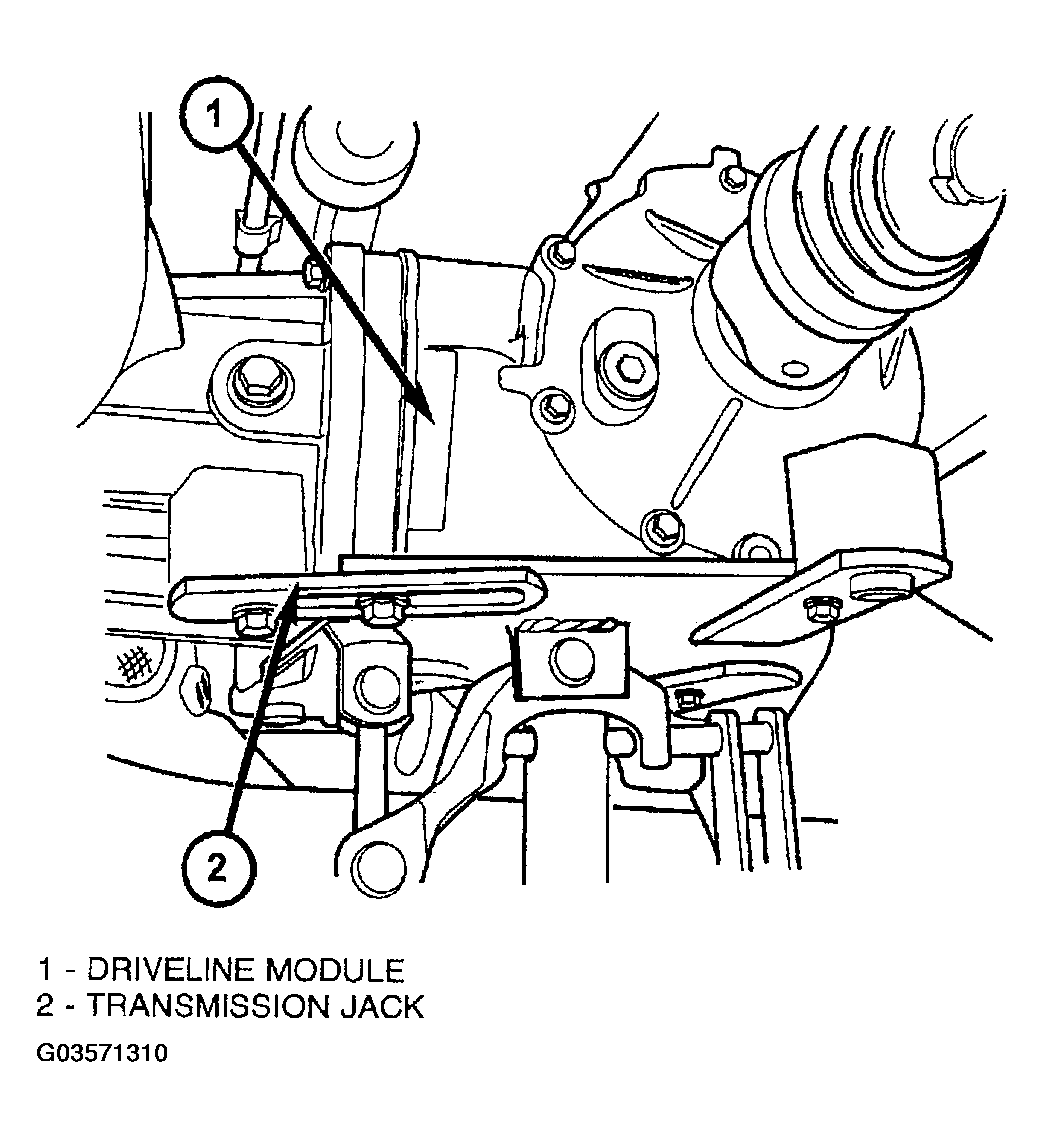

Fig 2: Identifying Driveline Module And Transmission Jack
Courtesy of DAIMLERCHRYSLER CORP.
Install and torque module-to-cradle bolts to 102 N.m (75 ft. lbs.) (Fig 3 ) (Fig 4 ).

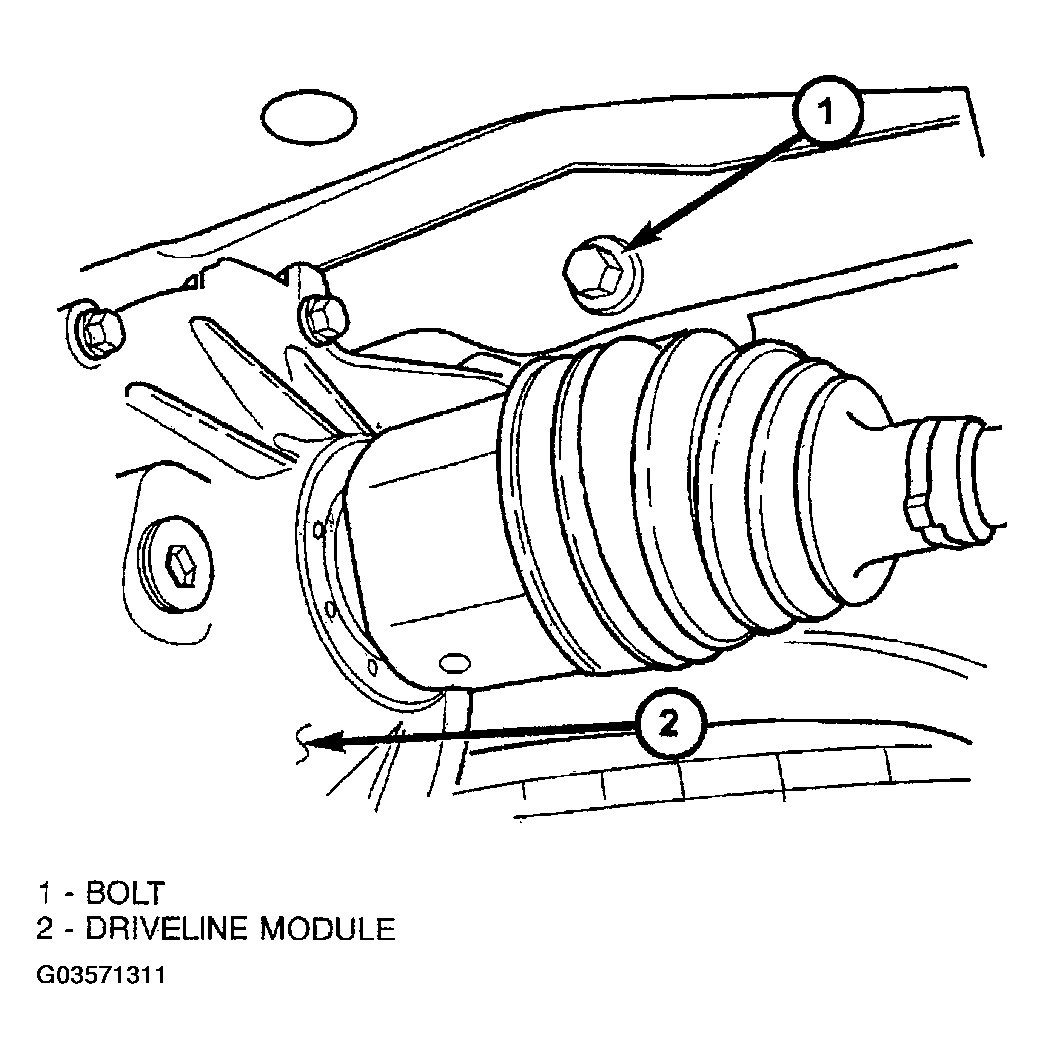

Fig 3: Installing Module Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
