2004 Chrysler Pacifica FWDFACTORY OEM SERVICE PROCEDURE

Rear Driveline Module: Disassembly

WARNING: This page is about a different variant/trim than selected.

WARNING: Differential is only to be serviced as an assembly, and no disassembly is required.

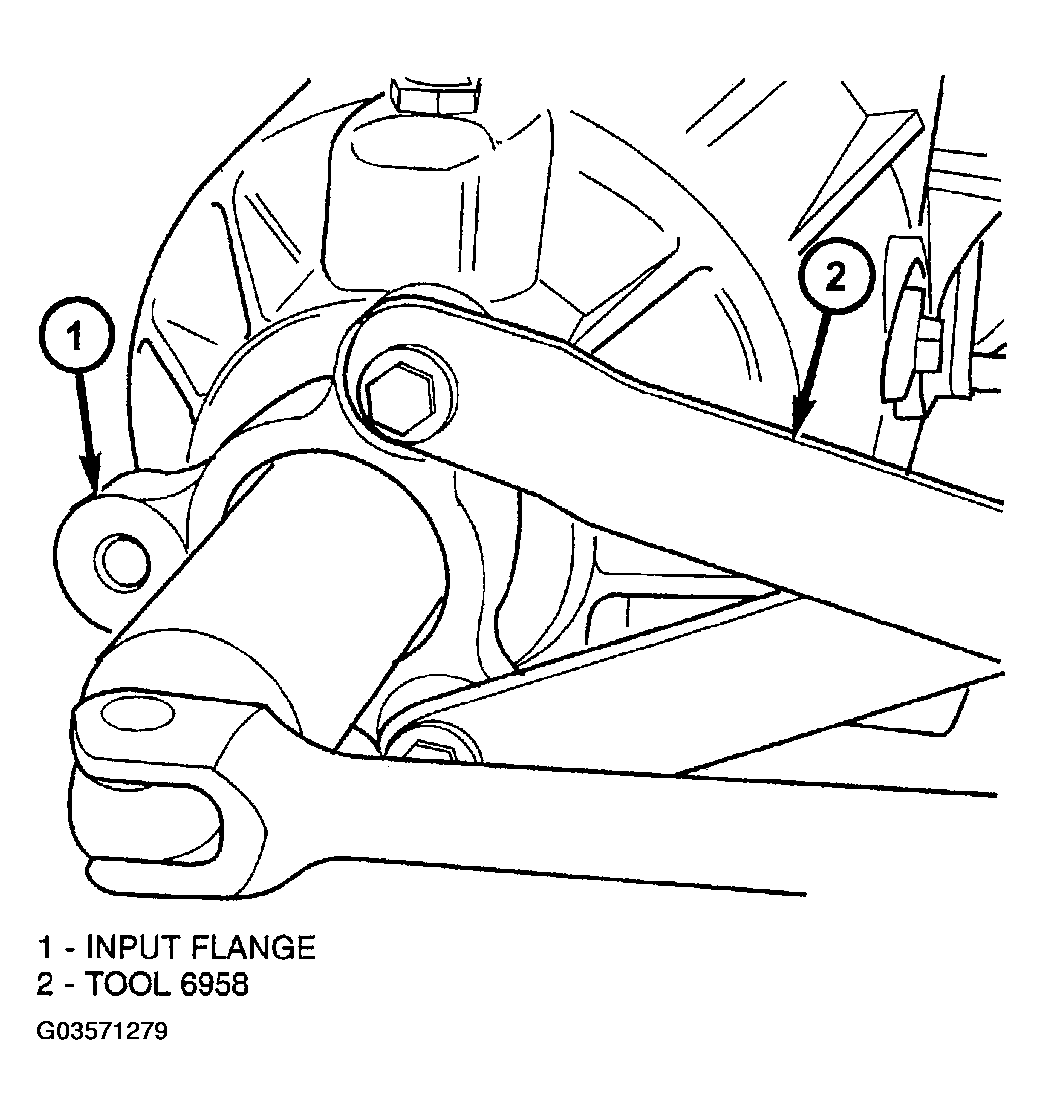

Loosen input flange nut and washer using Tool 6958 and a breaker bar (Fig 1 ).

Fig 1: Loosening Input Flange Nut And Washer
Courtesy of DAIMLERCHRYSLER CORP.

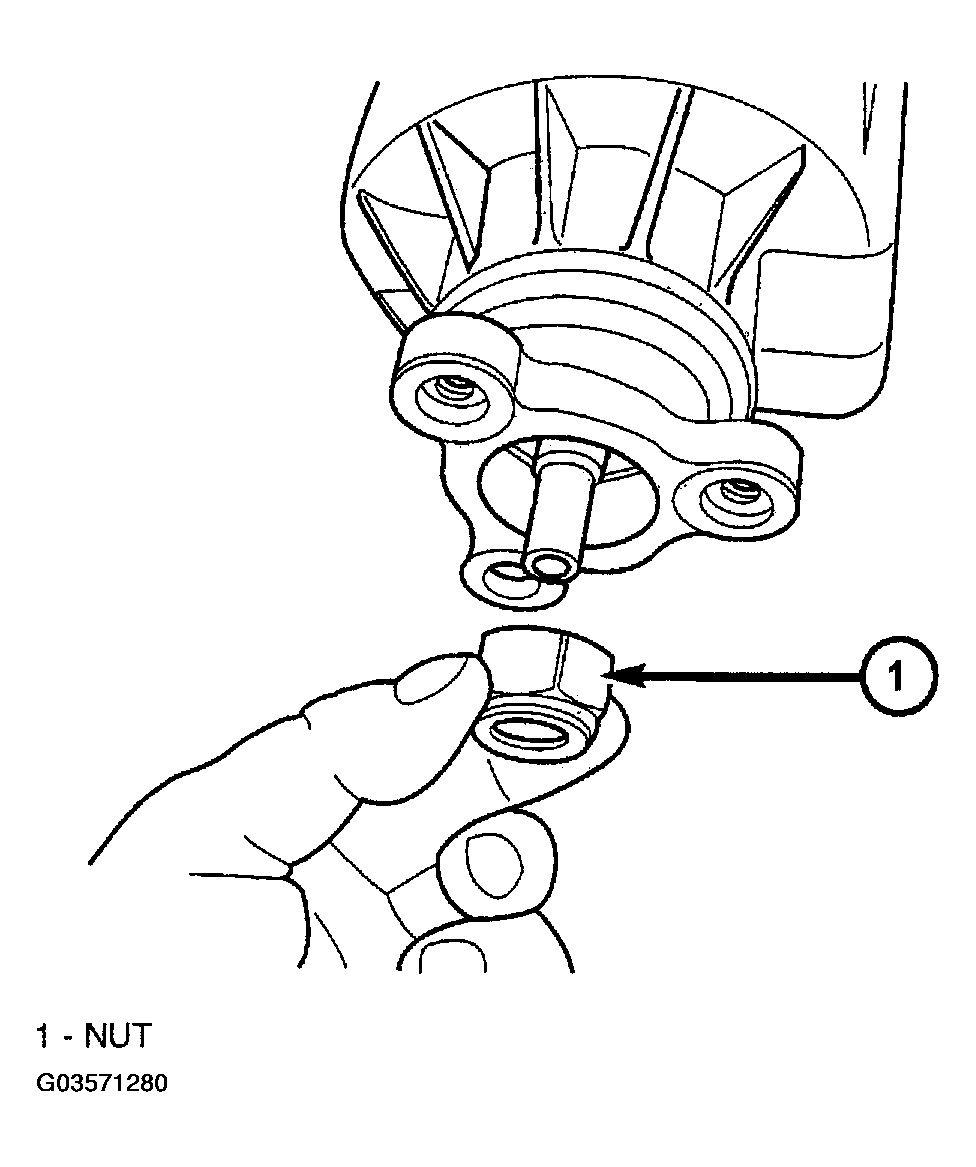

Remove input flange nut (Fig 2 ).

Fig 2: Removing Input Flange Nut
Courtesy of DAIMLERCHRYSLER CORP.

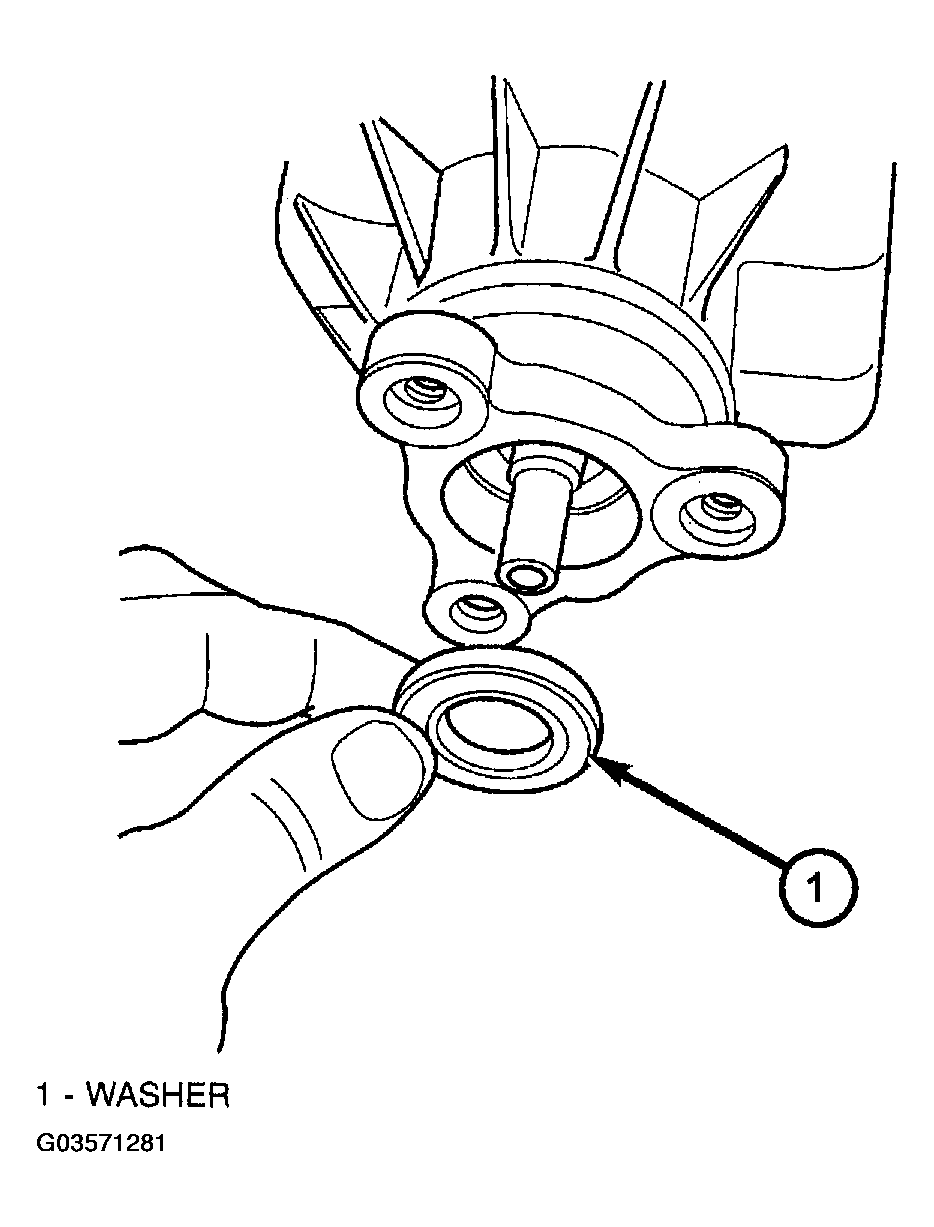

Remove input flange and washer (Fig 3 ) (Fig 4 ).

Fig 3: Removing Input Flange And Washer
Courtesy of DAIMLERCHRYSLER CORP.
