2004 Chrysler Pacifica FWDFACTORY OEM SERVICE PROCEDURE
Fuel Pump Module: Installation
- Install fuel pump module into fuel tank.

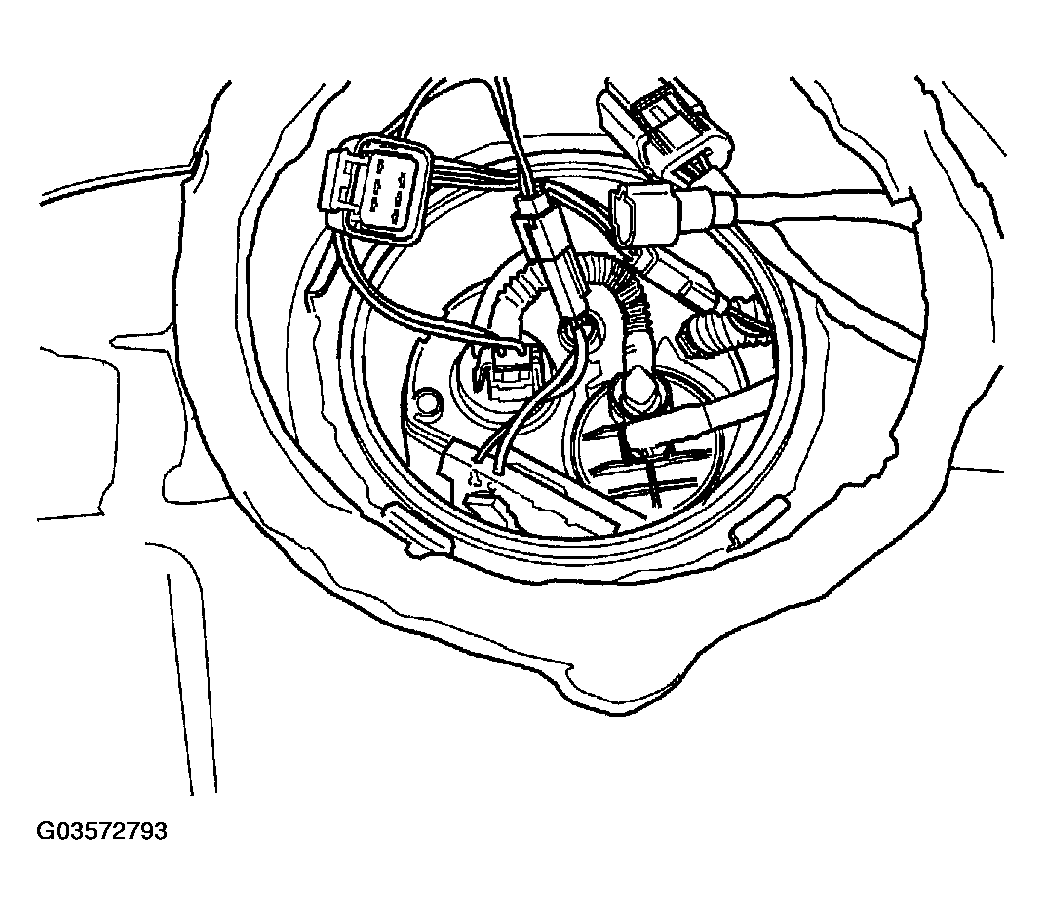

- Connect the siphon and fuel line to the fuel pump module (Fig 1).
- Connect the fuel pump electrical connector to the bottom of the module top (Figure).
- The wire connector to the passenger side level sensor needs to be connected.

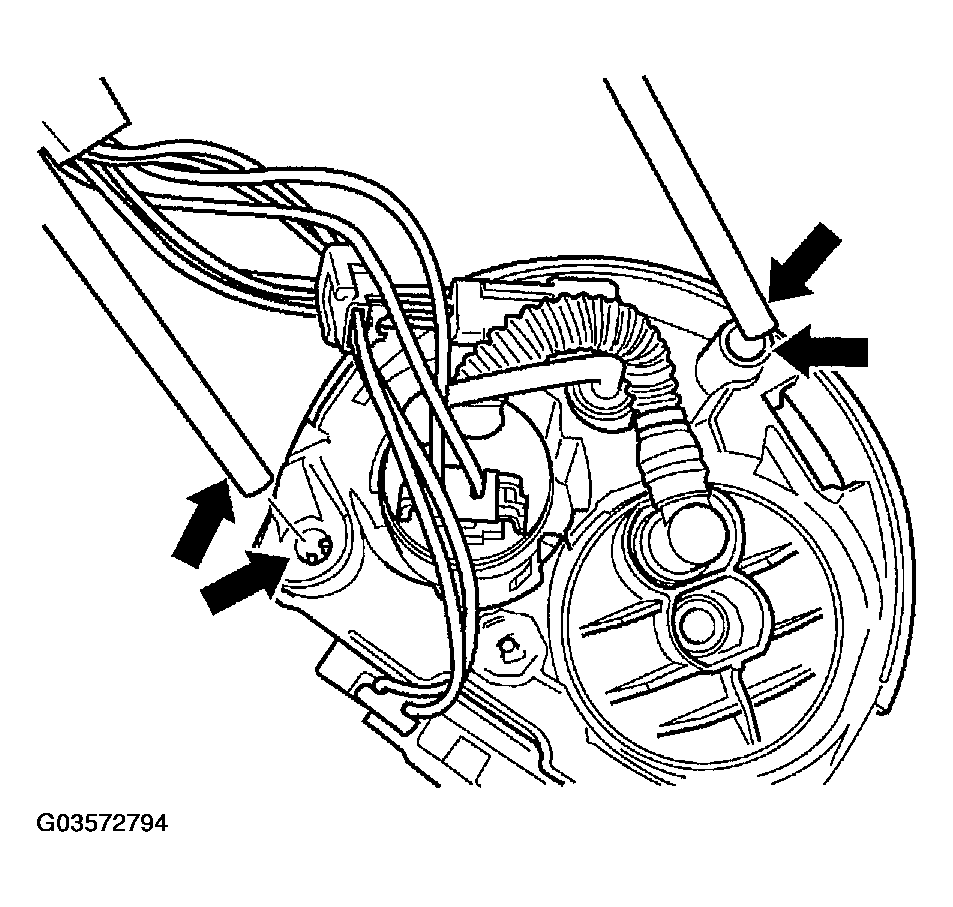

- Install the fuel pump module top to the module (Fig 2) and (Fig 3).
