2004 Chrysler Pacifica FWDFACTORY OEM SERVICE PROCEDURE

Fuel Level Sending Unit/Sensor: Installation

Install the fuel level sending card to module.

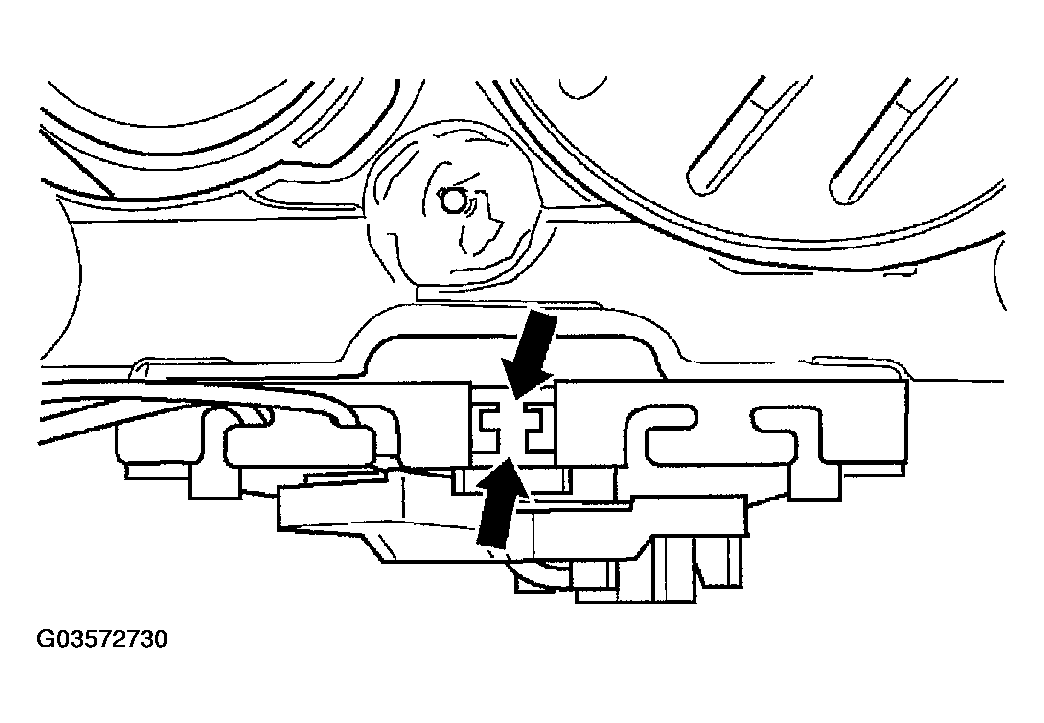

Fig 1: Installing The Fuel Level Sending Card
Courtesy of DAIMLERCHRYSLER CORP.
Connect the electrical connector for the fuel level sending card.

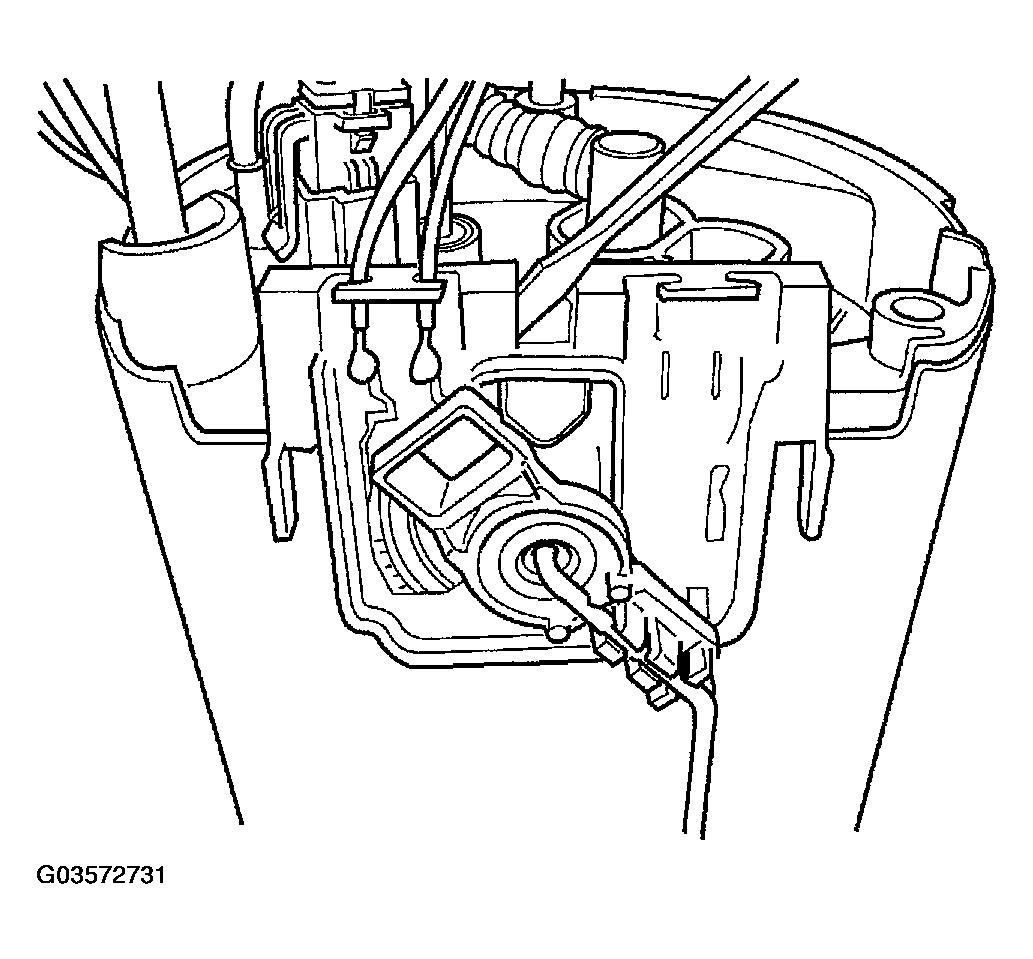

Fig 2: Connecting Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
Install the fuel pump module top to the module (Fig 3) and (Fig 4).

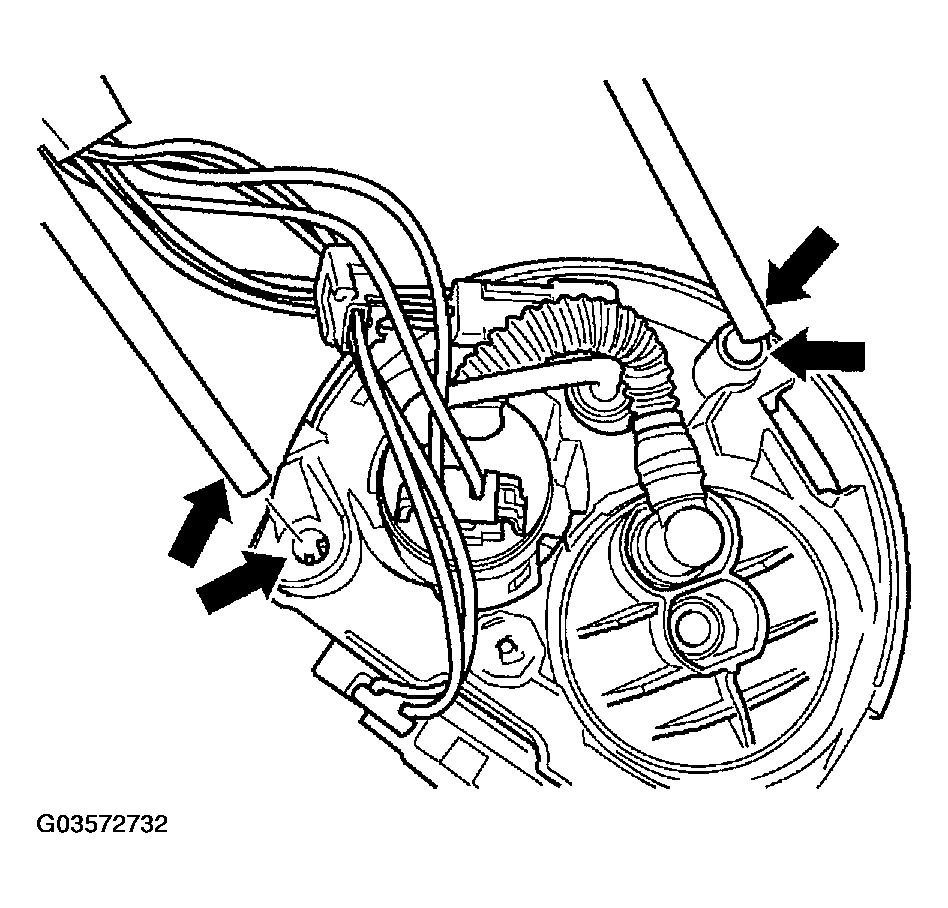

Fig 3: Identifying Module Top Alignment Pins
Courtesy of DAIMLERCHRYSLER CORP.
