2004 Chrysler Pacifica AWDFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Installation
- Install knock sensor. Tighten knock sensor to 10 N.m (88.5 in. lbs.) torque. Over or under tightening effects knock sensor performance, possibly causing improper spark control.

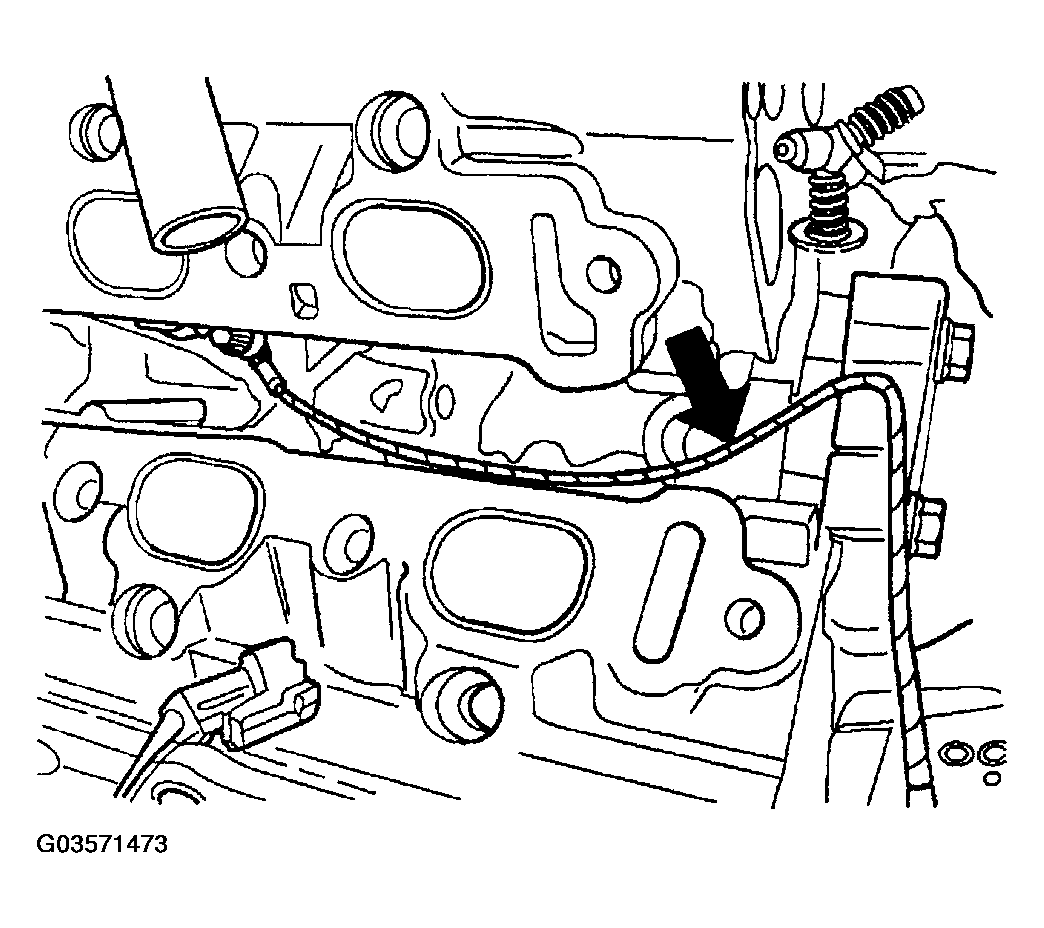

- Route the knock sensor wire in the proper location (Fig 1).
- Install the upper intake manifold, (Refer INTAKE MANIFOLD ).

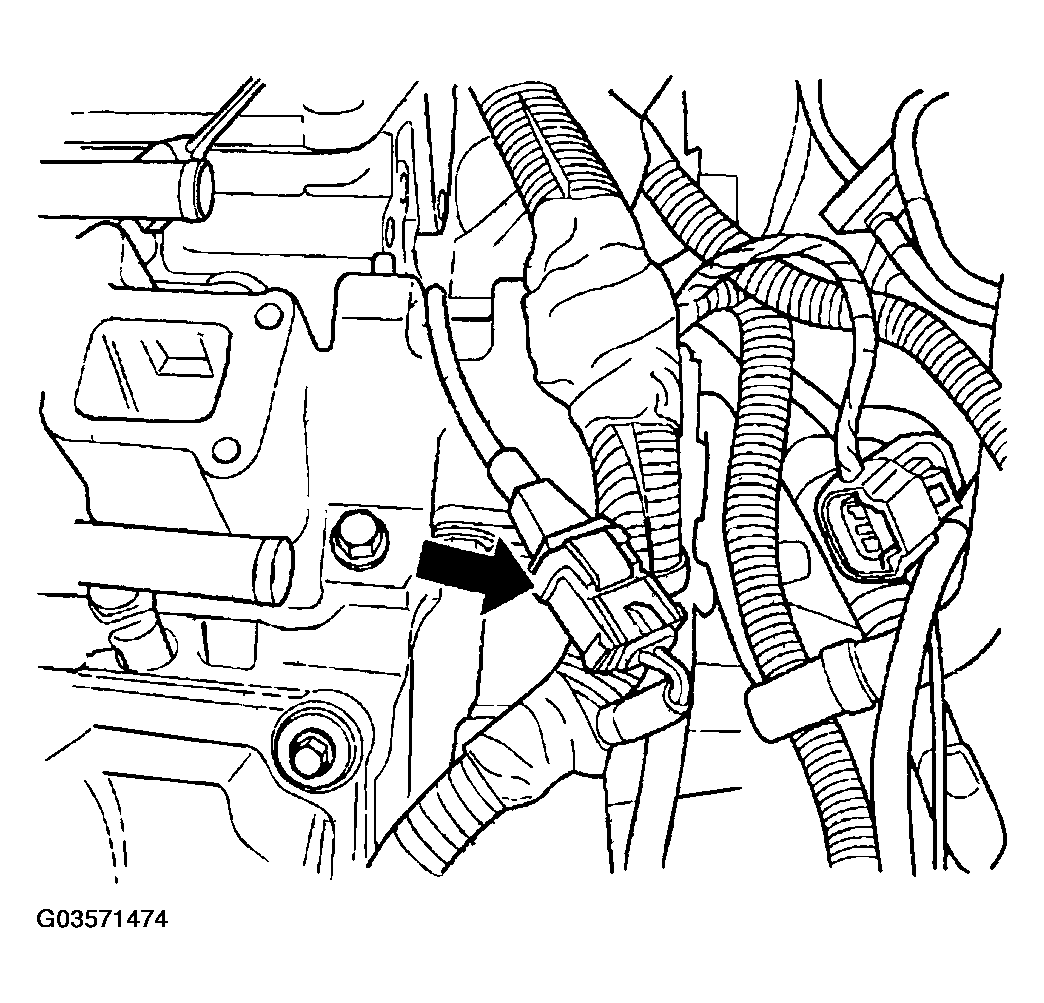

- Connect the electrical connector (Fig 2).
- Connect the negative battery cable.
